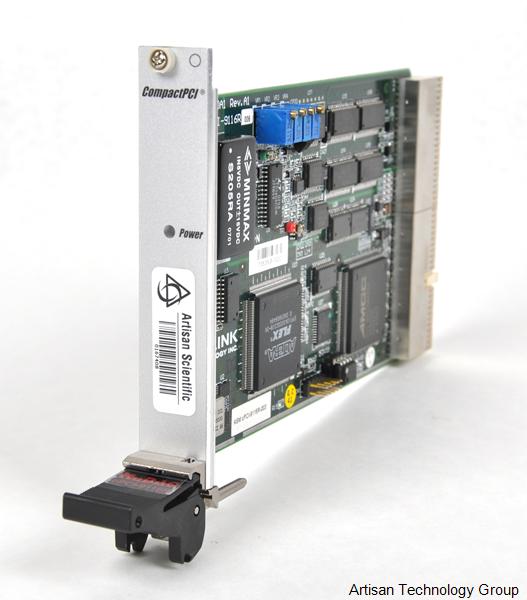

  • Adlink_cPCI9116R_view1

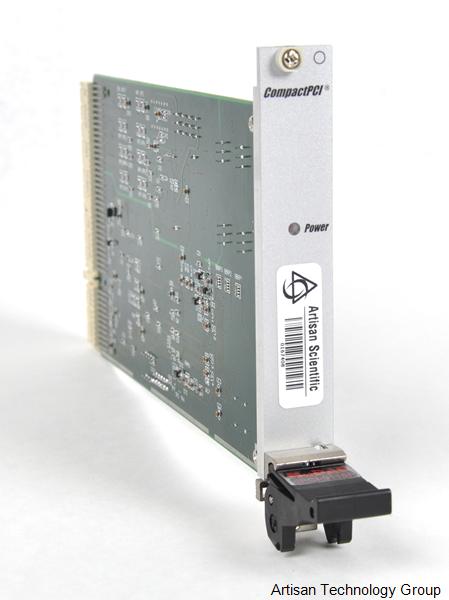

  • Adlink_cPCI9116R_View2

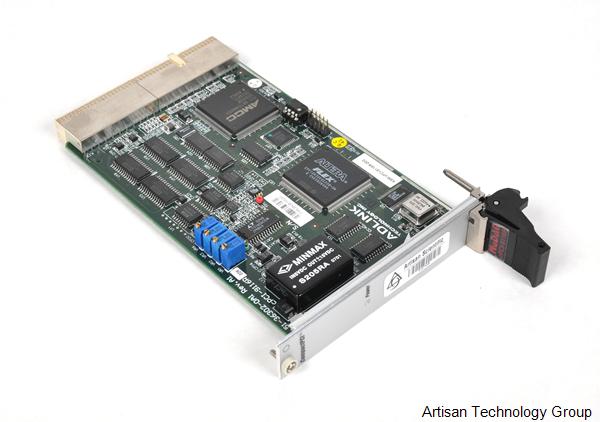

  • Adlink_cPCI9116R_view3

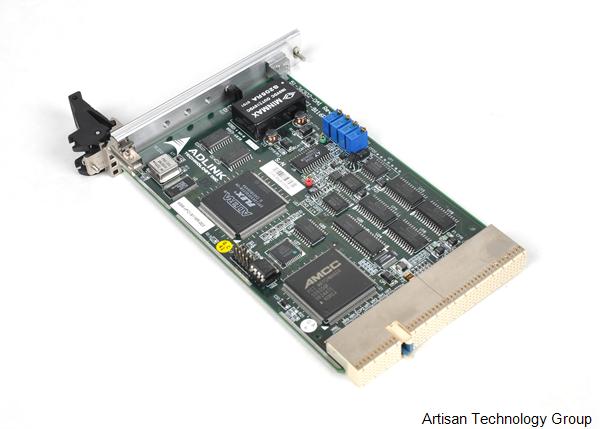

  • Adlink_cPCI9116R_view4

Adlink Technology cPCI-9116/R 64-CH 16-Bit 250kS/s Multi-Function Module

Features

  • PICMG 2.0 Rev 2.1
  • 16-bit A/D and Sampling Rate up to 250kS/s
  • 64-CH Single-Ended or 32-CH Differential Input
  • On-Board 1k-Sample A/D FIFO
  • Programmable Gains of x1, x2, x4, x8
  • 512-Configuration Channel-Gain Queue
  • Bus-Mastering DMA for Analog Inputs
  • Rear I/O Available on cPCI-9116R

View our selection of these items below.




Contact Us
888-88-SOURCE
Customer Service
Email this page
Share:

Adlink Technology cPCI-9116R cPCI-9116R 64-CH 16-Bit 250kS/s Multi-Function Module


This Adlink Technology cPCI-9116/R 64-CH 16-Bit 250kS/s Multi-Function Module with Rear I/O is used and in excellent condition.

Part number: 51-36302-0A1 Rev.A1

Stock # 74408-1



  • Description
  • Tech Specs
  • Datasheets / Manuals
Contact Us
888-88-SOURCE
Email Customer Service
Email this page
Share:

Description

The Adlink Technology cPCI-9116/R 64-CH 16-Bit 250kS/s Multi-Function Module is an advanced data acquisition card based on the 32-bit CompactPCI architecture. The 9116 series DAS cards use state-of-the-art technology making it ideal for data logging and signal analysis applications.

The 9116 Series DAS cards are typically used for the following applications: Automotive Testing, Cable Testing, Transient signal measurement, ATE, Laboratory Automation, and Biotech measurement.

Product Family: cPCI-9116, cPCI 9116, cPCI9116, cPCI-9116R, cPCI 9116R, cPCI9116R, cPCI-9116-R, cPCI 9116-R, cPCI9116-R, cPCI-9116 R, cPCI 9116 R, cPCI9116 R, NuDAQ cPCI-9116R
Contact Us
888-88-SOURCE
Email Customer Service
Email this page
Share:

Specifications

Analog Input (A/D)
Resolution 16-bit
Number of channels: (programmable) 64 single-ended (SE)
32 differential input (DI)
Analog input range: (programmable)Bipolar: 5V, 2.5V, 1.25, 0.625V
Unipolar: 0~10V, 0~5.0V, 0~2.5V, 0~1.25V
Digital Input / Output
Number of channels:8 DI and 8 DO
Signal type:TTL compatible inputs
General Specifications
Connector: 100-pin SCSI-type (AMP-787082-9 or equivalent)
Operating temperature: 0°C ~55°C
Storage temperature: -20°~ 80°C
Humidity: 5 ~ 95%, non-condensing
