Mercury Computer Systems / Echotek ECSG-1RHSCT Low Phase Noise A/D Clock Generators

Features

  • High-Quality Clock Output
  • Generates a Divided Slow Clock Output: High-Speed Clock Divided by 12 to 1024 in Steps of 4
  • Outputs have 50% Duty Cycle
  • External Reference Input to PLL or 10 MHz Onboard Reference
  • Trigger Output Aligned to Clock Rising Edge, Based on an External Trigger Input
  • Programmable Trigger Width: 6 to 512 Clocks Wide in Steps of 2
  • 6U VME or PCI Form Factor
  • PCI interface supports 3.3V and 5V I/O

View our selection of these items below.




Contact Us
888-88-SOURCE
Customer Service
Email this page
Share:

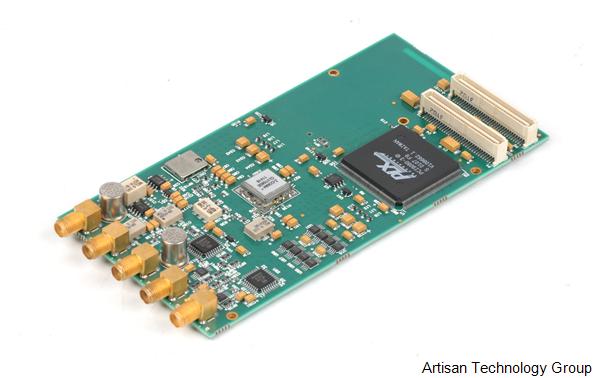

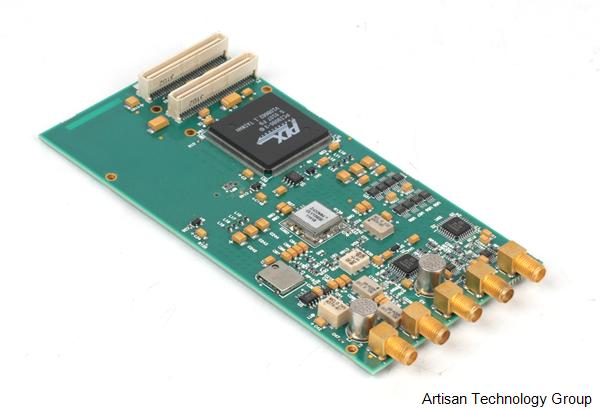

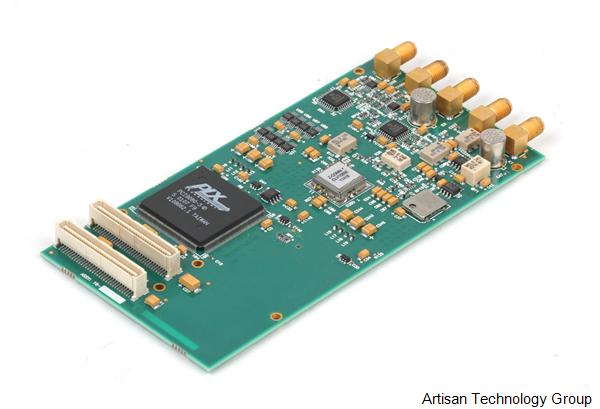

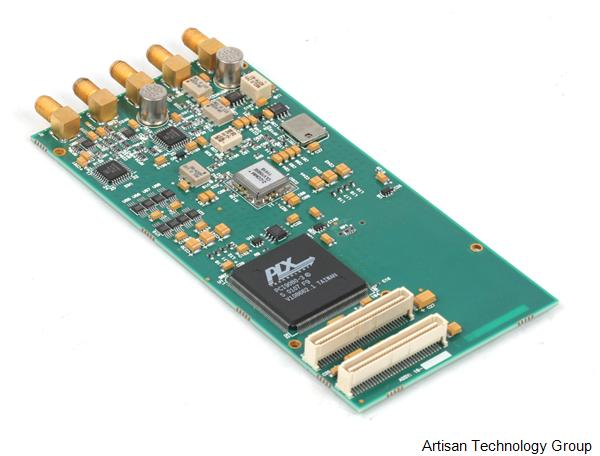

Mercury Computer Systems / Echotek ECSG-1RHSCT Low Phase Noise A/D Clock Generator PMC Module


This Mercury Computer Systems / Echotek ECSG-1RHSCT Low Phase Noise A/D Clock Generator PMC Module is used and in excellent condition.

Stock # 75419-1



  • Description
  • Tech Specs
  • Datasheets / Manuals
Contact Us
888-88-SOURCE
Email Customer Service
Email this page
Share:

Description

The Mercury Computer Systems / Echotek ECSG-1RHSCT Low Phase Noise A/D Clock Generators are one-reference high-speed clock transmitters for distribution to board-level, mixed signal products such as analog-to-digital converters (ADC), digital-to-analog converters (DAC), digital receivers, and digital upconverters. The VME version has five high-speed clock output connectors; the PMC version has two. The clock source is generated using an ADF4113 RF PLL frequency synthesizer driving a voltage-controlled oscillator (VCO). VCOs are available in variable ranges.

Product Family: ECSG-1RHSCT, ECSG-1-RHSCT, ECSG-1 RHSCT, ECSG 1 RHSCT
Contact Us
888-88-SOURCE
Email Customer Service
Email this page
Share:

Specifications
