Description

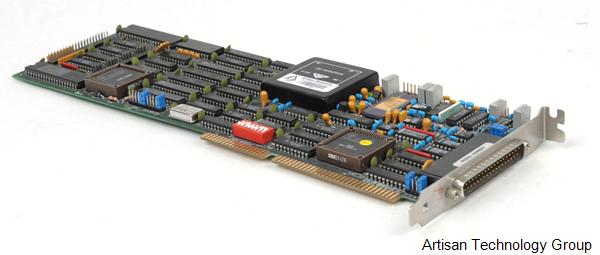

The Measurement Computing / IOtech DaqBoard 100 / 200 Series ISA-bus plug-in boards provide the widest selection of signal conditioning, signal expansion, and software support of any available PC-based data acquisition system. Every DaqBoard model features an on-board 512-location sequencer that lets you select any channel and gain combination and configure each channel for unipolar/bipolar operation as your application requires. The DaqBoards can scan channels at 10 µs/channel, and repeat a sequence at intervals from 0 seconds to nearly 12 hours. Optional simultaneous sample and hold cards enable the DaqBoards to sample up to 256 channels at the same instant. Unlike many PC-based data acquisition products, our DaqBoards meet their scanning and timing specifications even when connected to a full complement of signal conditioning and expansion boards or modules. The DaqBoards measure signals from expansion channels— including per-channel gain switching— at their 10 µs/channel maximum rate. This enables a DaqBoard system to scan different types of transducers, from thermocouples to strain gages, within the same scan group without software intervention. The DaqBoards support three data transfer modes—DMA, interrupt-driven, and REP INSW—permitting continuous realtime data collection at 100 Kreadings/s. The DaqBoards’ broad-ranging software support offers you the solution that best suits your application. Specifically, the DaqBoards include three categories of software support: graphical Windows® set up and acquisition programs; programming language drivers and custom controls; and drivers for icon-driven, Windows®- based software packages. In contrast, many vendors charge extra for language and third-party software drivers.
Product Family: DaqBoard/100, DaqBoard/200, DaqBoard/112A, DaqBoard/216A, DaqBoard/100A, DaqBoard/200A, DaqBoard100, DaqBoard200
