Description

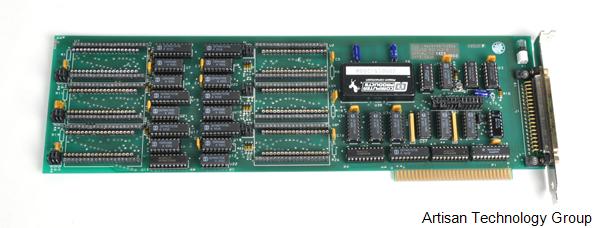

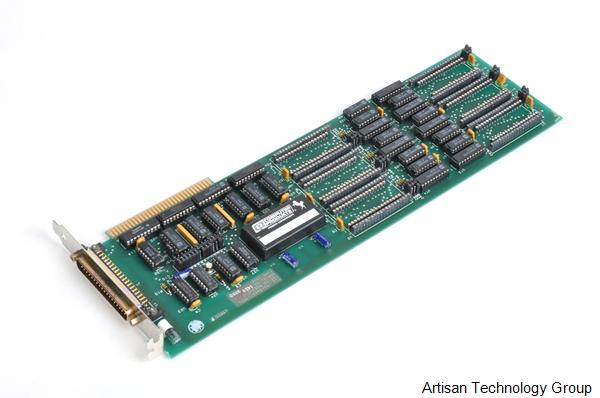

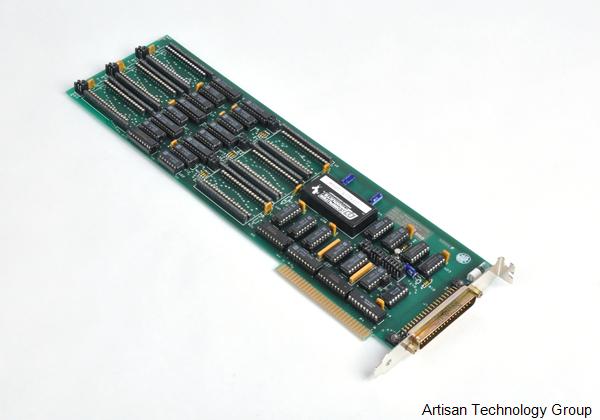

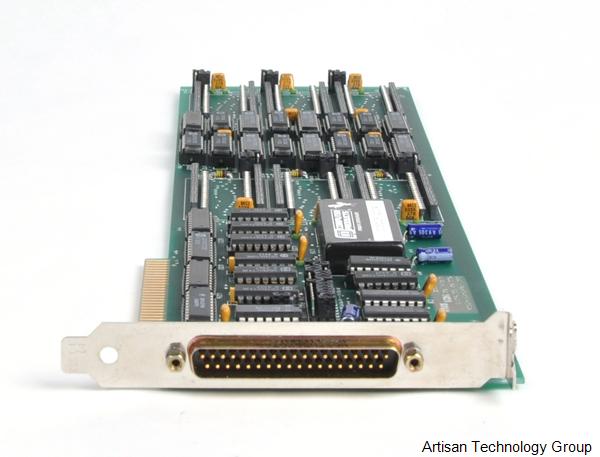

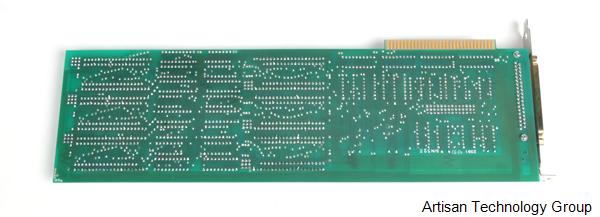

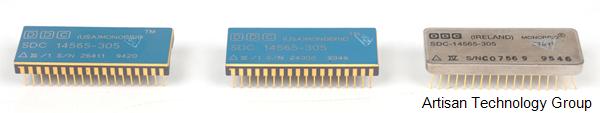

The DDC SDC-36015 is a versatile, full-size IBM PC® card designed for one to six channels of resolver-to-digital or synchro-to-digital conversion. The SDC-36015 uses the RDC-19200 Series (for resolver inputs), the SDC- 19204 Series (for synchro inputs), or the SDC-14560 Series hybrid converters. The converters feature jumper-programmable resolution (10, 12, 14 or 16 bits), programmable high or low bandwidth, and a high quality velocityoutput voltage (VEL). Output angle information is provided in two 8-bit bytes to the computer. All information generated by the SDC- 36015 is l/O mapped in four RAM locations and is available to the computer with a read command. This includes digital angle, 4-bits of turns counting, Built-ln-Test (BIT), and Loss-of-Signal (LOS) information for each channel. Software that is available on request includes drivers in “C,” Pascal, Lab-Windows, LabWindows/CVI, and LabVIEW.
With programmable resolution and high accuracy, the SDC-36015 is an excellent choice for applications including motor control antenna positioning, CNC machine tooling, robot axis control and process control.
Product Family: SDC36015, SDC 36015, SDC-36015, SDC
