Description

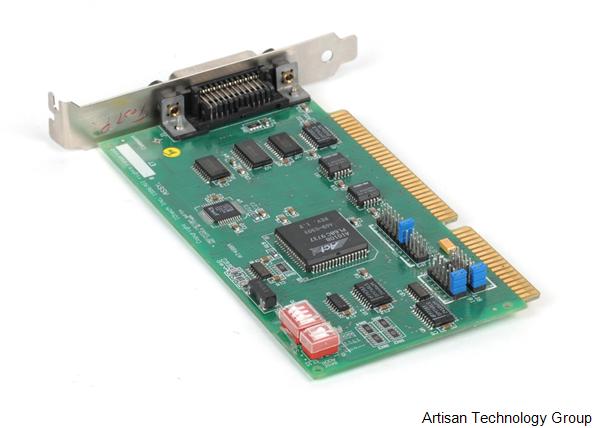

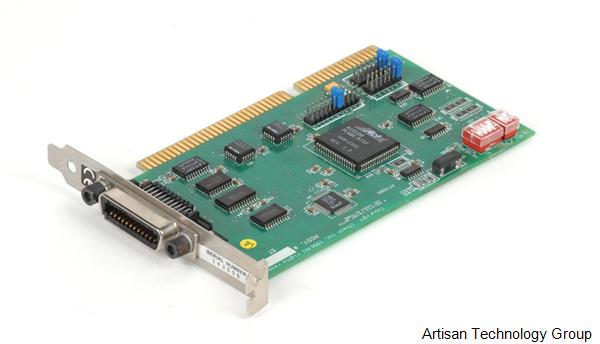

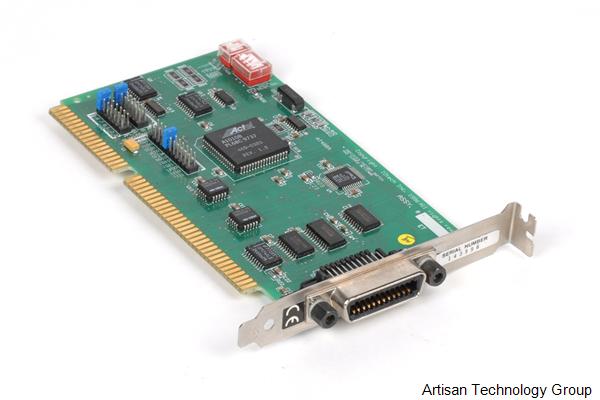

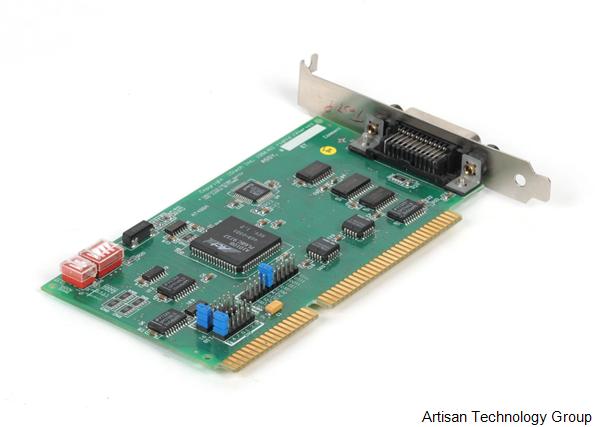

The Measurement Computing / IOtech Personal488 / ATpnp GP488B IEEE 488 Controller Board with Plug and Play is a plug-and-play
version of IOtech’s popular Personal488/AT
IEEE 488.2 controller board. The
Personal488/ATpnp converts your PC/AT
into a high performance IEEE 488.2-compliant
controller, while providing the convenience
of plug-and-play installation and
jumperless configuration. For example, if
the Personal488/ATpnp is operated under
Windows 95/98, system resources such as
base address, DMA channel, and interrupts
are automatically allocated during your PC’s
start-up. The Personal488/ATpnp consists
of an IEEE 488.2 half-slot interface board
and Windows driver—which are fully and
independently documented, ensuring easy
start-up and usability.
The Personal488/ATpnp provides eight TTL
digital I/O lines, arranged in two four-bit
groups; each group can be individually programmed
as inputs or outputs. These eight
lines are accessible via a ribbon cable
equipped with a 9-pin female D-shell connector.
In addition, the Personal488/ATpnp
can synchronize the IEEE 488 Group Execute
Trigger with digital signal states
generated by external events.
Product Family: AT488A, AT-448A, AT488-A, ATpnp, AT-pnp
