Veeco / Wyko NT1100 Optical Profiler
This Veeco / Wyko NT1100 Optical Profiler is used and in excellent condition.

System Includes:

• Profiler
(...)
• Illuminator control unit
• PC
• Vision 32 Version 2.303 Installed
• Monitor
• Keyboard and mouse
• All necessary cables

Profiler Includes:

• Light source: Tungsten halogen lamp
• Objectives: 20X and 50X
• Video display: monochrome monitor
• Stages: Manual Z stage; X/Y translation

Our technicians fully tested this unit. Here are some software screen captures as well as some data scans/tests that were run: Screen Captures (pdf).

Thermo / Kevex 130021-00 Spectrometer Control VME Module
This Thermo / Kevex 130021-00 Spectrometer Control VME Module is used and in excellent condition.

Veeco / Wyko RST-Plus Rough Surface Tester Optical Profilometer
This Wyko Rough Surface Tester RST-Plus Optical Profilometer is used and in excellent condition. This unit includes: Microscope, Support Stage, Control Boxes, Vibration Isolation Table, Computer,(...) Color Display, Video Monitor, Printer, Joystick, Mouse, and Keyboard.

Computer Configuration:
Processor: Pentium 90 MHz
HDD: 1.24 GB
Memory: 32 MB
OS: Windows 95
Software Installed: Wyko Vision Plus v1.8

Available Filter Settings:
LoMag 0.0 nm
LoMag 650.8 nm
LoMag Clear
HiMag 660.0 nm
HiMag Clear

Monitors Dimensions:
36" W x 59" H x 36" D (91.4cm W x 149.86cm H x 91.4cm D)
Scope Dimensions:
32" W x 59" H x 36" D (81.28cm W x 149.86cm H x 91.4cm D)

Our technicians fully tested this unit. Here are some software screen captures as well as some data scans/tests that were run: Screen Captures (pdf).

Zygo ZMI-4004 4-Axis VME64x Measurement Board
This Zygo ZMI-4004 4-Axis VME64x Measurement Board is new from surplus stock.

Part Number: 8020-0500-01

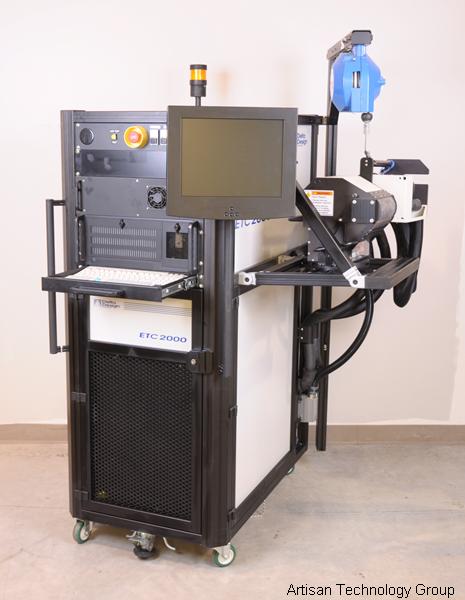

Delta Design ETC 2000L High Performance Logic IC Thermal Characterization Unit
Before installing and operating this unit, the coolant lines will need to be completely flushed. In order for unit to operate correctly through the full temperature range, 3M Novec HFE7500(...) Engineered Fluid needs to be installed. This unit comes with a quick-connect air hose.

The environmental chamber has an application specific thermal unit installed. The thermal unit or tool is the part that makes contact with the Device Under Test, and applies the change in temperature. The tool may need to be changed according to the specific test being performed. View Photo of the tool installed in the environmental chamber.

Configuration:
• Input: 190-230 VAC
• Frequency: 50-60 Hz
• Phase: 3
• Interrupt Current: 65,000 AIC
• Largest Load Ampere Rating: 33 A
• Machine Main Breaker Ampere Rating: 50 A
• Full Load Amps: 40 A
• Temperature Range (Passive): -30°C to +150°C
• Temperature Ramp Rate: 100°C Per Second
• ESD: <100 V within 6" of device
• Communication Interface: GPIB and RS232
• Air: 80 psi, 2-3 scfm, clean, dry dewpoint 15°C below coldest chiller setpoint
• Weight: 340 kgs (750 lbs)
• Dimensions: 25.4W x 42D x 63H inches (0.65m x 1.08m x 1.62m)
• Chiller: Affinity PAG-040K-BE51CBD2 Installed*
Optional Delta Design Power Summing Module Installed
• Passive Model Version

Computer:
• 700 MHz Intel PIII Processor
• 256 MB RAM
• 18 GB HDD
• ETC-2000 Software v2.2.1

*If desired, the Affinity PAG-040K-BE51CBD2 Chiller can be sold individually. Please contact us for pricing and availability.

View Photo of the interior with front door open.

View Photo of the interior with right hand side door open.

View Photo of the interior with left hand side door open.

View Photo of the interior with back door open.

View Photo of the back door.

BEI LA40-59-009Z Voice Coil Actuator
This was a custom configured VCA for the Kulicke & Soffa 9388 LaserPro.
MicroVision MVT 7080 Wafer Sorter
This MicroVision MVT 7080 Wafer Sorter is a parts unit and is being sold as is. The unit is incomplete. It has been priced accordingly. We do not have the expertise to fully test this unit and have(...) documented all the information gathered from it in this page.

MVT 7080 Configuration:
Holds up to (4) Cassettes
Cassettes Not Included
PC Controller Not Included

View Photo of the top surface of the unit.

Input Voltage: 110 V
Input Frequency: 60 Hz

Lumetrics DI-340 OptiGauge Precision Thickness Measurement System
Included Components:
• DI-340 Controller and Computer
• LG E2242TA Monitor
• Lumetrics 50mm Probe
(...)
• Lumetrics Verification Probe w/ F1VS200F2.5 Fiber Optic Microscope and Accessories
• Probe Stand and Accessories
• National Instruments SH68-68-EPM Cable, 2 Meters
• Power Cables for Computer, Controller, and Monitor

TMS 63E-563 Micro-g Vibration Lab Table:
• BreadBoard: 36" x 48" (LxW) CleanTop II
• CleanTop II Thickness: 4"
• Screw Type: 1/4-20, 1" Spacing
• Stabilizers: Gimbal Piston Air Isolators

Configuration:
• Operating System: Windows XP Professional, Ver. 5.01.2600
• Processor: (4) Intel Core i5-2400, 3.10 GHz
• Physical Memory: 3.17 GB RAM

Lumetrics Software and Version:
• OptiGauge Control Center: 6.2.0

National Instruments Software and Versions:
• CVI Run-Time: 8.1.1.361
• NI-DAQmx: 8.7.1f3
• IVI Compliance Package: 3.1
• LabVIEW Run-Time: 7.1
• Measurement & Automation Explorer: 4.4.1.49152
• NI-USI: 1.0.2
• NI-PAL Software: 2.2.0
• NI LabVIEW SignalExpress: 2.5.1
• NI-VISA: 4.2
• NI-VISA Runtime: 4.2
• LabVIEW Run-Time: 8.0.1
• LabVIEW Run-Time: 8.2.1
• LabVIEW Run-Time: 8.5.0

Part Number: 10000-00

View Photo of 50mm probe.

View Photo of verification probe w/ accessories.

View Photo of probe stand and accessories.

Our technicians fully tested this unit. Here are some software screen captures as well as some data scans/tests that were run: Screen Captures (pdf).

Zygo 8020 ZMI-1000A Displacement Measuring Interferometer System VME Position Board
This Zygo 8020 ZMI-1000A Displacement Measuring Interferometer System VME Position Board is used and in excellent condition.

Part Number: 8020-0206-01, 8020-0206-01-J

Zygo 8030 ZMI-1000 Displacement Measuring Interferometer System VME Position Board
This Zygo 8030 ZMI-1000 Displacement Measuring Interferometer System VME Position Board is used and in excellent condition.

Part Number: 8030-0200

Inficon XTM Thin Film Deposition Monitor
This Inficon XTM Thin Film Deposition Monitor is used and in excellent condition. This unit includes a D/A cable.
Delta Design ETC 2000L High Performance Logic IC Thermal Characterization Unit
Before installing and operating this unit, the coolant lines will need to be completely flushed. In order for unit to operate correctly through the full temperature range, 3M Novec HFE7500(...) Engineered Fluid needs to be installed. This unit comes with a quick-connect air hose.

The environmental chamber has an application specific thermal unit installed. The thermal unit or tool is the part that makes contact with the Device Under Test, and applies the change in temperature. This unit does not have a thermal unit installed.

Configuration:
• Input: 190-230 VAC
• Frequency: 50-60 Hz
• Phase: 3
• Interrupt Current: 65,000 AIC
• Largest Load Ampere Rating: 33 A
• Machine Main Breaker Ampere Rating: 50 A
• Full Load Amps: 40 A
• Temperature Range (Passive): -30°C to +150°C
• Temperature Ramp Rate: 100°C Per Second
• ESD: <100 V within 6" of device
• Communication Interface: GPIB and RS232
• Air: 80 psi, 2-3 scfm, clean, dry dewpoint 15°C below coldest chiller setpoint
• Weight: 340 kgs (750 lbs)
• Dimensions: 25.4W x 42D x 63H inches (0.65m x 1.08m x 1.62m)
• Chiller: Affinity PAG-040K-BE51CBD2 Installed*
• Passive Model Version

Computer:
• 700 MHz Intel PIII Processor
• 256 MB RAM
• 10 GB HDD
• ETC-2000 Software v2.2.1

*If desired, the Affinity PAG-040K-BE51CBD2 Chiller can be sold individually. Please contact us for pricing and availability.

View Photo of the interior with front door open.

View Photo of the interior with right hand side door open.

View Photo of the interior with left hand side door open.

View Photo of the interior with back door open.

View Photo of the back door.

Kevex 952-102 Omicron X-Ray Fluorescence Spectrometer
This Kevex 952-102 Omicron X-Ray Fluorescence Spectrometer is used and in excellent condition. This unit was decommissioned from a production facility. A very good effort was made to retain(...) accessories. A 50W source is installed. This unit will need some additional accessories to become complete: keyboard, mouse, monitor, PC to Kevex connection cable, etc.

Included Accessories: PC, X-Ray Warning Lamp, Serial and Power Cabling, Safety Gloves and Piping

Photos of Accessories: Photo 1 and Photo 2

PC Hardware and Software Info:
• Pentium II MMX, 333 mHz
• 64 MB RAM, 6 GB HDD
• Ultra Link Model 118 ISA Card
• Windows 98
• Omincon v2.21
• Kevex XRF Monitor v7.0
• Kevex SDP (Spectrum Display Panel) v2.1
• Kevex VideoApp v1.0
• Kevex WinXRF v2.21

Input Voltage: 120 VAC Only
