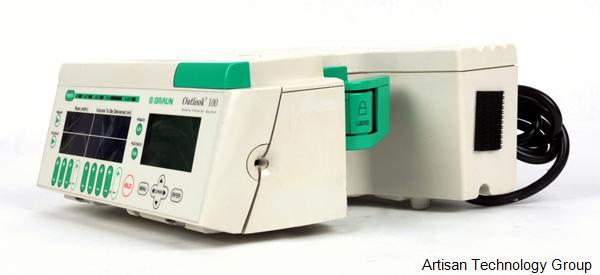

B.Braun / McGaw Outlook 100 Safety Infusion System

B.Braun / McGaw Outlook 100 Safety Infusion System

This B.Braun / McMaw Outlook 100 Safety Infusion System is used and in excellent condition.

Part Number: 620-100

Have a quote from somewhere else? Click Here
Stock # 77423-3
Quick Quote
Sell Yours
Repair Quote
  • More Info
  • Tech Specs
  • Additional Photos
  • Datasheets / Manuals
  • View It Live Request
Contact Us
B.Braun / McGaw Outlook 100 Safety Infusion System

  • Uses Audible and Visual Alerts to Avoid Accidental Under or Overdosing
  • Visually Indicates Dose Selection with DoseGuard Software
  • Reduce Nuisance Air-in-Line Alarms with Air-Trapping Cassette
  • Stackable Modular Design Reduces Bedside Cord Clutter and Errors Due to Channel Confusion


The B.Braun / McGaw Outlook 100 Safety Infusion System regulates the flow of primary and secondary fluids when positive pressure is required. The infusion system is capable to delivering fluid from a negative head height and provides clinically accepted volumetric accuracy for all standard IV fluids, including blood,lipids and Total Parenteral Nutrition (TPN).

Product Family: Outlook 100, Outlook, Outlook100

Important Notice: Please note that any additional items included with this equipment such as accessories, manuals, cables, calibration data, software, etc. are specifically listed in the above stock item description and/or displayed in the photos of the equipment. Please contact one of our Customer Support Specialists if you have any questions about what is included with this equipment or if you require any additional information.

Contact Us


Mechanism: Volumetric Positive Pressure Displacement Reservoir
Width 30.5 cm (12 in)
Height 11.4 cm (4.5 in)
Depth 22.2 cm (8.75 in)
Weight 5 kg (11 lbs)
Power 120 VAC, 3A, 60 Hz USA excluding accessories
Battery 12 V sealed lead-acid battery
Battery Operating Time 3 hours at 125 mL/hr
Volume to be Infused Range 0.1 to 9999.9 mL in 0.1 mL increments
Variable Occlusion Pressure 75, 100, 200, 300, 400, 500, and 750 mmHg
KVO Rate 3 mL/hr or selected rate whichever is lower
Alarms Air-in-Line, Bag Empty, Door Open, Downstream Occlusion, Hold time Exceeded, Low Battery, Plug-in, System Error, Upstream Occlusion, Check Set, DoseGuard™ Alert
Memory Permanent data retention after the pump is turned off unless alternative Data Retention Defaults have been selected in the Biomed Options
Tubing Horizon® Pump Sets
Modes/Features Dose Mode with Drug Menu and DoseGuard™ dose limits, Primary and Piggyback Modes, Set Time and Volume, Schedule Next Run, Profile Mode for TPN, Program Mode, q(x) Mode, Site Trend, Variable Occlusion Pressure, Micro Mode, Epidural Mode

Contact Us

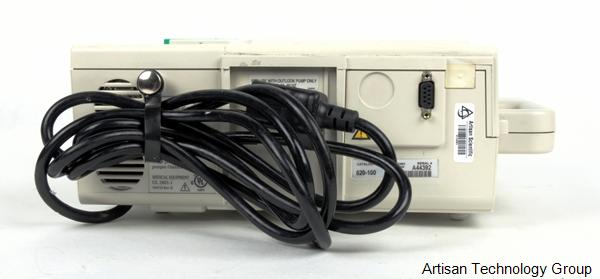

Item Images

Click a thumbnail to view larger image:

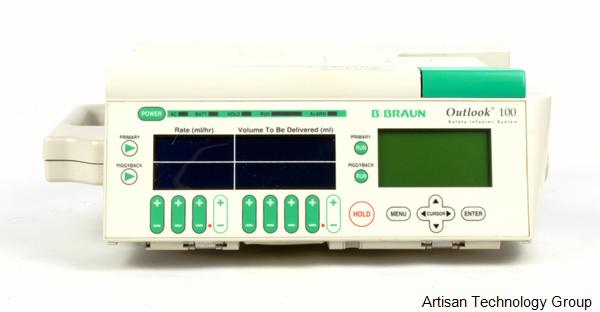

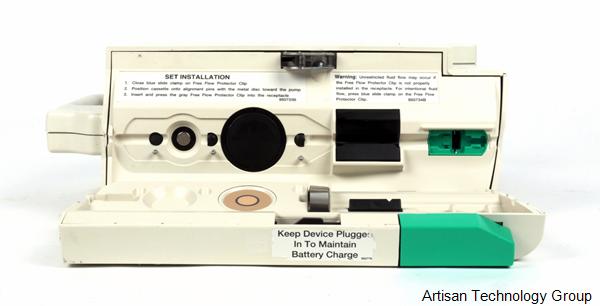

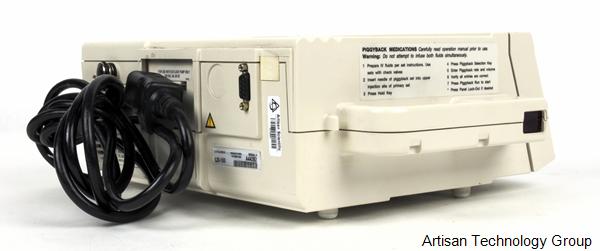

B.Braun / McGaw Outlook 100 Safety Infusion SystemB.Braun / McGaw Outlook 100 Safety Infusion SystemB.Braun / McGaw Outlook 100 Safety Infusion System
