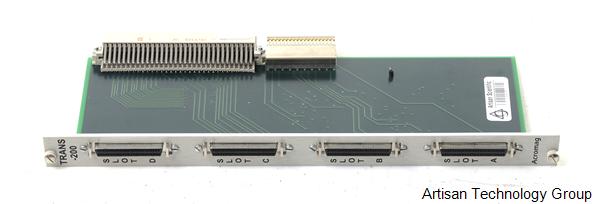

  • acromag_trans200_view1

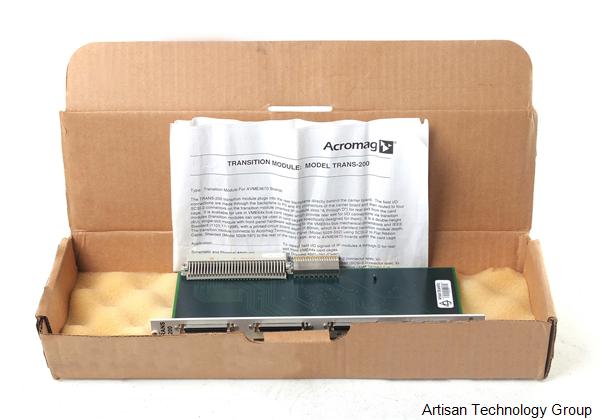

  • acromag_trans200_view2

Acromag TRANS-200 Transition Module

Features

  • 6U VME64 Module
  • 200 I/O Points to four 50-pin SCSI-2 Connections

View our selection of these items below.


Have a quote from somewhere else? Click Here




Contact Us
Share:


  • Description
  • Tech Specs
  • Datasheets / Manuals
Contact Us
Share:

Description

The Acromag TRANS-200 Transition Module plugs into the rear backplane directly behind the carrier board. The field I/O connections are made through the backplane to P0 and P2 connectors of the carrier board and then routed to four SCSI-2 connectors on the transition module (marked IP module slots "A through D") for the rear exit from the card cage. It's available for use in VME64x bus card cages which provide rear exit for I/O connections via transition modules (transition modules can only be used in card cages specifically designed for them). It is a double height (6U) , single-slot module with front panel hardware adhering to the VME64x bus mechanical dimensions and IEEE Standard (1101.11-1998), with a printed circuit board depth of 80mm, which is a standard transition module depth. The transition module connects to a Acromag Termination Panel (Model 5052-552) using a SCSI-2 to Flat Ribbon Cable, Shielded (Model 5028-187) to the rear of the card cage and AVME9670 boards withing the card cage.

Product Family: TRANS-200, TRANS 200, TRANS200
Contact Us
Share:

Specifications

Contact Us
Share:

Resources

Manuals, Datasheets, Drivers, Links

Acromag TRANS-200 Schematic (pdf)
Acromag Accessory Datasheet (pdf)
Link to Acromag Website
