Newport 505AN Laser Diode Driver with Analog Interface
Configuration:
• Output Current Range (mA): 0 to 200, 0 to 500
• Set-Point Resolutions (mA): 0.020, 0.050
...
• Range (mA): 0 to 200, 0 to 500
• Accuracy (mA): ±0.5 and ±0.5

Thorlabs / Profile ITC8102DS15 LD and TEC Controller
This Thorlabs / Profile ITC8102DS15 LD &TEC Controller is used, and in excellent condition. It is the newer 16-bit version of the hardware. Laser Current Ranges: ±1 A, TEC Cooling Power: ±2 A /... 16 W.

The cards of the ITC8102 series allow space-saving simultaneous current and temperature control for a laser diode. There are three different current ranges, combined with a temperature controller for a thermoelectric cooler (TEC). The cards provide excellent performance with regard to laser current noise and drift as well as temperature stability. The laser diodes can be operated either in constant current (CC) or constant power (CP) mode. Besides standard protection features such as interlock an advanced circuit ensures that transients, e.g. from RF pick ups, can not affect the laser current. When powered on, a softstart function slowly increases the laser current without spikes or overshoots. The temperature window protection switches the laser diode current off if the controlled temperature of the chip falls outside a preset temperature window. Damage to the TE cooler is prevented by an adjustable limit of the maximum allowed TEC current. The ITC8102 cards operate with thermistors and with IC sensor chips AD590, AD592, LM335.

OMRON 3Z4M-J1001-901 Laser Displacement Sensor and Controller with Cable
This OMRON 3Z4M-J1001-901 Laser Displacement Sensor and Controller with Cable is used and in excellent condition.

Includes:
• 3Z4M-S01 Unit
• XM2S-09 Cable
Wavelength Electronics MPT-2500 Temperature Controller
Configuration:
• Bipolar Output Current: ± 2.5A
• Maximum Output Power: 60W
• Maximum Internal Power Dissipation: 15W
...
• Current Limit Range: 0 - 2500 mA
Newport / ILX Lightwave LDC-3742 Laser Diode Controller
Remote GPIB communication is not installed in this unit.
Newport 8016 High-Density Laser Diode Controller w/ (16) 8610.16C Modules
This unit has (16) 8610.16C Combo LDD/TEC modules installed and a rack-mount chassis.

8610.16C
• LDD Output Current Range: 0-1000 mA
...
• Typical TEC Output Power: 8 W
• 4.0 Vcomp Compatible

Newport 525 Laser Diode Driver
This Newport 525 Laser Diode Driver is used and in excellent condition.

Configuration:
...
• Output Current Range (mA): 0 to 1000, 0 to 2500
• Set-Point Resolutions (mA): 0.100 and 0.250
• Range (mA): 0 to 999.9, 0 to 2500
• Accuracy (mA): ±1 and ±3

Newport 8000 Modular Controller with (4) 8505 LDD Cards
We have a library of firmwares, if a certain version is required please contact us.

8505

• LDD Output Current: 500mA
Newport Custom Laser Diode Burn-In Rack System, 256-Channel, CoS Package Type
This Newport Custom Laser Diode Burn-In Rack System, 256-Channel, CoS Package Type is used and in excellent condition. The laptop computer and the Newport Laser Control System Software are sold... separately.

Dimensions (L x W x H): 31.5 x 23.5 x 76 in

Rack System:
• 38U Rack
• (16) Laser Diode Drawers With (16) Si Photodiode Detectors
• (4) Newport Model 9016 v2.28G With (16) 8515Q LDD Modules
• (2) Newport Model 9008 v2.25D With (8) 8375 TEC Modules
• (2) Agilent 34970A With (2) Plug-In 34908A Modules
• APC 5000 Smart-UPS: Battery Condition is unknown. It is highly recommended that customer replaced the batteries.

View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer
View Photo of Modular, Removable Drawer Photodiodes
View Photo of Modular, Removable Drawer Photodiodes
View Photo of Modular, Removable Drawer Photodiodes

Newport's Laser Diode Burn-In Rack System houses 256 channels in one 38U rack. The rack contains control and measurement electronics, test fixtures, and uninterruptible power supply (UPS).

The (64) Quad Output 8515Q Laser Diode Driver (LDD) modules in the (4) Newport 9016 Modular Controllers provide 256-Channels @ 1.5 A of current and a compliance voltage of up to 5 V. Both Constant Power (APC) and Constant Current (ACC) modes are available. Constant power mode operation utilizes a large area silicon photodiode, which is part of the test fixture. Forward current, forward voltage, and optical power are all measured at a resolution of 16-bits.

The (8) 8375 TEC modules in the (2) Newport 9008 Modular Controllers provide up to 7.5 A of current and power up to 60 W. The compliance voltage is 8 V. The temperature of each laser diode is measured and recorded for increased temperature accuracy.

Newport's Modular Drawer Interface makes interchanging devices fast and effortless. These Modular Drawer laser diode fixtures can be designed to work with any package needed by the user. Newport can be contacted regarding purchasing new drawers to interface to this system, or a custom fixture can be designed by the end-user interfacing to the standard D-sub connectors. On the back side of each Drawer, there are (4) 26-pin and (2) 15-pin D-sub connectors. Of these, (4) connect to eight Quad 8515Q Laser Diode Driver Modules in the Model 9016 chassis (to drive the laser diodes), (1) connects to an 8375 TEC Driver Module in the Model 9008 chassis (to drive the TECs), and (1) connects to the Agilent 34970A (to take photodiode readings). This system is currently configured to hold COS (Chip on Submount) laser diodes.

The (16) Modular, Removable Drawers are designed to hold laser diodes for the purpose of burn-in. Spring loaded "pogo pins" secure each chip-on-submount device to a temperature-controlled plate and provide electrical connection with the anode and cathode contact pads. These fixtures hold up to sixteen laser diodes. Each fixture has two peltier coolers to control the plate temperature. A large area silicon photodiode measures the optical output of each laser diode. Each photodiode is angled 8 degrees to prevent back reflections to the laser diode.

An uninterruptible power supply is supplied to act as a continuous voltage regulator and transient suppressor. In the event of power failure, the UPS switches to battery backup power and notifies the computer.

Newport / ILX Lightwave TCM-39440 Current Source/TE Controller
This ILX Lightwave TCM-39440 Current Source/TE Controller is used and in excellent condition. It is a precision laser controller (current source) module for use in the LDC-3900 Modular Laser Diode... Controller.

Features of the TCM-39440 Include:

• 8 Watt TEC
• Output Current Range: 0-2000mA


Panasonic GP-KS152MD Industrial Color CCD Camera Control Unit
This unit only includes the Camera Control Unit and not the Camera Head.

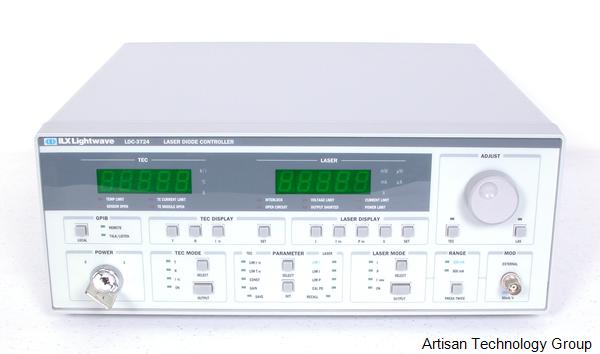

Newport / ILX Lightwave LDC-3724 Laser Diode Controller
This unit has chipped housing; however, this will not prevent it from functioning properly.
...

View a Representative Photo of the chipped housing.

CVI Melles Griot 06 DLD 105 Diode Laser Controller
Configuration:
• Voltage Compliance: 5 Vdc
• Current Range: 30 - 3000 mA
• External Input Range: 1 - 10 Vdc
