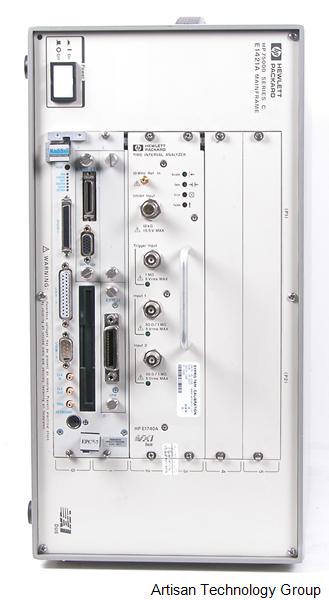

Keysight / Agilent E1725A Time Interval Analyzer Mainframe System
This Agilent E1725A Time Interval Analyzer Mainframe System's software is installed on the RadiSys EPC-7.

Features:
...
• Agilent E1421A C-size VXI Mainframe
• RadiSys EPC-7 System Controller
• RadiSys EXM-13A True Color SVGA Video Controller Card
• RadiSys EXM-22 High Speed GPIB Expansion Module
• Option 141 E1741A Time Internal Analyzer Software v2.51
• Option 147 E1747A Timing Pattern Analysis Software v2.51
• RadiSys EPConnect Software v4.2
• 1036 MB HD
• 32 MB RAM
• Windows 3.11

Agilent E1421A:
The Agilent E1421A C-size, 6-slot VXI mainframe is a compact, cost-effective solution for configurations requiring fewer slots than the 13-slot E1401B or E84XX series C-size mainframe. The smaller size and weight of the E1421A make it an excellent choice for either portable or rack-mount applications. The E1421A complies with the VXIbus Specification by providing injector surface rails used by the QUIC easy module insertion and extraction system. Agilent has incorporated its industry-leading Pressurized Air Channel cooling system into the design of the E1421A. It ensures clean, uniform airflow to each module. For greater power supply serviceability, power input intake is through the rear of the mainframe. Airflow is through the right side and exhausts through the left.

RadiSys EPC-7: (Agilent RADI-EPC7B)
The EPC-7 is a C-size VXIbus embedded computer based on the Intel 486 processor. It can perform 8-, 16-, and 32-bit VXIbus data transfers, both as master and slave, and can be the slot-0 and system controller and resource manager. The EPC-7 can be an interrupter and interrupt handler, and can drive and sample the TTL and ECL trigger lines. The EPC-7 is compatible with the IBM PC architecture and contains standard front-panel connectors for PC serial and parallel ports. The keyboard port is PS/2 style. In addition, the front panel contains a SCSI-2 port and cable connectors for external clock and trigger signals.

Agilent E1740A:
The Agilent E1740A time interval analyzer module provides a 2-slot VXI card solution for high-performance measurement. Its ability to capture high-resolution timing measurements makes it suitable for jitter characterization, telecommunications, digital design, data storage, radar/surveillance, VCO/PLL, clock distribution, and high-speed mechanical applications. The E1740A is the heart of the E1725A/B/C VXI system and is available with software packages that tailor the instrument for specific applications. Products are designed for data storage device analysis, network synchronization measurements, clock jitter and SONET/SDH jitter analysis.

Agilent E1741A:
The Agilent E1741A time interval analyzer software extends the power of the E1740A or E1725A/B/C time interval analyzer, and meets the specific requirements of data storage analysis. This easy-to-use Microsoft® Windows® application includes powerful display and analysis capabilities. E1741A software provides measurement control, as well as a range of tools that help you accurately characterize data storage devices. By integrating the Agilent E1740A or E1725A/B/C time interval analyzer with a PC running Windows 3.1, 95, or 98, the software helps you effectively analyze the quality and performance of your products including high-speed, high-density disks.

Agilent E1747A:
The Agilent E1747A timing pattern analysis software, when used with E1741A time interval analysis software, helps you focus your development efforts to improve disk drive performance. The software provides a graphical analysis of the underlying pattern-dependent timing effects that limit quality and performance, and lets you extract worst-case data patterns, even from random data. Use it to investigate problematic data patterns and their influence on data edge placement. E1747A software integrates the measurement functions of E1740A or E1725C time interval analyzers with Microsoft Windows®-based analysis routines. It is available for any IBM-compatible PC running Windows 3.1, 95, or 98 and includes an easy-to-use interface.

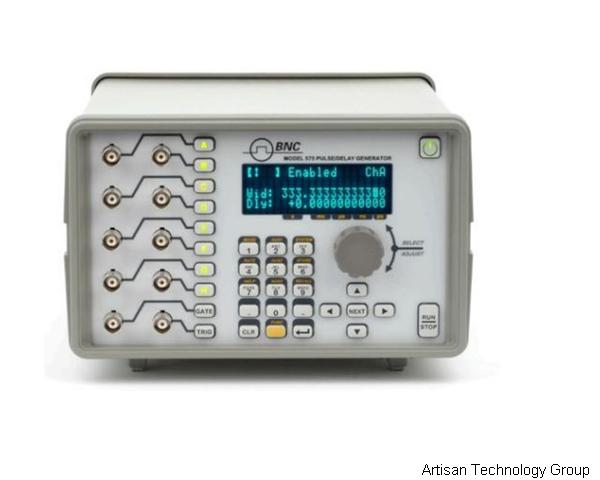

Berkeley Nucleonics 575 Digital Delay / Pulse Generator
This Berkeley Nucleonics 575 Digital Delay / Pulse Generator is Brand New and includes full manufacturer's warranty.

The 575 can be ordered as a 2, 4, or 8-Channel Configurable Pulse...
Generator. Inform one of our Customer Support Specialists what configuration you need by using the ordering numbers below.

575-XC-AT20-AT20-AT20-AT20-IA15-COM-US

575:
Series Pulse Generator
XC:
Number of Channels - 2, 4, or 8
AT20:
Output Type (per 2-Channels)
• AT20 - TTL/Adjustable 20V Electrical
• AT35 - TTL/35V Electrical Output
• L82 - 820nm Optical Output
• L130 - 1300 Optical Output
• TZ50 - TTL/Adjustable 50 Ohm Match
IA:
Input Type
• IA15 - Electrical 15V Adjustable input
• IL82 - 820nm Optical Input
• IL130 - 1300nm Optical Inout
• DT15 - Dual Trigger 15V Adjustable Input
COM:
Communication Package
• S - Standard
• Com - Upgrade Communications (S, Ethernet, & GPIB)
US:
Power Cord
• US - 115V North American Cord
• EU - 230V European Cord

Example: 575-2C-AT20-IL82-S-US -
2 Channel Electrical Output, 820nm Inputs, Standard Communication, US Power Cord

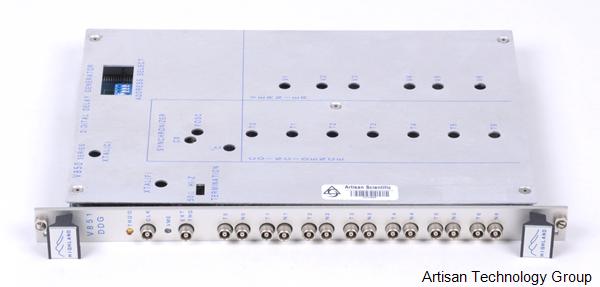

Highland Technology V851 6-Channel VME Digital Delay/Pulse Generator
This Highland Technology V851 6-Channel VME Digital Delay/Pulse Generator is used and in excellent condition.

Version: V851-2

...
Configuration:

• Front Panel Connectors: LEMO

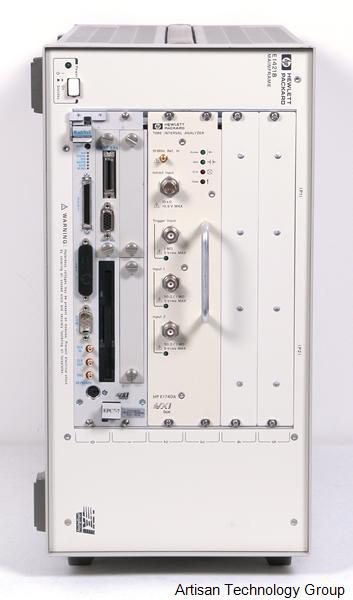

Keysight / Agilent E1725B Time Interval Analyzer Mainframe System
This Agilent / HP E1725B Time Interval Analyzer Mainframe System's software is installed on the RadiSys EPC-7. No media is included.

...
Features:
• Agilent E1421B C-size VXI Mainframe
• RadiSys EPC-7 System Controller w/ EXM-13A True Color SVGA Video Controller Card
• Agillent E1740A Time Internal Analyzer 2-slot C-size VXI card
• Option 141 E1741A Time Internal Analyzer Software v2.51
• Option 147 E1747A Timing Pattern Analysis Software v2.51
• RadiSys EPConnect Software v4.2
• 500 MB HD
• 16 MB RAM
• Windows 3.11

Agilent E1421B:
The Agilent E1421B C-size, 6-slot VXI mainframe is a compact, cost-effective solution for configurations requiring fewer slots than the 13-slot E1401B or E84XX series C-size mainframe. The smaller size and weight of the E1421B make it an excellent choice for either portable or rack-mount applications. The E1421B complies with the VXIbus Specification by providing injector surface rails used by the QUIC easy module insertion and extraction system. Agilent has incorporated its industry-leading Pressurized Air Channel cooling system into the design of the E1421B. It ensures clean, uniform airflow to each module. For greater power supply serviceability, power input intake is through the rear of the mainframe. Airflow is through the right side and exhausts through the left.

RadiSys EPC-7: (Agilent RADI-EPC7B)
The EPC-7 is a C-size VXIbus embedded computer based on the Intel 486 processor. It can perform 8-, 16-, and 32-bit VXIbus data transfers, both as master and slave, and can be the slot-0 and system controller and resource manager. The EPC-7 can be an interrupter and interrupt handler, and can drive and sample the TTL and ECL trigger lines. The EPC-7 is compatible with the IBM PC architecture and contains standard front-panel connectors for PC serial and parallel ports. The keyboard port is PS/2 style. In addition, the front panel contains a SCSI-2 port and cable connectors for external clock and trigger signals.

Agilent E1740A:
The Agilent E1740A time interval analyzer module provides a 2-slot VXI card solution for high-performance measurement. Its ability to capture high-resolution timing measurements makes it suitable for jitter characterization, telecommunications, digital design, data storage, radar/surveillance, VCO/PLL, clock distribution, and high-speed mechanical applications. The E1740A is the heart of the E1725A/B/C VXI system and is available with software packages that tailor the instrument for specific applications. Products are designed for data storage device analysis, network synchronization measurements, clock jitter and SONET/SDH jitter analysis.

Agilent E1741A:
The Agilent E1741A time interval analyzer software extends the power of the E1740A or E1725A/B/C time interval analyzer, and meets the specific requirements of data storage analysis. This easy-to-use Microsoft® Windows® application includes powerful display and analysis capabilities. E1741A software provides measurement control, as well as a range of tools that help you accurately characterize data storage devices. By integrating the Agilent E1740A or E1725A/B/C time interval analyzer with a PC running Windows 3.1, 95, or 98, the software helps you effectively analyze the quality and performance of your products including high-speed, high-density disks.

Agilent E1747A:
The Agilent E1747A timing pattern analysis software, when used with E1741A time interval analysis software, helps you focus your development efforts to improve disk drive performance. The software provides a graphical analysis of the underlying pattern-dependent timing effects that limit quality and performance, and lets you extract worst-case data patterns, even from random data. Use it to investigate problematic data patterns and their influence on data edge placement. E1747A software integrates the measurement functions of E1740A or E1725C time interval analyzers with Microsoft Windows®-based analysis routines. It is available for any IBM-compatible PC running Windows 3.1, 95, or 98 and includes an easy-to-use interface.

Keysight / Agilent 5262A Time Interval Unit
This Keysight / Agilent 5262A is the 52462 Electronic Counter Time Interval Unit. If you would like to purchase an individual component of this unit, please contact Artisan Technology Group Sales... for pricing and availability.

Part Number: 5262A-65A

Tektronix TG 501 Time Mark Generator
This Tektronix TG 501 Time Mark Generator is used and in good condition. The marker knob is broken. However this does not affect its functionality in anyway. This unit has Option 1 installed.
...

Option 01: Temperature-Compensated 5 MHz Crystal Oscillator

Berkeley Nucleonics 565-4C 4-Channel Low Jitter Digital Delay and Pulse Generator
Configuration:
...
• 4 Channel Version of the 565 Series Pulse Generator.

This unit does not have the plastic Select/Adjust knob on front panel, nor does it have the front panel frame. Neither affect functionality. This unit has been priced accordingly.

MAC Panel Company 16554 C-Sized VXI Mainframe
Features:
• Mac Panel 16654 C-size VXI Mainframe
• Option 243
Toshiba EX20 40TCUB Timer / Counter Access Unit
This Toshiba EX20 Timer / Counter Access Unit is used and in excellent condition.

Unit Includes:
• Ethernet Cable
...
• Omron XM2S-09 to XM2S-25 Cable

Part Number: EX20 40TCUB

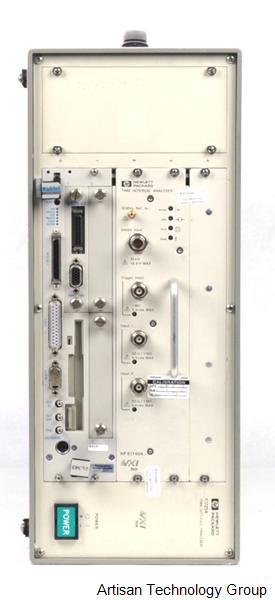

Keysight / Agilent E1725A Time Interval Analyzer Mainframe System
This Agilent E1725A Time Interval Analyzer Mainframe System's software is installed on the RadiSys EPC-7.

Features:
...
• Mac Panel 16654 C-size VXI Mainframe
• RadiSys EPC-7 System Controller
• RadiSys EXM-13A True Color SVGA Video Controller Card
• Option 141 E1741A Time Internal Analyzer Software v2.5
• 115 MB HD
• 8 MB RAM
• Windows 3

RadiSys EPC-7: (Agilent RADI-EPC7B)
The EPC-7 is a C-size VXIbus embedded computer based on the Intel 486 processor. It can perform 8-, 16-, and 32-bit VXIbus data transfers, both as master and slave, and can be the slot-0 and system controller and resource manager. The EPC-7 can be an interrupter and interrupt handler, and can drive and sample the TTL and ECL trigger lines. The EPC-7 is compatible with the IBM PC architecture and contains standard front-panel connectors for PC serial and parallel ports. The keyboard port is PS/2 style. In addition, the front panel contains a SCSI-2 port and cable connectors for external clock and trigger signals.

Agilent E1740A:
The Agilent E1740A time interval analyzer module provides a 2-slot VXI card solution for high-performance measurement. Its ability to capture high-resolution timing measurements makes it suitable for jitter characterization, telecommunications, digital design, data storage, radar/surveillance, VCO/PLL, clock distribution, and high-speed mechanical applications. The E1740A is the heart of the E1725A/B/C VXI system and is available with software packages that tailor the instrument for specific applications. Products are designed for data storage device analysis, network synchronization measurements, clock jitter and SONET/SDH jitter analysis.

Agilent E1741A:
The Agilent E1741A time interval analyzer software extends the power of the E1740A or E1725A/B/C time interval analyzer, and meets the specific requirements of data storage analysis. This easy-to-use Microsoft® Windows® application includes powerful display and analysis capabilities. E1741A software provides measurement control, as well as a range of tools that help you accurately characterize data storage devices. By integrating the Agilent E1740A or E1725A/B/C time interval analyzer with a PC running Windows 3.1, 95, or 98, the software helps you effectively analyze the quality and performance of your products including high-speed, high-density disks.


Digitimer NL403 Delay-Width Module
This Digitimer NL403 Delay-Width Module is used and in excellent condition.
Pulse Instruments PI-5800A Data Generator
There is some burn-in on the screen of this unit; however, this does not affect its functionality.
...

View Photo of burn-in on screen.

Tektronix TG 501 Time Mark Generator
Option 01: Temperature-Compensated 5 MHz Crystal Oscillator
