New & Used Analytical Instruments Products

Configuration:
• Conversion Gain: Range of 256 to 2048 Channels
  • Optional 1024 or 512 Selectable in MAESTRO
• Coarse Gain: Jumper Selectable for X1, X3 or X9
• Fine Gain: 0.33 to 1.0
• Integral Non-Linearity: <±0.05% Over the Top 99% of the Range
• Differential Non-Linearity: <±1% Over the Top 99% of the Range

The rubber protective cover is available for purchase from our website here: (Item #53047-2).

This unit is also known as the Storage Battery Systems SBS-3500.

Included Accessories:

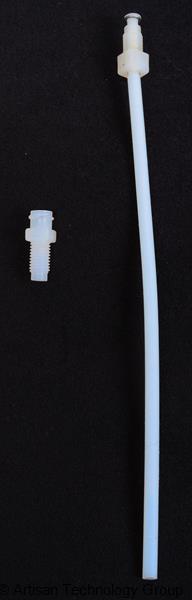

• Standard 180mm Filling Tube
• Luer adapter 1/4" UNF

View Photo of included accessories.

Configuration:
• Thread Size: 5/8-18

This unit has a cracked housing.

Configuration:
• Bearing: Air
• EC Motor (Brushless DC) with High-Resolution Optical Encoder: Yes
• Permanent Torque (60 min), No Signal Drift: Yes
• EC Mode (Controlled Shear Rate and Shear Stress): Yes
• Maximum Torque: 200 mNm
• Minimum Torque, Rotation: 10 nNm
• Minimum Torque, Oscillation: 2 nNm
• Torque Resolution: 0.1 nNm
• Angular Deflection, Set Value: 0.1 to ∞ µrad
• Angular Deflection, Resolution: 10 nrad
• Step Rate, Time Constant: 5 ms
• Step Strain, Time Constant: 10 ms
• Step Time (Rate, Strain), 99% of Set Value (All Samples): 30 ms
• Minimum Angular Velocity: 10^-9 rad/s
• Maximum Angular Velocity: 314 rad/s
• Minimum Angular Frequency: 10^-7 rad/s
• Maximum Angular Frequency: 628 rad/s
• Normal Force Range: 0.005 to 50 N
• Normal Force Resolution: 0.5 mN
• Toolmaster, Measuring System: Yes
• Toolmaster, Measuring Cell: Yes
• QuickConnect for Measuring Systems, Screwless: Yes
• Electronic Trimlock for the Measuring System: Yes
• Virtually Gradient-Free (Horizontal, Veritcal) Temperature Control: Yes
• CoolPeltier, Peltier System with Built-In Cooling Option: -5 to 200°C
• Peltier-Based Convection Oven, Does Not Require LN₂ for Cooling: -20 to 180°C
• Actively Peltier-Controlled Hood, Peltier Technology: -40 to 200°C
• Concentric-Cylinder Peltier Temperature Control: -30 to 200°C
• Maximum Temperature Range: -150 to 1000°C
• Automatic Gap Control / Setting, AGC / AGS: Yes
• TruGap for In-Place Measurement and Control of the Gap: Yes
• T-Ready: Yes
• Direct Strain, Amplitude Controller: Yes
• Direct Stress, Amplitude Controller: Yes
• TruRate: Yes
• TruStrain: Yes
• Normal Force and Velocity Profiles, Tack, Squeeze: Yes
• Piezo Axial Actuator (PAA): No

Input Voltage: 100-230 VAC

View Photo of cracked housing.

Part Number: MCR 302

This TA Instruments SDT-Q600 Simultaneous TGA / DSC has been lightly used and is in like new condition.

Included Software:
• Q600 Software
• Thermal Advantage 4.8.3
• Thermal Advantage for 29xx Series
• Thermal Analysis and Rheology Application Library
• Thermal Advantage Manuals and Help Videos

Included Accessories:
• SDT-Q600 Simultaneous TGA / DSC
• Large Magnet
• Calcium Oxide Monohydrate Reference Compound
• Zinc Reference Metal
• Aluminum Oxide Calcined Reference Compound
• 952504.901 Reference Compound
• 952512.901 Reference Compound
• 952508.901 Reference Compound
• 952500.901 Reference Compound
• 952520.901 Reference Compound
• 952512.901 Reference Compound
• (2) 250V Fuses
• (3) 960072.901 Sample Cups
• (9) 960070.901 Sample Cups
• (3) 960239.901 Sample Cups
• (2) 960014.901 Sample Cup Covers
• 915079.901 Sapphire Calibrant
• (3) 960149.901 Sample Cups
• Calibration Manual
• Software CDs

View Photo of Accessories

The software listed above is loaded onto the system and does not include the CD media. This system's hardware and software configuration is preserved as it was originally used. It will be the end user's responsibility to comply with any non-transferable software licensing issues and delete any software that is deemed non-transferable. Upon request, we can delete and format the hard drive prior to shipping for a $20.

This unit is also known as GE Part Number 379A9798P040.

Configuration:
• Output Type: 150 mV/in/s (5.91 mm/sec), 105Ω Coil Resistance
• Fixed Cable Length: 40 ft (12.19 m)

Model Number: 690A13TRA

690A13TRA Configuration:
Type Number: 690A
Full Scale Range: 1,000 Torr
Fitting: Cajon 4-VCR female
Accuracy: Standard (±0.12% of Reading, Unidirectional Calibration)

Configuration:
• Diameter: 3 inches
• Detector Type: Monoline
• Length: 5 inches
• Size of Photosensitive Device: 3 Inches
• X: Non-Standard, Special or Custom Configuration

Part Number: 600-6546-02

This Perkin Elmer 3100 Atomic Absorption Spectrometer is used and in excellent condition. This unit is in excellent operating condition and passes all self tests.

This unit does not include any lamps or quartz cell. Please contact Perkin Elmer for pricing and availability of these accessories as well as others that may be necessary for your application.

Date of Manufacture: Jan 1991

This is the 3321 only. Software or accessories are not included. Please contact manufacturer for pricing and availability.

Part Number: 332100

Voltage Input: 100-240 VAC
