New & Used VSA Products

Configuration:
• Impedance: 50Ω
• Test Port Connector: Type N, Female
• Number of Test Ports: 2
• Frequency Range: 300 kHz to 1.3 GHz

Includes:
• 1 GB Flash Drive
• USB Cable
• Power Supply
• (4) Power Supply Adapters

AC Adapter is not included. Please contact manufacturer for pricing and availability.

Part Number: N5102-60009

This Keysight / Agilent N4691B Electronic Calibration (ECal) Module for Vector Network Analyzer is used and in excellent condition.

Configuration:
• Ports: 2
• Connector Type: 3.5 mm
• Frequency Range: 300 kHz to 26.5 GHz
• Port A and B Option: Female to Female (00F)

Part Number: N4691-60006

Includes:
• Agilent Differential I/O Dual 38 Pin, Part Number N5102-20005
• Agilent Differential I/O Dual 100 Pin, Part Number N5102-20006
• Agilent Loop Back Test Single Ended 10 Dual 40 Pin, Part Number N5102-20003
• Agilent Single Ended I/O Dual 20 Pin, Part Number N5102-20004
• Agilent Single Ended I/O 68 Pin, Part Number N5102-20007
• SCSI Cable, Part Number N5101-60003
• Lambda Switching AC Adaptor, Model DT-30U-050

Part Number: N5102-60009
Kit Part Number: N5102A-FG

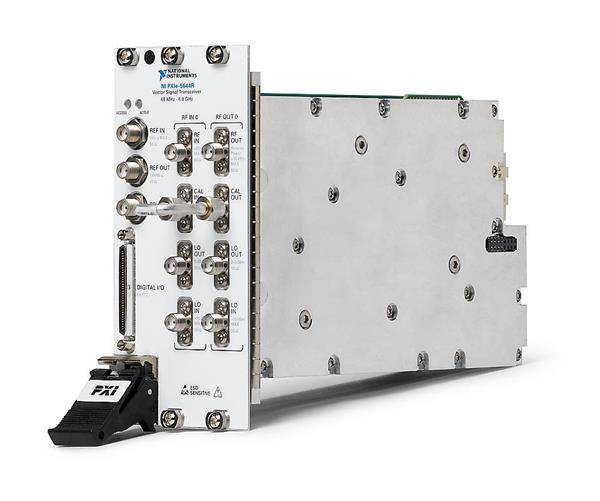

Configuration:
• Frequency Range: 65 MHz to 6 GHz
• Bandwidth: 80 MHz

Part Number: 150818D-02L, 150818C-01L, 150818E-02L, 150818C-02L, 150818D-01L

Input module is not included. Contact manufacturer for pricing and availability.


• No Options Installed

This system can be sold complete or as individual modules. Please contact Artisan sales for pricing and availability of individual modules.

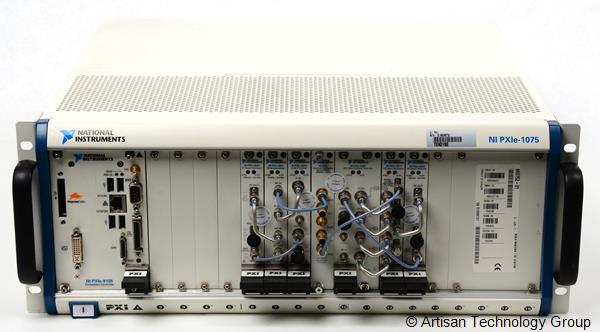

System Configuration:
• System Part Number 860752-01: Nokia Win 7 RF Test System
• PXIe-1075 18-Slot PXIe Chassis w/ Rackmount Ears and Handles
• PXIe-8105 Embedded Controller, 2 GHz Processor, 1 GB Memory, 60 GB HDD
• (1) PXIe-5663E 6.6 GHz PXIe Vector Signal Analyzer (P/N: 781260-02, 256 MB Onboard Memory)
    • (1) PXIe-5652 RF Signal Generator
    • (1) PXIe-5601 RF Downconverter
    • (1) PXIe-5622 16-Bit IF Digitizer
• (1) PXIe-5673E 6.6 GHz PXIe Vector Signal Generator (P/N: 781263-02, 512 MB Onboard Memory)
    • (1) PXIe-5450 400 MS/s I/Q Signal Generator
    • (1) PXIe-5611 I/Q Vector Modulator
    • (1) PXIe-5652 RF Signal Generator
• NI 5540 PXIe RF Combiner 250 MHz - 6 GHz (P/N: 782085-01, 153123A-01L)

Installed Software:
• VI Package Manager
• NI MAX
• LabVIEW Tools Network
• NI Distributed System Manager 2013
• NI IO Trace
• NI License Manager
• NI Network Browser
• NI Registration Wizard
• NI Update Service
• Datasocket
• IVI
• LabVIEW 2013
• Modulation
• Modulation Toolkit
• NI Bluetooth Analysis Toolkit
• NI Bluetooth Generation Toolkit
• NI FM-RDS Analysis Toolkit
• NI FM-RDS Generation Toolkit
• NI GNSS Simulation Toolkit
• NI GSM-EDGE+ Analysis Toolkit
• NI GSM-EDGE+ Generation Toolkit
• NI LTE Analysis Toolkit
• NI LTE Generation Toolkit
• NI WCDMA-HSPA+ Analysis Toolkit
• NI WCDMA-HSPA+ Generation Toolkit
• NI WLAN Analysis Toolkit
• NI WLAN Generation Toolkit
• NI-DAQ
• NI-FGEN
• NI-HWS
• NI-RFSA
• NI-RFSG
• NI-SCOPE
• Spectral Measurement Toolkit
• TestStand 2013
• Vector Signal Transceivers
• VeriStand 2013 SPI
• VISA

Part Numbers: 782299-01

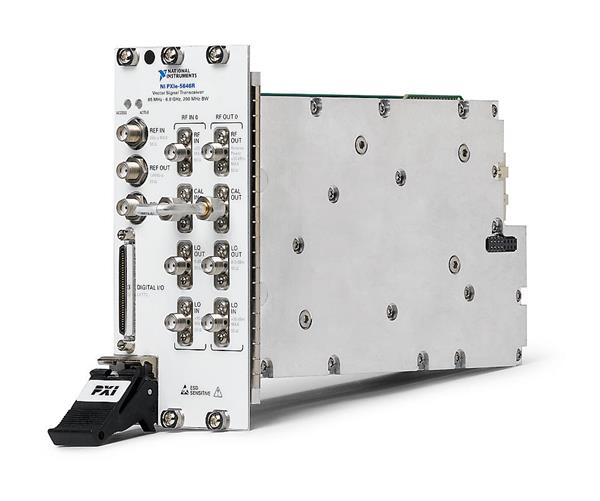

Configuration:
• Frequency Range: 65 MHz to 6 GHz
• Bandwidth: 80 MHz

Part Number: 150819E-02L, 150819C-02L

Part Numbers: 782299-01, 782299-02

Please contact Artisan Technology Group Sales for configuration, pricing, and availability.
