New & Used Industrial Parts Products

This unit ships sealed in the manufacturer's box.

Configuration:
• Lead: 1/4 - 0.025
• Travel 2"
• Bearing: 30
• Lube: NB5051

Part Number: C00000232

Probe cable is sold separately.

This LU-VE Contardo STVF-16224 Air Cooled Tubeless Steel Condenser is new from surplus stock. This unit includes the optional fan.


• Power Rating: 1385 W
• Surface: 2 sqm.
• Plastic Fan Shroud: CF24 (236mm)
• Motor: ELCO NU-9-20-2/094 (1550rpm max.)

This unit is also known as Solar, Part Number: 1034549-20.

Part Number: 1701/15-01, 141379-01

Configuration:
• Model Series: 44
• Range: 1 to 20 psia

Configuration:
• Model Series: 43
• Range: 28" Hg (Vacuum) to 0 to 35 psig

This Tecumseh / L'Unite Hermetique AEA3414YXA Compressor is new from surplus stock. This unit ships with standard accessory in manufacturer's box.


• AE: Compressor Family
• A: 1st Generation
• 3: High Evaporation Temperature; +45 °F Rating Point; Normal Motor Starting Torque
• 414; 1400 BTU Capacity
• Y: R134a Refrigerant
• XA: 115 VAC Single Phase at 60 Hz, 110 VAC Single Phase at 50 Hz

Part Number: AE500AT-048-J7

Artisan does not refurbish compressors. Customer will need to perform that service before putting this into service. This compressor has been priced accordingly.

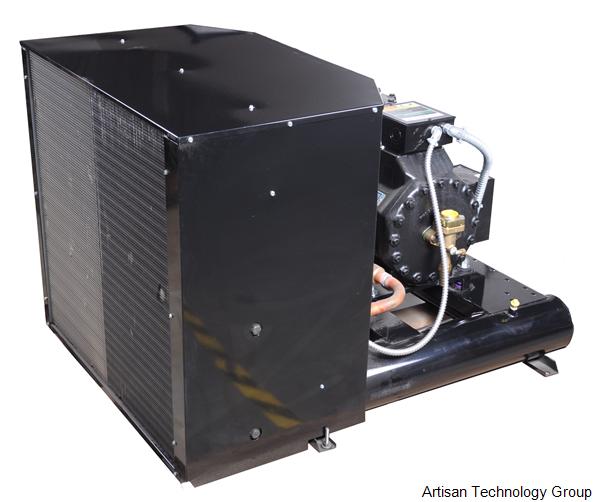

This Emerson Climate / Copeland CJDL-0601-TFC-100 Condensing Unit is new from surplus stock and ships in manufacturer's box.


• C: C Series Condensing Unit
• J: R-404A, R507 Refrigerant
• D: Discus Design
• L: Low Application Temperature; Max 0°F, Min -40°F
• 0601: 6 HP (Nominal) Motor Rating; Revision A
• T: General Three Phase Motor Motor Type
• F: Internal Inherent Protection
• C: 60Hz: 208/230-3; 50Hz: 200/220-3
• 100: Intended for UL Recognition and CSA Certification


• Refrigerant: R-404A, R507
• Condenser Type: Air
• Copevap Water Storage: N/A
• Receiver Capacity: (lbs): 55.4
• Liquid Connection Size: 5/8in / F
• Suction Connection Size: 1-3/8in / S
• Discharge Line Size: 7/8in
• Oil Type: POE
• Oil Recharge Amount: 125oz

View Photo of front angle of unit.
View Photo of rear of unit.
View Photo of rear angle of unit.

*Artisan does not refurbish compressors. Customer will need to perform that service before putting this into service. This compressor has been priced accordingly.

Copeland CJDL-0601-TFC-001 Datasheet (pdf)
Copeland 3DA3A060E-TFC-100 Datasheet (pdf)
Copeland CJDL-0601-TFC-001 Schematic (pdf)

Part Number: 602-258
