New & Used Test Fixtures Products

The 16047C Test Fixture is designed for evaluation of axial/radial lead type devices.

Maximum Voltage: ± 35 VDC

The 16047A Test Fixture is designed for use with 4 terminal-pair LCR Meters and Impedance Analyzers. It is a direct attachment,4-terminal pair configuration type test fixture for measurements on both axial and radial lead components.

Maximum Voltage: ± 40 VDC

This Agilent / HP 16034E Test Fixture is used and in excellent condition.

Configuration:
• Minimum SMD Size: 1.6 mm x 0.8 mm (L x W )
• Measurement Instruments: 4192A, 4194A (Impedance Mode), 4263B, 4278A, 4279A, 4284A, 4285A, 4294A, E4980A
• Frequency: DC to 40 MHz
• DC Bias: -40V to +40V Peak Max (AC+DC)
• Terminal Connection: BNC, 4 Terminal-Pair
• Dimensions: 128 mm x 60 mm x 71 mm (W x H x L)

Includes:
• (1) To-Packages (4-Pin) Socket Module (16088-60001) as seen here.
• (1) Dual In Line Package (28-Pin) Socket Module (16088-60002) as seen here.
• (1) To-Package (12-Pin) Socket Module (16088-60006) as seen here.

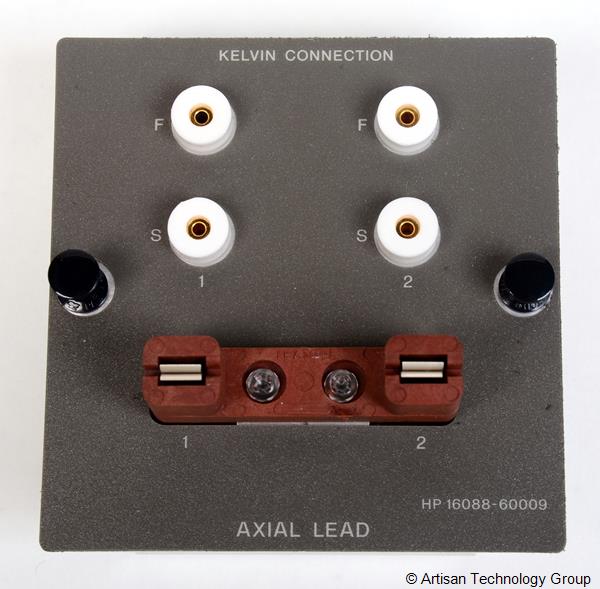

• (1) Axial Lead Package Socket Module (16088-60009) as seen here.

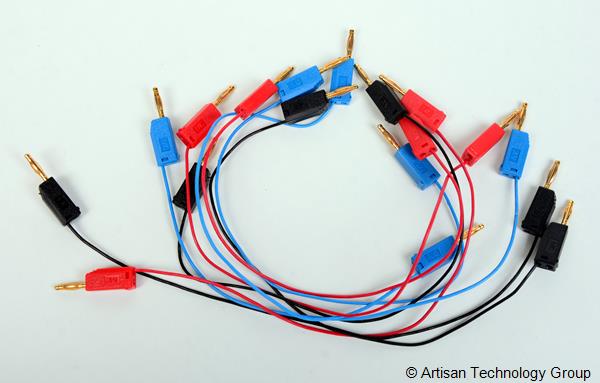

• (11) Miniature Banana Plug-Pin Leads as seen here.

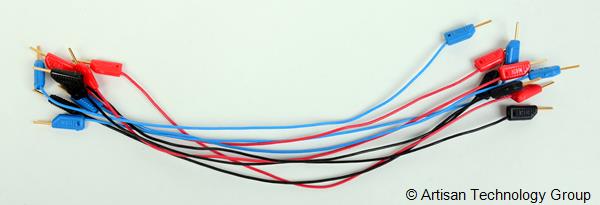

• (9) Miniature Pin Plug-Pin Leads as seen here.

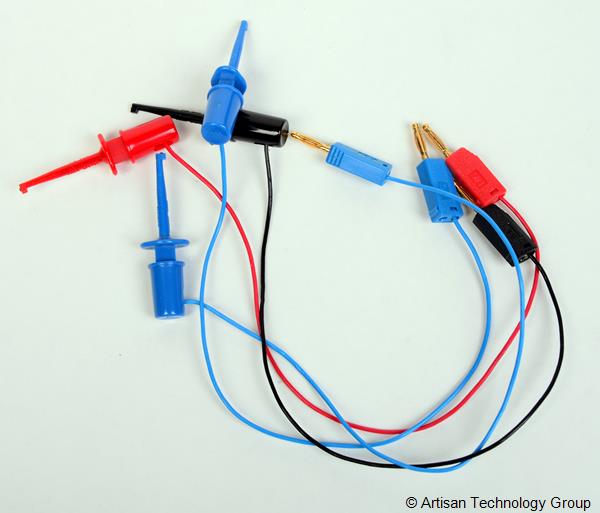

• (4) Miniature Banana Plug-Clip Leads as seen here.

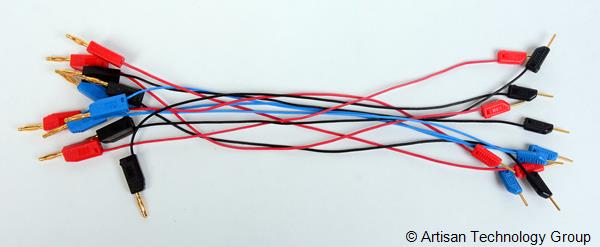

• (9) Miniature Banana Plug-Minature Banana Plugs as seen here.
• (3) Minature Clip Lead-Minature Clip Leads as seen here.

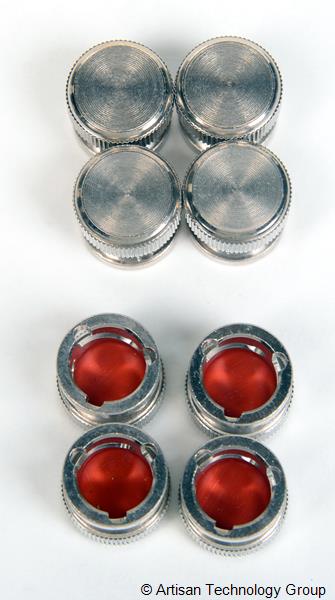

• (8) BNC Connector Caps as seen here.

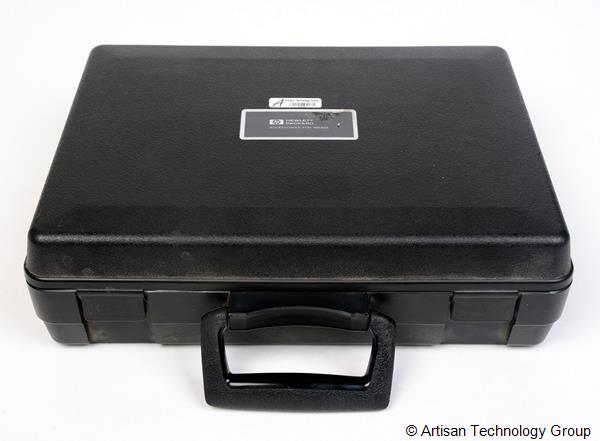

• (1) Accessory Case (16442-60101) as seen here.

The 16047A Test Fixture is designed for use with 4 terminal-pair LCR Meters and Impedance Analyzers. It is a direct attachment,4-terminal pair configuration type test fixture for measurements on both axial and radial lead components.

Maximum Voltage: ± 35 VDC

Configuration:
• Input Voltage: 250 VAC
• Current: 15 A

Includes:
• (2) USB 2.0 A-Male to B-Male Cables, Length: 5.25 in. (13.34 cm)

Includes:
• (2) USB 2.0 A-Male to B-Male Cables, Length: 5.25 in. (13.34 cm)

The 16047D is a direct-attachment test fixture used for the general purpose measurement of axial and radial lead components. The 16047D connects directly to the UNKNOWN input terminals of Keysight / Agilent's 4-terminal pair impedance measurement instruments, and converts the 4-terminal pair configuration to a 2-terminal configuration.

This Agilent / HP 16034G Test Fixture is used and in excellent condition. The 16034G is designed for chip type components whose sizes range from 0201 to 1306. This test fixture can take measurements of the chip type L,C,R.

Configuration:
• Minimum SMD Size: 0.6 mm x 0.3 mm (L x W)
• Measurement Instrument: 4192A, 4294A, 4263B, 4268A, 4278A, 4279A, 4284A, 4285A, E4980A
• Frequency: DC to 40 MHz (up to 110MHz with OPEN/SHORT/LOAD Compensation)
• DC Bias: -40V to +40V
• Terminal Connection: BNC, 4 Terminal-Pair
• Dimensions: 120 mm x 50 mm x 70 mm (W x H x L)
