New & Used MKS / ESI Products

Configuration:
• Wavelengths: 532/355 nm
• Minimum Pulse Energy at Laser Aperture: 532 nm
    • Green Only: 0.5 mJ
    • IR/Green: 0.5 mJ
    • Green/UV3: 0.5 mJ
    • TriLite UV3: 0.5 mJ
• Minimum Pulse Energy at Laser Aperture: 355 nm
    • Green/UV3: 0.5 mJ
    • TriLite UV3: 0.4 mJ
• Cut Size (With Single Pulse): 532 nm
    • Minimum With 100 X Objective: 1 µm x 1 µm
    • Minimum With 50 X Objective: 40 µm x 40 µm
• Cut Size (With Single Pulse): 355 nm
    • Minimum With 100 X Objective: 1 µm x 1 µm
    • Minimum With 50 X Objective: 30 µm x 30 µm

Installed:
• MKS / ESI EzLaze3 Cable Assembly; Part Number: 0002-6802 (Approximate Length: 8 Feet)
• MKS / ESI Laser Filter and Filter Holder; Part Number: 0002-9002
• Straight-End Fiber Optic Cable for Laser Cutter (Approximate Length: 7 Feet)
• Mitutoyo FS70L Microscope Unit; Part Number: 378-186-1
• Mitutoyo RS70L-S Manual Focus Unit S; Part Number: 378-186-2
• Mitutoyo Manual Lens Turret; Part Number: 378-018
    • USMCO M Plan Apo 10X / 0.28 Objective Lens
    • Mitutoyo M Plan Apo NUV 50X / 0.42 Objective Lens
    • Optem 28-20-45 Aperture Tube
• (2) Mitutoyo W10X/22 Wide Field of View Eyepieces
• Cascade Microtech RF-1 Microwave Probing Station
• Cascade Microtech Microscope Arm; Part Number: 37368
• Cascade Microtech Adjustable Platen and Mount; Part Number: 37287
• Cascade Microtech Positioning Base Plate; Part Number: 36960

Includes:
• Straight-End to Right-Angle Fiber Optic Cable; Approximate Length: 7 Feet

Configuration:
• 15-Pin and 9-Pin Male D-Sub Connectors
• BNC Connectors for XY Positions
• (2) BNC Cables, Approximate Length: 78 in.; Part Number: 19396

Part Number: 85-3636-0057-01, WFH4Cm.TT/LR, 06-11737-01-03 SMP

View Photo of the bottom of the unit.

Configuration:
• Ranges: 20mΩ, 200mΩ, 2Ω, 20Ω
• Resolution: 1μΩ, 10μΩ, 100μΩ, 1mΩ
• Accuracy Switched DC:
  • ±(0.02% + 1 Digit + 10μΩ)
  • ±(0.01% + 1 Digit + 5μΩ) Typical
• Accuracy Single Cycle and Constant DC:
  • ±(0.02% + 1 Digit + 10μΩ)
  • ±(0.01% + 1 Digit + 5μΩ) Typical
• Reference Current: 100mA
• Overload Reference Current: 150mA for 100μs
• Maximum Lead Resistance: 5Ω, 5Ω, 5Ω, 2.5Ω
• Temperature Coefficient: ±20ppm/°C from 15-35°C

This item has some cosmetic damage; however, this will not prevent it from functioning properly.

Configuration:
• Ranges: 20 mΩ, 200mΩ, 2Ω, 20Ω
• Resolution: 1µΩ, 10µΩ, 100µΩ, 1mΩ
• Accuracy Switched DC:
  • ±(0.02% + 1 Digit + 10μΩ)
  • ±(0.01% + 1 Digit + 5μΩ) Typical
• Accuracy Single Cycle and Constant DC:
  • ±(0.02% + 1 Digit + 10μΩ)
  • ±(0.01% + 1 Digit + 5μΩ) Typical
• Reference Current: 100mA
• Overload Reference Current: 150mA for 100μs
• Maximum Lead Resistance: 5Ω, 5Ω, 5Ω, 2.5Ω
• Temperature Coefficient: ±20ppm/°C from 15-35°C

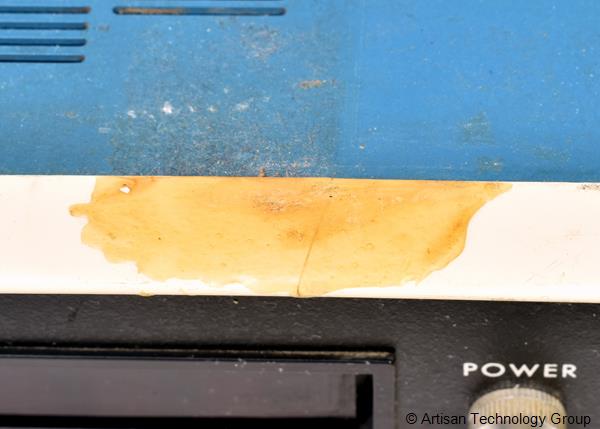

View a Representative Photo of the Cosmetic Damage.

This unit has an ESI-MFCC module installed.

Configuration:
• Processor: Intel Pentium III 700 MHz
• SDRAM: 256 MB
• Cache: 256 KB

Part Number: 118979

Configuration:
• Processor: Analog Devices ADSP-21060 SHARC, 33 MHZ
• SRAM: 512 KB
