Features:
- GPIB Interface
- Built-in Applications
- Parallel and Serial ports
- Graphical Display, 190 x 300 pixels

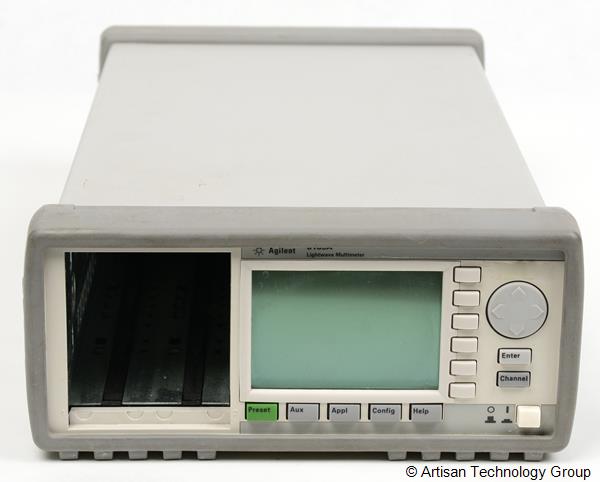

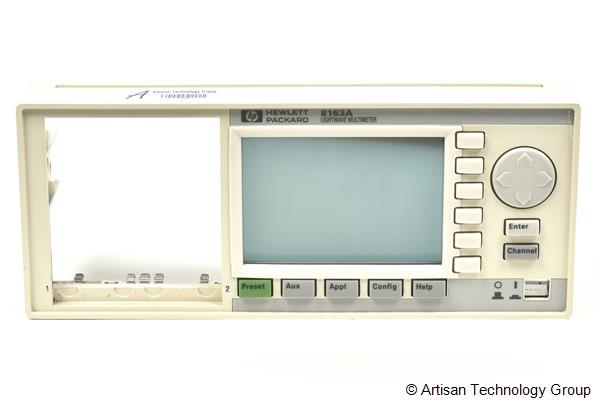

The 8163A / 8163B is a high-performance optical multimeter for the characterization and evaluation of optical components. Its modular format makes it flexible enough to meet changing needs when measuring optical power, power loss, or return loss for single or multi-mode components. The 8163A / 8163B mainframe has two slim module slots. The system can host up to two front-loadable modules, of any combination of the following types:
• Compact Tunable Laser Modules
• Fixed wavelength Laser Sources
• DFB Source Modules
• Power Sensors, both Dual and Single
• Fast Power Sensor Modules
• Interface Modules for Optical Heads
• Return Loss Modules
• Attenuator Modules
• Optical Switch Modules
The front-loadable module slots also support all modules designed for the 8153A Lightwave Multimeter.
The 08163-66502 Keysight Backplane may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Keysight 08163-66502 Backplane Specs
|
| Display Resolution | 0.0001dB/dBm, 0.01pW to 10pW up to 6 1/2 digits (user definable)
|
| Display | Graphical display 190x300 points visible
|
| Data Acquisition Memory | 4000 measurement results / channel (remote 12000)
|
| Trigger | True synchronous on all channels
|
| Interfaces | GPIB, Parallel & Serial Ports
|
| Selectable Data Total Acquisition Time | 1s to 23:59h
|
| Physical Dimensions
|
| Length | 380 mm (15")
|
| Height | 88 mm (3.5")
|
| Width | 213 mm (8.4")
|
| Shipping Weight | 6.5 kg (14.5 lbs) |
| General |
| Manufacturer | Keysight / Agilent / HP |
| Model | 08163-66502 |
| Condition | Used and in Excellent Condition |
| Product Family | 8163A, 8163B, 8163 A, 8163 B, 8163-A, 8163-B |
