Features:
- 1-Slot, C-size VXI Module
- Six 1 x 4 Multiplexers
- Switch Signals up to 1.3 GHz
- SMB Connectors for High Performance

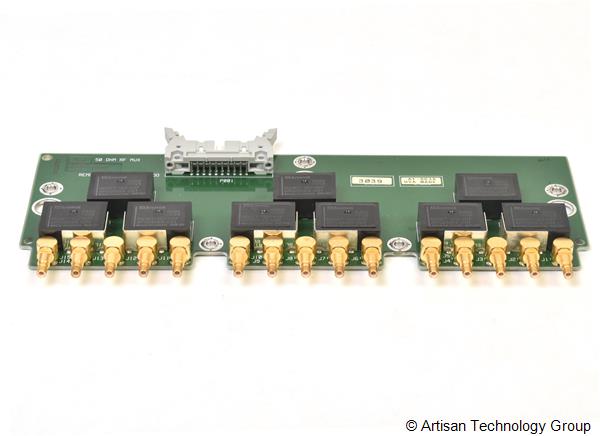

The E1472A 50 Ohm RF Multiplexer is a C-size, 1-slot, register- based VXI module. It is the ideal choice to route test signals from your application to your test instruments (i.e., oscilloscope and spectrum, network, distortion analyzers, or other RF equipment).
The RF multiplexer can be used as six multiplexers or combined with others to form a larger tree-switched multiplexer or a limited stubless matrix.
The E1472A can easily be programmed with SCPI commands to scan multiple channels, where each channel is switched to its common, one at a time. This module is arranged as six independent banks of channels (Bank 0 through Bank 5), each acting as a 1 x 4 one-wire multiplexer. Only one channel in each bank can be connected to its common at any time. The multiplexer relays are arranged in a tree-switched configuration, providing high isolation and low VSWR. Each channel consists of a non-latching armature relay.
The E1472A Keysight Six 1 x 4 50 Ohm RF Multiplexer may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Keysight E1472A Six 1 x 4 50 Ohm RF Multiplexer Specs
| General |
| Manufacturer | Keysight / Agilent / HP |
| Model | E1472A |
| Condition | New From Surplus Stock |
