OSICS / TUNICS NetTest 2 dBm ECL Tunable Laser Module
Request a Quote
Get a formal quote for this item, including volume pricing and PO terms.
Item details
| Part Number | OSICS / TUNICS |
|---|---|
| In Stock | 1 |
| Available | Today |
| Location | Champaign, IL USAships worldwide |
| Stock # | 46655-16 |
| Ship Weight | 5 lbs /ea |
| Condition | Used and in Excellent Condition |
| Inspection | Before every shipment |
| Warranty | 1-Year Warranty with 30-Day Return Guarantee |
Description
Model: 3612 HE 1560
Wavelength Range: 1500-1620 nm
Max Output Power: +2 dBm
Optical Interface: FC/APC

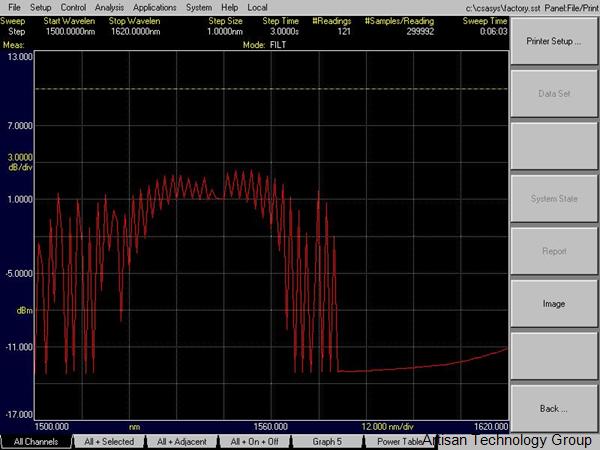

Click here for output power spectrum
Click anywhere or press Esc to close
That idle equipment in your warehouse could be cash.
Government & Enterprise Buyers: volume pricing, POs and government purchasing.
Government SalesWrite a Review
Share your experience with this item to help other buyers.
Make an Offer
Submit Your Offer, We’re Here to Assist! If we find your offer reasonable our dedicated customer service team will get back to you.
Request More Information
Have a question about this item? Send us a message and a specialist will follow up.
Thank You!
We have received your InstraView Request and will be contacting you shortly.
More Information
Exfo / NetTest / Photonetics OSICS / TUNICS 2 dBm ECL Tunable Laser Module Overview
Features:
- Adjustable Wavelength
- Adjustable Power
- Internal PMF Fiber
- Many Wavelengths Available
The Yenista / Anritsu Osics DFB modules are high-performance Distributed Feed Back laser diodes. Osics DFB offers more than +13 dBm of optical power coupled in a polarization maintaining fiber with a remarkable 5 pm wavelength stability over one hour. The internal wavelength calibration yields a 30 pm accuracy and the wavelength can be finely tuned over 1.8 nm (typ.) with the internal temperature control.
Each module can be controlled from the front panel of the mainframe, or through the remote interface. The modules and the mainframe offer a full suite of internal and external modulation capabilities, and also feature a Brillouin effect suppression function.
The NetTest OSICS / TUNICS 2 dBm ECL Tunable Laser Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
2 dBm ECL Tunable Laser Module Price & Specs
Exfo / NetTest / Photonetics OSICS / TUNICS 2 dBm ECL Tunable Laser Module Manuals, Datasheets, Drivers, Links
Exfo / NetTest / Photonetics OSICS / TUNICS 2 dBm ECL Tunable Laser Module Specs
| DFB Laser Modules | |
|---|---|
| Wavelength Tuning Range | 1.6 nm (1.8 nm typ.) |
| Wavelength Accuracy | ±0.03 nm |
| Wavelength Stability | ±0.005 nm / h (±0.005 nm / 24 h typ.) |
| Output Power | +10 dBm |
| Output Power w/Opt. P13 | +13 dBm |
| Power Stability | ±0.01 dB / h (±0.01 dB / 24 h typ.) |
| Spectral width (FWHM) | <30 MHz |
| Optical Interface Connector | FC-APC Connector with PMF |
| General | |
| Manufacturer | NetTest |
| Model | OSICS / TUNICS |
| Condition | Used and in Excellent Condition |
| Product Family | OSICS / Tunics Mainframe Modules, DFB Laser Module, DFB Module, ECL Laser Module, ECL Module, ASE Laser Module, ASE Module, Laser Module |
