Features:
- Adjustable Wavelength
- Adjustable Power
- Internal PMF Fiber
- Many Wavelengths Available
The NetTest Osics DWDM Testing Platform offers the highest flexibility and largest choice of plug-ins required in fiber-optic system testing, particularly for Dense Wavelength Division Multiplexing (DWDM). Osics features a complete line of modular sources including Osics ECL, tunable external cavity lasers with Tunics technology; Osics DFB, distributed feedback laser diodes; Osics ASE, amplified spontaneous emission fiber sources, as well as various laser diode sources, Osics LD. In addition, Osics is also capable of hosting Osics EDFA, erbium-doped fiber amplifier modules as well as attenuators, Osics ATN and switches, Osics SWT.

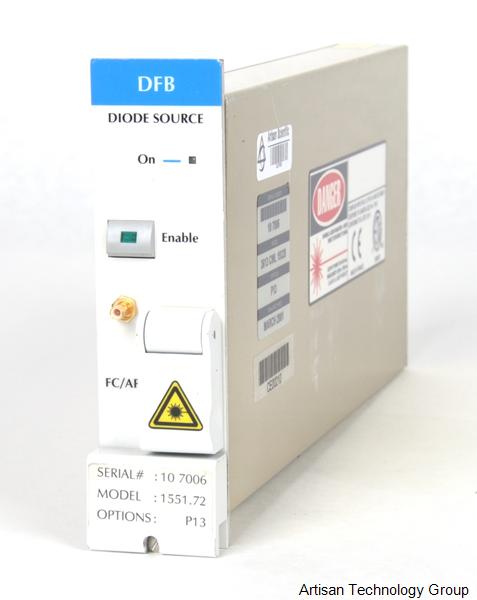

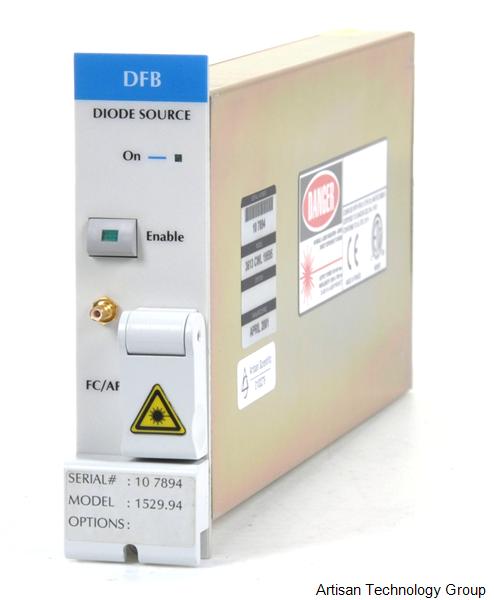

Osics DFB Modules
The Yenista / Anritsu Osics DFB modules are high-performance Distributed Feed Back laser diodes. Osics DFB offers more than +13 dBm of optical power coupled in a polarization maintaining fiber with a remarkable 5 pm wavelength stability over one hour. The internal wavelength calibration yields a 30 pm accuracy and the wavelength can be finely tuned over 1.8 nm (typ.) with the internal temperature control.
Each module can be controlled from the front panel of the mainframe, or through the remote interface. The modules and the mainframe offer a full suite of internal and external modulation capabilities, and also feature a Brillouin effect suppression function.
The OSICS NetTest 1536.61 nm High Performance DFB Laser Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
NetTest OSICS 1536.61 nm High Performance DFB Laser Module Specs
| DFB Laser Modules
|
| Wavelength Tuning Range | 1.6 nm (1.8 nm typ.)
|
| Wavelength Accuracy | ±0.03 nm
|
| Wavelength Stability | ±0.005 nm / h (±0.005 nm / 24 h typ.)
|
| Output Power | +10 dBm
|
| Output Power w/Opt. P13 | +13 dBm
|
| Power Stability | ±0.01 dB / h (±0.01 dB / 24 h typ.)
|
| Spectral width (FWHM) | <30 MHz
|
| Optical Interface Connector | FC-APC Connector with PMF |
| General |
| Manufacturer | Exfo / NetTest / Photonetics |
| Model | OSICS |
| Condition | Used and in Excellent Condition |
| Product Family | OSICS / Tunics Mainframe Modules, DFB Laser Module, DFB Module, ECL Laser Module, ECL Module, ASE Laser Module, ASE Module, Laser Module |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
