Features:
- 1-Slot, B-size, VXI Module
- Low-Offset Relay Multiplexer
- 16-Channel 3-Wire or 8-Channel 4-Wire
- Shunt/Series Signal Conditioning

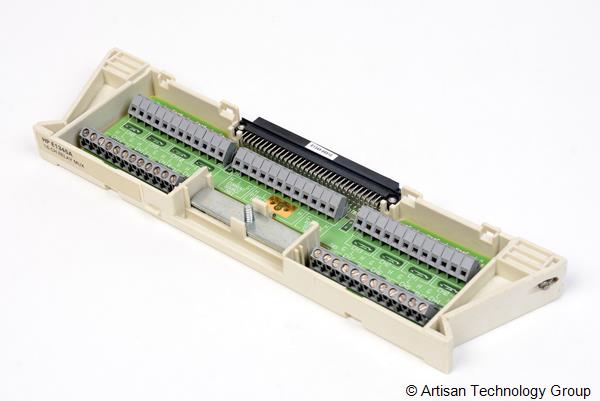

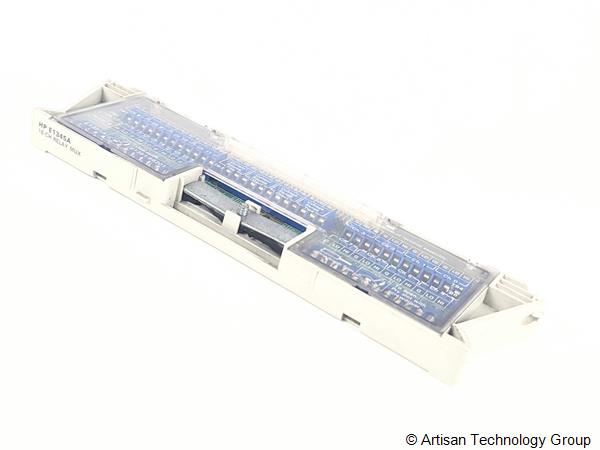

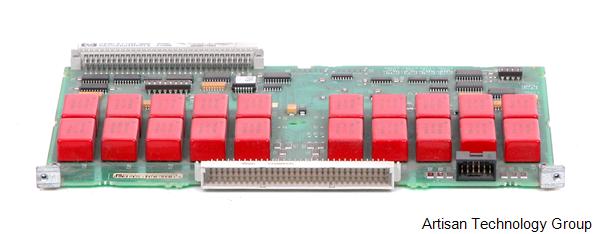

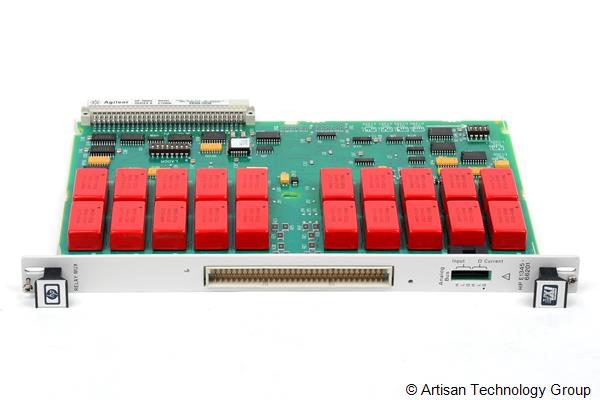

The E1345A General-Purpose Reed Relay Multiplexer is a B-size, 1-slot, register-based VXI module that switches 16 channels of high, low, and guard each. The multiplexer has low thermal offset performance. This module consists of a B-size component card (labeled E1345-66201) and a screw terminal block that plugs onto the component card. The E1345A is functionally similar to the E1347A.
The E1345A multiplexer is arranged into two banks of eight switches, each having its own common high, low, and guard screw terminals accessible on the terminal block. Tree-switched common high, low, and guard screw terminals and analog bus connections provide access to all 16 channels. The module may be programmed as either a single 1 x 16 three-wire multiplexer, two independent 1 x 8 three-wire multiplexers (for four-wire ω) or a 1 x 8 six-wire multiplexer.
The E1345A shares the same switch card with the E1343A, E1346A, E1347A, E1355A and E1356A; each product's unique terminal block determines the matrix configuration. Therefore, you can change matrix topology simply by plugging in the various terminal blocks. The terminal blocks can be obtained separately. All the E1343/45/46/47/55/56A matrix modules offer similar densities, with different row/column sizes and identical performance specifications.
The E1345A Keysight Screw Terminal Block may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Keysight E1345A Screw Terminal Block Specs
| General |
| Manufacturer | Keysight / Agilent / HP |
| Model | E1345A |
| Condition | Used and in Excellent Condition |
| Product Family | E1345-66201, E1345 66201, E134566201 |
