8-Channel Butterfly Fixture, Laser Diode Drawer, Water Jacketed with TEC

Write your review Stock #: 54219-46

Price	Contact Us
In Stock	1
Available	Today
Location	Illinois, USA
Ship Weight	12 lbs /ea
Condition	Used and in Good Condition
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

This unit is missing (2) lid hinges; however, this does not affect its ability to function properly. This drawer is unique in that it has built in TEC's and it is water jacketed. Photodiodes: Hamamatsu S1336-8BK, Si.

Designed For:
• Testing (8) 14-pin Butterfly, Pig-Tail Laser Diode Packages Simultaneously
• Interface to (8) FP3-FH1 Bare Fiber Holders (sold separately)
• (8) User Configured Jumper Blocks for communications with system (sold separately)

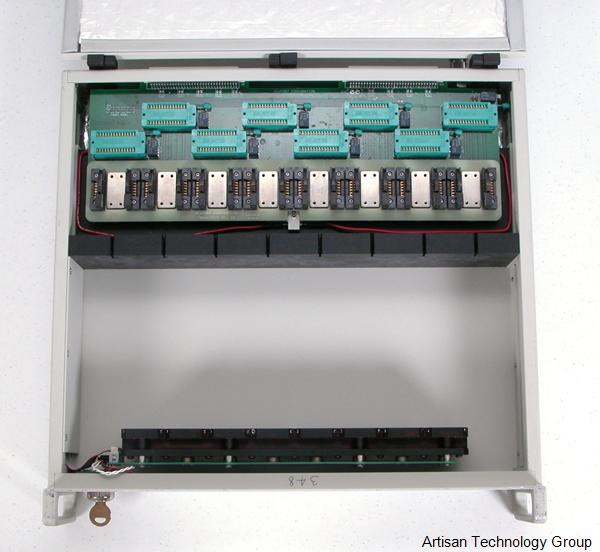

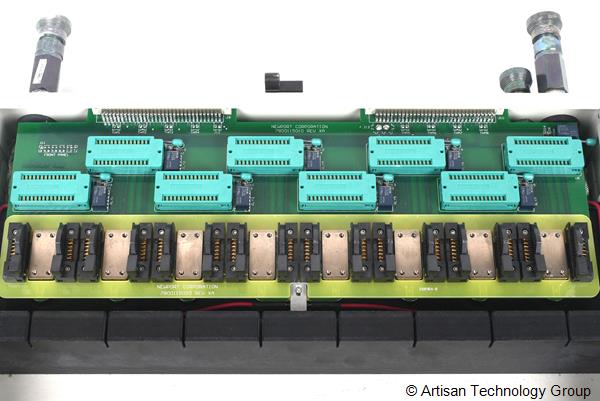

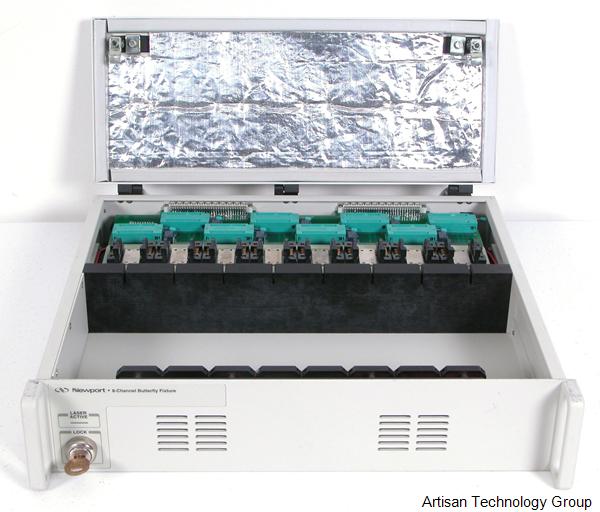

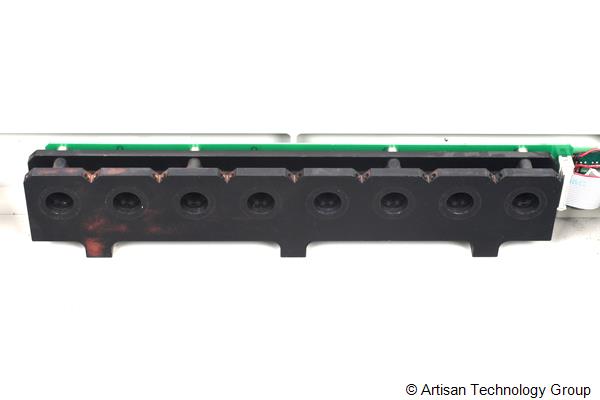

There is a picture of the photodiode detectors here and (8) channel drawer shots can be seen here and here and the jumper blocks W/O jumpers here .

View Representative Photo of missing lid hinges.

Brands:
MKS Instruments Newport

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

Close ×

More Information

Features:

Various Newport Laser Diode Drawers
Wide Rage of Burn-In Accessories

Newport 8-Channel Butterfly Fixture Drawer (Model Number: 8-CHBF or 8CHBF)

The Newport 8-Channel Butterfly Fixture Drawer (8-CHBF or 8CHBF) holds up to (8) 14-pin laser diode, pigtail packages. Because each package can have its own unique pin-out configuration, the Newport 8-CHBF has a 28 pin, zero-inserion-force (ZIF) jumper block socket to allow any package to communicate with the system. If you do not want to use a PCB that fits the ZIF, jumper wires from pin to pin. Then simply connect your packages' pin-outs to the pre-set Newport configuration.

The pigtail bare fiber is then aligned via a bare fiber holder to the photodiode detector. In addition to TEC's, the drawer has two ports on the back plane to connect to a water circulator. If you provide good water flow, a circulator, in addition to working just as good as a TEC and its driver, is much cheaper.

The Newport 8-Channel Butterfly Fixture, Laser Diode Drawer, Water Jacketed with TEC may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
