Features:

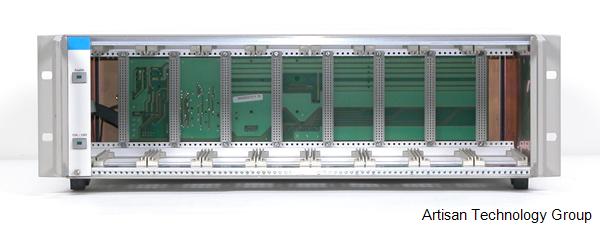

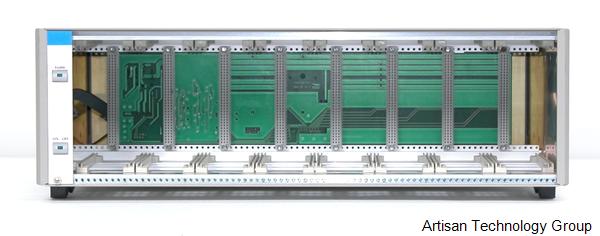

- Each Chassis Can Hold up to (8) Tunics-OM Modules
- Typical Wavelength Range (Can Vary): 1460 - 1600 nm
- Typical Peak Output Power: 4 dBm
- Each Tunics-OM Module has an Individual Modulation Input: ≥ 1 GHz Bandwidth
- Analog Outputs for Laser Diode Current on Chassis for all (8) Channels
The NetTest TUNICS-OM is a compact and modular manually-tunable source for use in multi-wavelength test systems. Up to 8 TUNICS-OM modules
can be assembled into an affordable single 19" instrument. A multi-turn knob allows the wavelength to be adjusted over 70 nm with a resolution of better than 10 pm.
Each module incorporates an adjustable automatic-power-control diode driver and provides more than 0 dBm of truly-single-mode
optical power over the tuning range. Two wavelength ranges are available, 1500-1570 nm or 1530-1600 nm.
Product Family: 3646 RA 00, 3646RA00, 3646RA 00, 3646 RA00, 3646-RA 00, 3646 RA-00, 3646-RA-00, 3646-RA00, 3646RA-00, 3646 HE 15, 3646HE 15, 3646 HE15, 3646-HE 15, 3646 HE-15, 3646HE-15, 3646HE15, 3646-HE15, 3646-HE-15, 3646 HE 1540, 3646HE 1540, 3646 HE1540, 3646-HE 1540, 3646 HE-1540, 3646HE-1540, 3646HE1540, 3646-HE1540, 3646-HE-1540, 3642-HE-1540, 3642-HE 1540, 3642 HE 1540, 3642HE1540
The Tunics-OM NetTest Tunable Laser Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for NetTest. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
