Features:
- Ultra-High Throughput Luminometer System
- Configurable for Most Commercially Available 96-, 384-, 864- and 1536-Well Microplates
- Manual Stand-Alone Workstation
- Doubly Telecentric Lens for Simultaneous Imaging of All Microplate Wells
- Ultra-High Sensitivity Camera with Self-Contained Cooling System
- Light-Tight Enclosure
The Molecular Devices CLIPR system is an ultra high sensitivity, ultra high throughput screening system for cell-based assays and SPA assays in microplates with up to and beyond 1536 wells.
The CLIPR system will provide the highest sensitivity and throughput available to perform these assays. It integrates a high sensitivity CCD camera, telecentric lens, high precision positioning mechanism, and computer system with software to control the instrument and record data.
The CLIPR system can be loaded manually or configured with a light tight plate stacker for stand-alone workstation operation. In addition, the system software and hardware enables major robotics suppliers to integrate the CLIPR system within a linear track robotic installation.
Telecentric Optical System:
• 134 mm field of view
• Anti-reflection coated optics
• Electronic shutter
• Background phosphorescence correction system

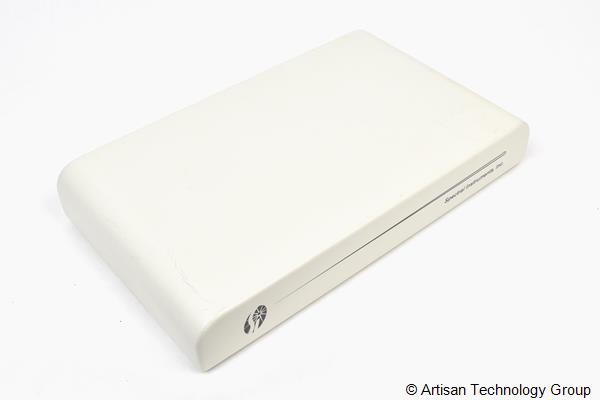

Spectral Instruments 600 Series CCD Array Camera:
• Grade 1 back-thinned CCD detector
• 1024 x 1024 pixels, 24 micron pixel size
• Manual stand-alone workstation with optional robotic plate handler and stacker or integrated to linear robot line
• Camera cooled to -100 °C using self-contained compressed gas cooling system
The 10EG1 TE Connectivity EMI Filter may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for TE Connectivity. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
