Features:
- System is Available in the High-Powered Version (AXH) or the Low-Powered Version (AXL)
- Drive Resolution is 12,800 Steps/Revolution
- 2,000 Characters of Non-Volatile Memory Can Store Up to 7
- Motion Programs
- Two Optically Isolated Programmable Outputs
- User-Selectable Micro-Stepping Waveforms for Optimal
- Smoothness

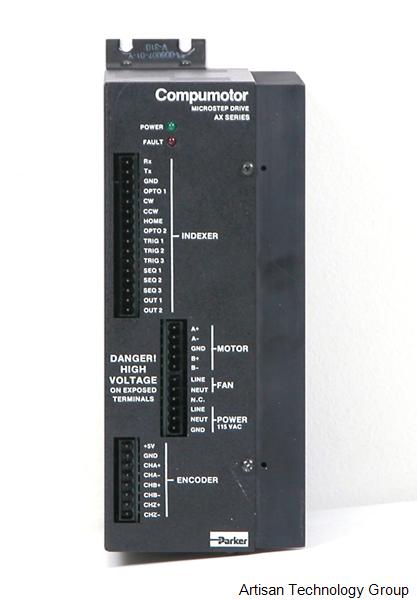

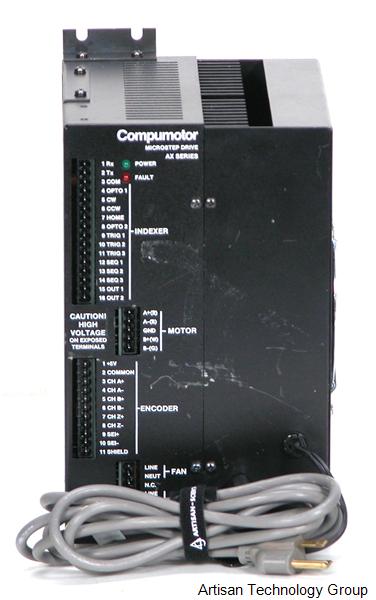

The Parker/AX Drive combines the functions of a micro-stepping Description drive and an RS-232C indexer in one compact system. This drive has a set of 70 commands and is easily programmed. Complex motion control programs can be developed with the combination of the powerful command language and user-def3ned inputs and outputs. Up to 7 programs can be created and stored in the drive's non-volatile (EEPROM) memory and can be executed remotely with simple BCD switches or a programmable logic controller (PLC). The AX Drive is available in the high-powered (6A max.) AXH model or the low-powered (3A max.) AXL model. The AX is compatible with the Model 72 and Model 72-1/0 interface.
The AX Drive provides the following features:
- Drive resolution is 12,800 steps/revolution
- Includes a full-featured RS-232C indexer with a subset of the X Series command language
- Up to 8 drives can be daisy-chained on a single RS-232C Port
- Nine optically isolated inputs
- Two optically isolated programmable outputs
- User-selectable micro-stepping waveforms for optimal smoothness
- Automatic power-up motion sequence execution
- Motion sequence selection via RS-232C or external switches
- The system offers high output voltage (170VDC) operation for optimum high-speed performance
- 95- 135VAC. 50/60Hz input power

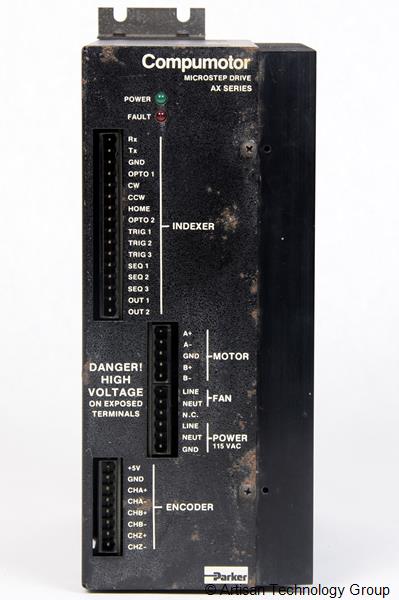

The AXH-DRIVE Parker Microstepping Drive may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
