EADS 1260-17

High-Density Switch Module

Write your review Stock #: 61307-2

Price	Contact Us
Part Number	1260-17
In Stock	7
Available	Today
Location	Illinois, USA
Ship Weight	15 lbs /ea
Condition	New From Surplus Stock
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

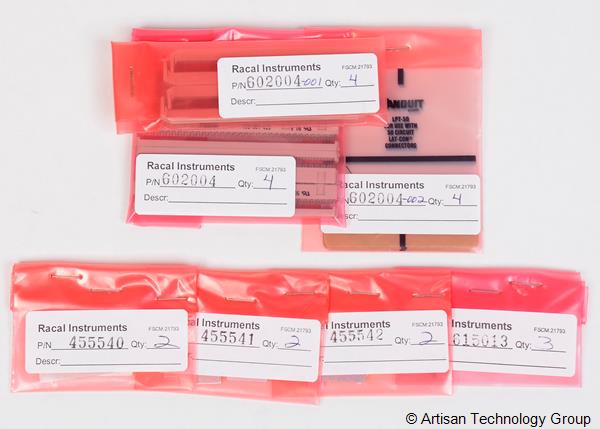

Accessories Included:
• (4) Strain Relief with Handle, Part Number; 602004-001
• (4) Female 64-Pin Type B DIN Connectors; Part Number: 602004
• (4) Pull Tab, Socket, 2.5W; Part Number: 602004-002
• (2) Key, Lockout, TTL, A/C; Part Number: 455540
• (2) Key, Lockout, TTL, A/C; Part Number: 455541
• (2) Key, Lockout, TTL, A/C; Part Number: 455542
• (3) Screw, PPF, 2-56 X .188; Part Number: 615013

Part Number: 407165-S-1593

View Photo of internal components.
View Photo of accessories included.

The Option 01 Smart Card can be installed upon request. They can be purchased here, Item Number: 55192-7.
Product Family: 6625-01-475-7087, 6625014757087

Brands:
Astronics EADS Racal

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

Close ×

More Information

Features:

Ideal for General-Purpose Switching up to 60MHz
Switches Signals up to 1A and 250 VDC or VACrms
Easily Configured to Meet User-Defined Network Requirements
Extremely High-Density Module – 80 SPDT Switches

The 1260-17 is an 80-channel, Form C (SPDT) switch module. This module is designed for general purpose switching and external device actuation. Each channel may be configured individually, or several channels may be linked to configure custom networks. The Model 1260-17 permits switching up to 1 amp and 250VDC or VACrms per channel. The large number of channels on this module allow a significant portion of any switching configuration to be realized in a single slot, thus saving valuable space. Relay contacts are monitored to provide user selectable confidence checking. This gives the user the additional assurance of proper relay operation.

The EADS 1260-17 High-Density Switch Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

EADS 1260-17 High-Density Switch Module Manuals, Datasheets, Drivers, Links

EADS 1260-17 High-Density Switch Module Specs

General
Manufacturer	Astronics / EADS / Racal
Model	1260-17
Condition	New From Surplus Stock
Product Family	1260-17A, 126017A, 1260 17A, 1260-17, 126017, 1260 17
NSN	6625-01-475-7087, 6625014757087

We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

Request Form

Item to Inspect: 61307-2 - EADS 1260-17 High-Density Switch Module

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for EADS. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
