Features:
- Strain Gage Measurements with Bridge Completion
- +5 V Excitation Circuitry, Quarter, Half, and Full Bridge
- Strain, Voltage, Current, and Ω Measurements
- Automatic Conversions for Bridge Configurations

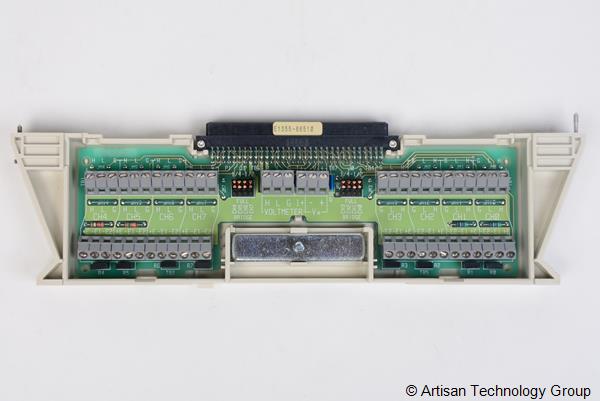

The E1355A 8-Channel 120 Ω Strain Relay Multiplexer is a B-size, 1-slot, register-based VXI module. This relay multiplexer provides bridge completion and excitation voltage circuitry for up to eight channels. The multiplexer module consists of a B-size component card (labeled E1345-66201) and a screw terminal block that plugs onto the component card. The E1355A is functionally similar to the E1345A, E1347A, and E1356A.
You can perform strain gage measurements with automatic conversions to engineering units on multiple multiplexer channels by sending SCPI commands to the DMMs, E1326B or E1411B. Strain measurements supported in SCPI with these DMMs are quarter, bending half/full, poisson half/full, and bending poisson full.
Diagnostics for the E1355A include Tension Shunt, Compression Shunt, Leadwire Resistance, Internal Half Bridge Voltage, Guard Voltage and Bridge Excitation Voltage.
The E1355-66510 Keysight Screw Terminal Block may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Keysight E1355-66510 Screw Terminal Block Specs
| General |
| Manufacturer | Keysight / Agilent / HP |
| Model | E1355-66510 |
| Condition | New From Surplus Stock |
| Product Family | E1355A, E1355-A, E1355 A, 1355A, 1355-A, 1355 A |
