Features:
- Add From (14) to (224) Thermocouple Inputs to the WaveBook/516E
- Provides Linearized and Cold-Junction Compensated Readings for All Thermocouple Types
- 1.0°C or Better Accuracy for Most Ranges and TC Types
- Consumes No Measurement Bandwidth from the WaveBook/516E
- Open TC Detection Per Channel
- Each TC Channel Can Also Be Used to Measure ±100 mV

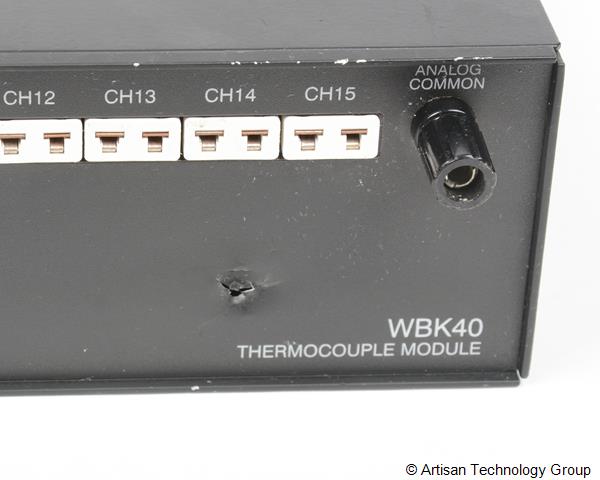

The Measurement Computing WBK40 14-Channel Thermocouple Input Module attaches to any of the
three parallel expansion ports on the WaveBook/516E, and provides 14 thermocouple input channels. Because the
WBK40 has a built-in 16-bit, 200 kHz A/D converter, thermocouple measurements
on the WBK40 do not consume valuable sampling time from the WaveBook's 1 MHz A/D converter. As a result, there
are no speed implications to WaveBook or other WBK measurements when the WBK40 is attached.
The 14 built-in TC channels on the WBK40 can accept any type of thermocouple,
including types J, K, S, T, E, B, R, M, and N mini-TC connections on the front of
the WBK40 make it quick and easy to attach thermocouples. The WBK40 can
be expanded in 14-channel increments using the DBK84 TC expansion module. A
total of 15 DBK84s can be attached to one WBK40, for a total TC channel capacity of
224 channels.
The WBK40 Measurement Computing 14-Channel Thermocouple Input Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Measurement Computing WBK40 14-Channel Thermocouple Input Module Specs
| General |
| Manufacturer | Measurement Computing / IOtech |
| Model | WBK40 |
| Condition | Used and in Good Condition |
| Product Family | WBK40, WBK-40, WBK/40, WBK.40, WBK 40, DBK84, DBK90, RackDBK4, CA-37-1T, CA-37-3T, CA-37-4T, CA-37-8T, CA-74-1, CA-115, CA-116, CN-144-JM, CN-144-KM, CN-144-TM |
