EADS 1260-45A

High-Density Switch Matrix (Option 01 or 01T Compatible)

Write your review Stock #: 64403-5

Price	Contact Us
Part Number	1260-45A
In Stock	1
Available	Today
Location	Illinois, USA
Ship Weight	18 lbs /ea
Condition	New From Surplus Stock
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

Model: 1260-45A
Description: Four 4x16 Matrices
Part Number: 407052-001

Accessories Included:
• Cable Assembly (for Connecting Two Adjacent Connectors) Part Number: 407058
• (2) A/C Lockout Keys Part Number: 455540
• (2) C Lockout Keys Part Number: 455541
• (2) A Lockout Keys Part Number: 455542
• (64) Jumper Switches Part Number: 601195
• (4) 64-Pin DIN Crimp Connector Body Part Number: 602159-064
• (256) DIN Crimp Pins for 64-Pin Connector Body Part Number: 602159-9000
• (3) Screws Part Number: 615013
• 1260-45 Software Part Number: 407051-001

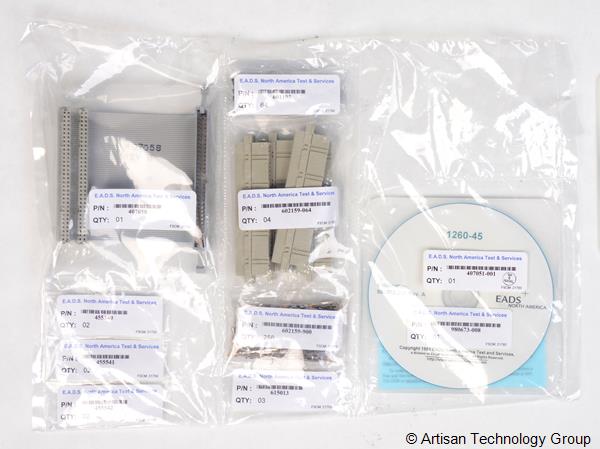

View Photo of accessories included.

An Option 01 or Option 01T Smart Card can be installed upon request. They can be purchased here, Item Number: 55192-7 OR here, Item Number: 55192-9.
Product Family: 6625-01-502-6033, 6625015026033, 5998-01-451-5149, 5998014515149

Brands:
Astronics EADS Racal

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

Close ×

More Information

Features:

Configurable as Eleven Different Matrices
25 MHz Bandwidth (4x16 Configuration)
Switches Signals up to 1A or 250 VDC
Single-Slot VXIbus Module

The 1260-45 offers the highest-density switching matrices in a single-slot C-size VXI module with the added flexibility of eleven different configurations on one card. The module may also be easily extended externally to build a larger matrix in a single VXI chassis, allowing the 1260-45 to satisfy even the most dense applications.

The 1260-45 utilizes guard relays at the row inputs of each one of the 4x16 matrix blocks. The guard relays are non-latching and revert to the open state when power is lost, therefore disconnecting the signal paths to the UUT upon removal of power from the test station. This is an important consideration in ATE because when power is returned to the test station, the UUT is guaranteed not to receive any unwanted signals. The guard relays can also be bypassed via jumpers for a full latching relay configuration.

Latching relays are useful for communication applications where the signal path must always be maintained. This allows the matrix to retain the last switch position when power is lost.
