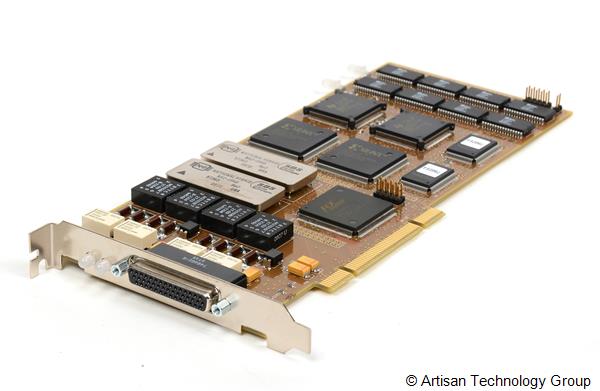

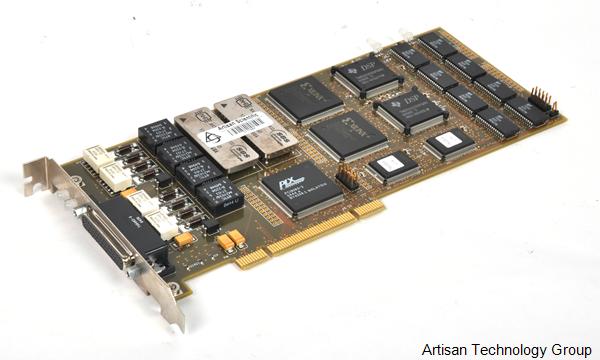

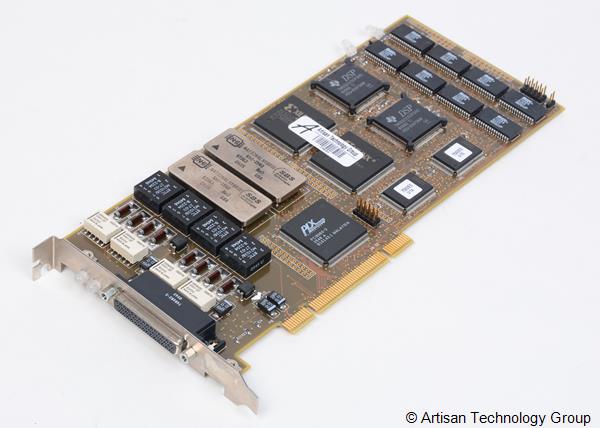

ASF-PCI-1 Abaco Systems

MIL-STD-1553 PCI Interface
Write review Stock #: 70106-2
Price Contact Us
Part Number ASF-PCI-1
In Stock 116
Location Illinois, USA
Ship Weight 2 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

Configuration:
• Channel: Single
• PCI Card Voltage: 5V Only
• Operation: 33 MHz Only

Part Number: 800-120057-401
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • Multiple RT Capability Version Available
  • PCI Form Factor
  • ASF: Advanced Single Function
  • ABI: Advanced Bus Interface (Full Function)
  • PASS: Protocol Analysis and Simulation System
GE Fanuc ASF-PCI is a flexible interface providing a single function, dual redundant MIL-STD- 1553 interface to the PCI backplane. This Advanced Single Function (ASF) architecture provides independent operation as a Bus Controller (BC), Remote Terminal (RT), or dual function Bus Monitoring (BM). The MRT option allows multiple RT capability. The ASF-PCI interface equips the PCI bus system with a complete 1553 interface. This includes 1553A/1553B selections, pointer-driven transmit and receive buffers and extensive programmable event interrupts.

BC simulation structures consist of linked lists of 1553 command messages: BC-to-RT, RTto- BC, RT-to-RT, mode code, broadcast and time delay block transmissions. We define RT simulation as a simple series of pointers to RT definition tables. The RT definition tables in turn point to control data buffers. We define the bus activity we want to monitor in both the Map and Sequential monitoring modes. This provides user defined linked lists of data buffers and sequential 1553 activity. The user can time stamp and/or double buffer the 1553 activity. Both monitoring modes perform broad error monitoring. They also provide a comprehensive error table that the host processor can read at any time.
The ASF-PCI-1 Abaco Systems MIL-STD-1553 PCI Interface may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Abaco Systems ASF-PCI-1 MIL-STD-1553 PCI Interface Manuals, Datasheets, Drivers, Links

Abaco Systems ASF-PCI-1 MIL-STD-1553 PCI Interface Specs

General
ManufacturerAbaco Systems / SBS
ModelASF-PCI-1
ConditionUsed and in Excellent Condition
Product FamilyASF-PCI-1, ASF-PCI-2, IRIG, MRT, ASF-PCI1, ASF-PCI2, ASF PCI 2, ASF PCI 1
