Features:
- 4 D/A Channels
- 12-Bit Resolution
- 300 Vrms Isolation
- 0-5 V, 0-10 V, ±2.5 V, ±5 V, ±10 V Voltage Ranges
- .05% of FSR Accuracy

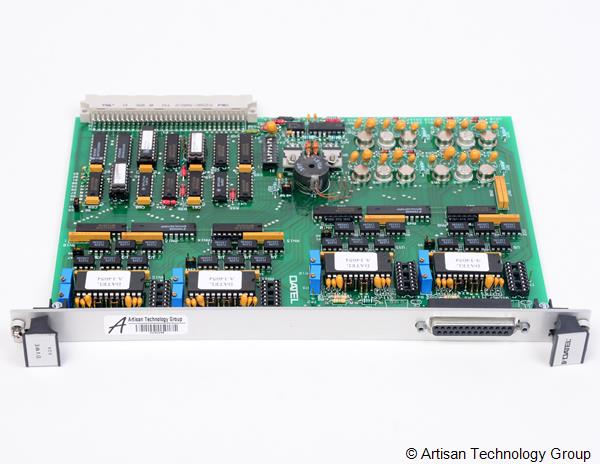

The Murata DVME-624 12-Bit, 4-Channel VMEbus D/A Board is a double height (6U) VMEbus analog output module. It provides four channels of isolated digital-to-analog (D/A) conversion with 12 bits of resolution. Overall accuracy is within ±0.05% of full scale range. To ensure the board's compatibility with popular process control and test instrumentation, five voltage ranges and a 4-20 mA current loop output option are jumper selectable for the D/A channels.

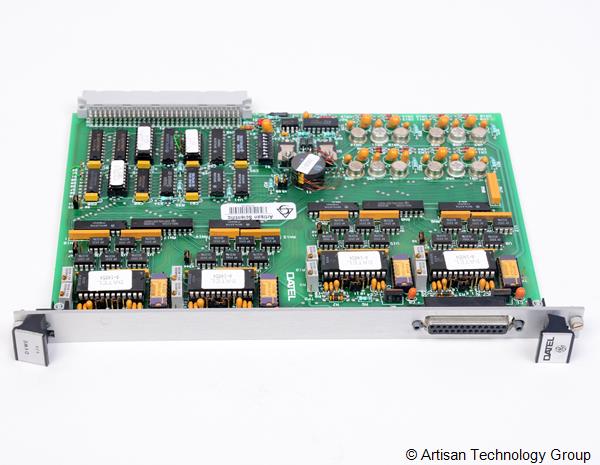

The DVME-624 is come in four different versions; DVME-624V1, DVME-624V2, DVME-624C1 and DVME-624C2. Each version is differentiated by output setting time and availability of 4-30mA current loop drivers. The -C suffix designates that the board provides 4-20 mA voltage-to-current converters at each output in addition to voltage outputs while the -V suffix designates that the board provides voltage outputs only. The -1 suffix specifies output that settle to the rated accuracy within 30 microseconds while the 2 suffix specifies a 6 microsecond settling time. The use of the term DVME-624 in this differentiated with the V1, V2, C1, or C2 suffix.
The most immportant and unique feature of the DVME-624 board is its 300 Volt channel-to-channel and channel-to-bus isolation. The DVME-624 is suited for applications where high common mode voltages or actuator failure could cause high voltages to be applied to the outputs of a controlling analog output board.
The DVME-624V1 Murata 12-Bit, 4-Channel VMEbus D/A Board may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Murata DVME-624V1 12-Bit, 4-Channel VMEbus D/A Board Specs
| General |
| Manufacturer | Murata / Datel |
| Model | DVME-624V1 |
| Condition | New From Surplus Stock |
| Product Family | DVME 624, DVME624 |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for Murata. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
