Features:
- Supports PCM Decommutation up to 20 Mbps
- Variable Word Length Processing (3-16 Bits)
- On-Board DMA Engine for High-Speed Data Transfers
- SFID, FAC, & URC Subframe Methods
- Full-Fidelity PCM Simulations up to 20 Mbps
- Minor Frame IRIG Time Insertion

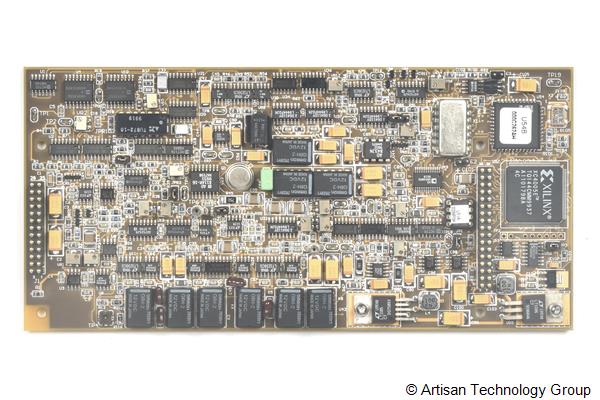

- PCM Bit Synchronizer Daughter Card (Optional)
The GE Fanuc / SBS 4422-PCI is a complete, system level telemetry module for the PCI bus. The Model 4422-PCI contains an optional bit synchronizer, PCM decommutator, IRIG time code reader, and dynamic PCM simulator. The module supports all of the functions required for telemetry data acquisition for input data streams at rates up to 20 Mbps.
The optional bit synchronizer accepts all PCM codes and includes a tape driver output. The decommutator supports variable frame and word length formats. The simulator features dynamic and unique data word generation and can operate autonomously. The time code reader accepts IRIG (A or B) time codes and can be programmed to utilize system time in the absence of an IRIG time source.
The Model 4422-PCI has a DMA engine to facilitate high speed data transfers across the PCI bus using dedicated, on-board memory for buffer addresses.
Setup parameters for each function of the Model 4422-PCI are programmed via the PCI bus. Readback (status) is available over the same bus in a pollable status word.
The SBS 4422-PCI Telemetry Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
SBS 4422-PCI Telemetry Module Specs
| General |
| Manufacturer | Abaco Systems / SBS / BSI |
| Model | 4422-PCI |
| Condition | Used and in Excellent Condition |
| Product Family | 4422PCI, 4422 PCI |
| NSN | 5998-01-503-2299, 5998015032299 |
