Features:
- Supports up to (8) Lanes
- Transparent Operation
- (32) Differential Pairs Routed from Pn4 to Rear MDR68
- Auxiliary Power Connector for 12V
- Robust End Bracket
- IEEE 1384 XMC Mechanicals

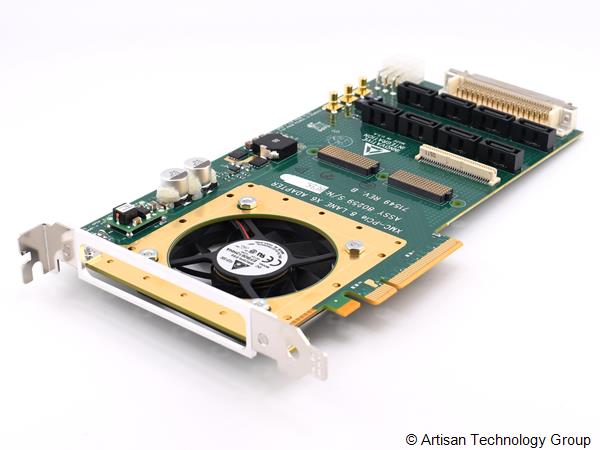

The Molex 80259 PCIe-XMC 8-Lane Adapter allows a single
width XMC module to be used in a PCI Express slot. The
XMC module is VITA 42.3 compatible and supports up to
eight PCI Express lanes. The adapter is completely
transparent to PCI Express. All signals from the PCI Express
host bus are connected directly to the XMC module.
The XMC P16 connector is routed to SATA connectors for
high speed signals at speeds up to 3GHz. The connectors
provide a simple way to "patch-panel" communications links
between cards.
The XMC Jn4 connector routes differential matched-length
pairs to the MDR68 connector at the rear of the card.
Special support for trigger and timing inputs to Innovative
XMC modules is provided through SMA connectors.
More power to the XMC module may be provided by using
the optional power connector to the adapter card. The power
connector provides +12V to the adapter and powers the oncard 3.3V, 15A DC-DC power supply. Power to the XMC
VPWR inputs is configurable using jumpers on the card.
Conduction cooling using VITA20 standard, as well as an
optional fan, provide cooling to the XMC module.
The XMC module mounts securely to the adapter using
standoffs and with the end bracket. The bracket mates to
standard PMC end brackets and supports an EMI gasket.
The 80259 Molex PCIe-XMC 8-Lane Adapter may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Molex 80259 PCIe-XMC 8-Lane Adapter Specs
| General |
| Manufacturer | Molex / Innovative Integration |
| Model | 80259 |
| Condition | New From Surplus Stock |
| Product Family | 80259, 80259-0, PCIe-XMC, PCIe XMC, XMC-PCIe, XMC PCIe |
