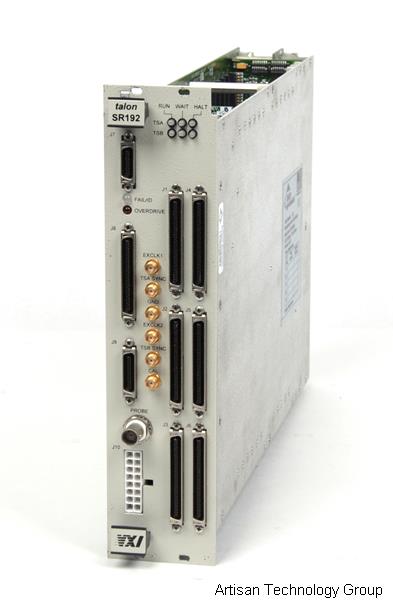

SR192 Astronics

Digital Test Module
Write review Stock #: 79322-14
Price Contact Us
Part Number SR192
In Stock 1
Location Illinois, USA
Ship Weight 15 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

Internal modules are sold separately. Please contact Artisan sales for pricing and availability.

Configuration:
• Probe Interface: None
• Connectors: SMA
• Motherboard Revision: N/C

Installed Cards:

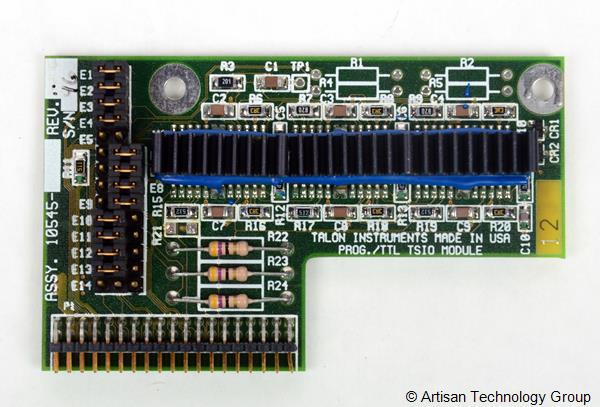

• TSIO Part Numbers: 10545-002, 10545-003, 10550-003, 10550 *
• VXI Daughtercard Part Number: 10532, 10530 *

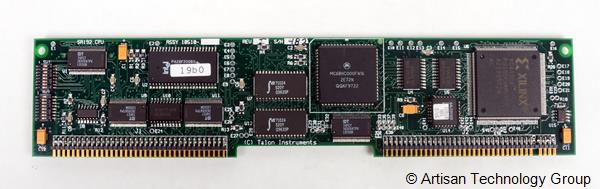

• CPU Card Part Number: 10510 *

*If a specific part number or board revision is required, please contact Artisan Technology Group Sales for pricing and availability.

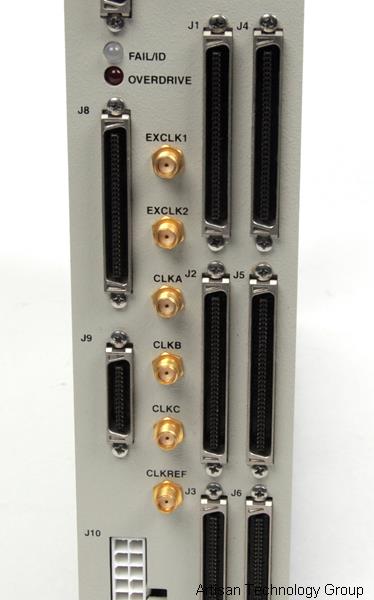

View Photo of a close up of the connectors on the front panel.
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • Timing Rates to 50MHz
  • Data Rates to 25MHz, (50MHz Multiplexed)
  • TTL Voltage Levels
  • 50mA Source/Sink
  • 5 Memory Architecture (Stimulus, Tristate, Record, Expect and Mask)
  • 128 Kbits Memory/Channel, (256K Multiplexed)

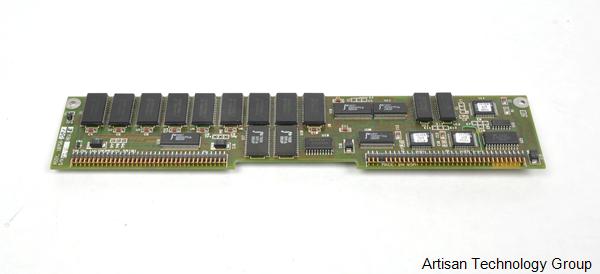

The SR192 Digital Test Module is a modular VXI stimulus and response system. The SR192 can house up to 12 I / O modules at the same time. Each I / O module is designed to provide 8 or 16 stimulus / response channels, which equates to a total of 96 or 192 total channels. The SR192 modules provide many logic options, such as fixed voltage TTL, ECL, RS485 / 422 or variable voltages of + / - 15V or +5 / -2. The I / O channels may be single-ended or double-ended logic. When using multiple SR192 modules in a master configuration, up to 1152 channels can be used in a single 13 slot chassis. As part of the SR192's configuration, the SR101 Timing Set module is used to provide all timing controls for SR192 I / O modules when they are executing a stimulus / response operation or emulating a bus interface.
The SR192 Astronics Digital Test Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Astronics SR192 Digital Test Module Manuals, Datasheets, Drivers, Links

Astronics SR192 Digital Test Module Specs

General
ManufacturerAstronics / EADS / Talon Instruments
ModelSR192
ConditionUsed and in Excellent Condition
Product FamilySR192, SR 192
