1780 Newport

10-Gbit/s 850-nm VCSEL Multimode Source
Write review Stock #: 82325-1
Price Contact Us
Part Number 1780
In Stock 1
Location Illinois, USA
Ship Weight 5 lbs /ea
Condition Used and in Excellent Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

This Newport 1780 10-Gbit/s 850-nm VCSEL Multimode Source is used and in excellent condition. This device comes with a wooden case and cable.

Configuration:
• Fiber Type: 50/125 um
• Wavelength Range: 850 nm
• Connector Type: FC/PC
• Bit Rate: 10 Gb/s
• Small-Signal Bandwidth: 7.5 GHz
• Low Frequency Cutoff: 10 kHz

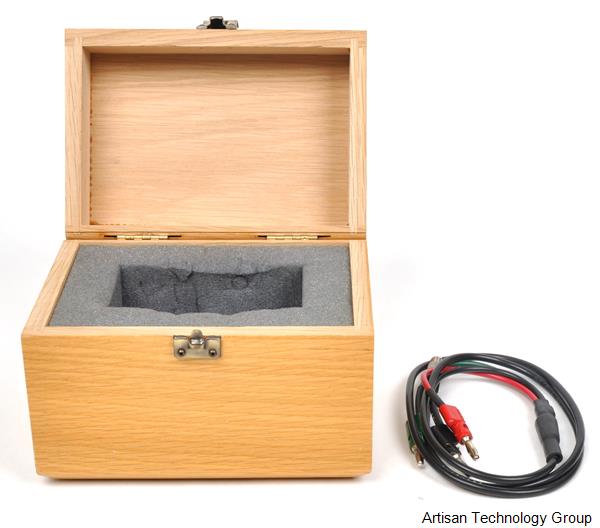

View Photo of wooden case and cable.
Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • High-Performance Microwave Housing
  • Bias-Monitor Port
  • Bias Control
  • High-Speed Response
The Newport 1780 10-Gbit/s 850-nm VCSEL (vertical-cavity surface-emit- ting laser) Multimode Device is an 850-nm, multimode device intended for use in laboratory or production environments for testing 10-Gbit/s components and fiber, or for bread-boarding of communication systems. When used with the Model 1580 Receiver, it is capable of testing fiber performance for high data-rate transmission, or it can be used for error-free transmission of digital signals over short distances.

The laser is housed in a high-performance microwave housing to minimize distortion of input signals. A bias current is supplied internally via a high-impedance circuit and the high-speed input is AC-coupled to a 50-ohm transmission line which delivers the input signal directly to the laser (there is no driver circuit). The VCSEL output is coupled via a GRIN lens into a 50-µm-core fiber which connects to the FC/PC bulk-head connector on the front panel. It can be used with either 50-µm or 62.5-µm fiber.
The 1780 Newport 10-Gbit/s 850-nm VCSEL Multimode Source may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

Newport 1780 10-Gbit/s 850-nm VCSEL Multimode Source Manuals, Datasheets, Drivers, Links

Newport 1780 10-Gbit/s 850-nm VCSEL Multimode Source Specs

General
ManufacturerNewport / New Focus
Model1780
ConditionUsed and in Excellent Condition
Product Family1780, photoreceiver, photodetector, photosource, optical to electrical, electrical to optical

We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!


Request Form

Item to Inspect: 82325-1 - Newport 1780 10-Gbit/s 850-nm VCSEL Multimode Source

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for Newport. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
