Features:
- Compact, Half-Slot Design
- Digital Synchronization
- Precise Image Capture
The CyberOptics CX Series Video Frame Grabbers are precision image capture boards in the PC/104 or ISA bus configuration. Each board has a digital synchronization scheme which delivers a rock solid image and an industry leading sampling jitter of just ±3 ns for detecting image details at the sub-pixel level. Video noise is 0.7 least significant bit (LSB) out of 256 gray levels to meet the most demanding applications.
The CX Series provides real time capture to true dual port video RAM mapped into the computer's memory. This allows fast, non-destructive, random access to a captured image even during capture and display. Composite display output is manufactured for viewing live video or a captured image on an external monochrome monitor. Text and graphics can be displayed on top of a live video or captured image with the optional overlay RAM, which provides 15 selectable gray levels.
The CX family supports standard RS-170 (NTSC) and CCIR (PAL) video formats, with format auto detect and auto switch. Single images of 512 x 486 pixels (RS-170) and 512 x 512 (CCIR) or four images at half resolution can be displayed. They also support hardware controlled field or frame grab, software adjustable offset and gain, and automatic look up table (LUT) load. Input and
output LUTs allow gamma correction, contrast and brightness adjustment, and thresholding in real time.
The CX104-20 CyberOptics PC/104 Video Frame Grabber may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

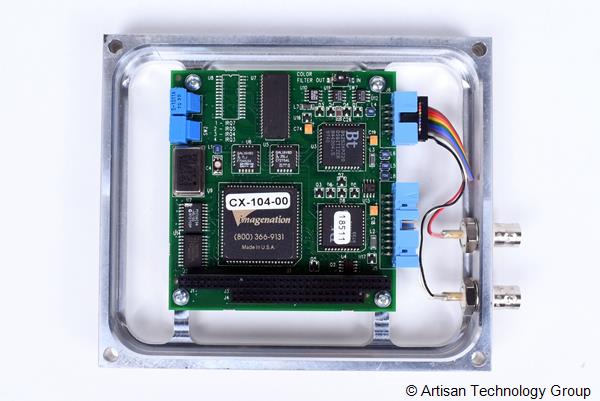

CyberOptics CX104-20 PC/104 Video Frame Grabber Specs
| General |
| Manufacturer | CyberOptics / Imagenation |
| Model | CX104-20 |
| Condition | Used and in Excellent Condition |
| Product Family | CX Series, CX104-20, CX-104-00 |
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for CyberOptics. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
