Features:
- Embedded Switch Technology Supports DLR and Linear Topologies
- Status Display Provides Information Without Software Connection
- Channel Isolation and Highly Integrated HART
- Single Channel SIL 3/PLe Rated
- Faster Safety Response Reaction Time
The Allen-Bradley Compact 5000 I/O System offers a wide variety
of standard and safety modules with dual gigabit (Gb)
embedded Ethernet ports for Device Level Ring (DLR)
and Linear topologies. This flexibility allows more
customization for applications demanding high performance
and speed. The system expands performance capabilities
within the Logix platform in a compact design, and
functions as local I/O modules in a CompactLogix 5380,
Compact GuardLogix
5380, or CompactLogix system.
Through the Compact 5000 EtherNet/IP adapter, it
is the ideal distributed I/O solution for CompactLogix
5380, Compact GuardLogix 5380, CompactLogix,
ControlLogix
5580, and GuardLogix 5580 controllers.
The I/O modules require a removable terminal block (RTB) to connect field-side wiring. RTBs are not included with the I/O modules.
The 5069-RTB18-SCREW Allen-Bradley Removable Terminal Block may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Functions
Screw-type terminal block kit with 18 pins providing four Form C (SPDT) outputs for wiring power and I/O connections to CompactLogix 5069 controllers and Compact 5000 I/O modules. Supports output voltages from 5 to 264 Volts AC or 5 to 125 Volts DC with maximum current rating of 10 A. Features removable design for open-style installation without enclosure, accommodating wire gauges up to 3.5 mm insulated diameter with 0.4 N·m screw torque specification. Power dissipation rated at 2.6 Watts for process control and distributed I/O applications accessible via EtherNet/IP.
This section includes content generated with the assistance of artificial intelligence (AI) tools. AI is used to increase efficiency and provide timely information. Please note that the content may not have been reviewed for accuracy or completeness. Use this information at your own discretion, and verify details independently as needed.

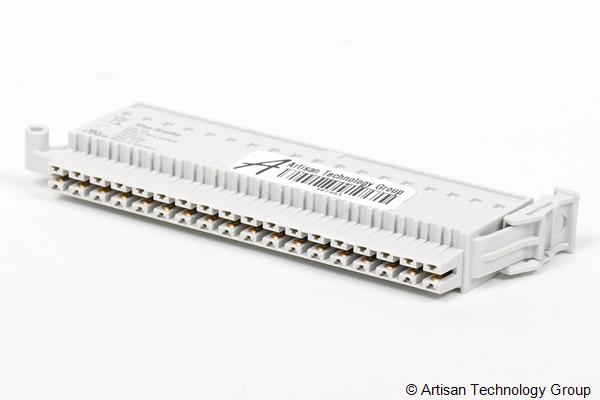

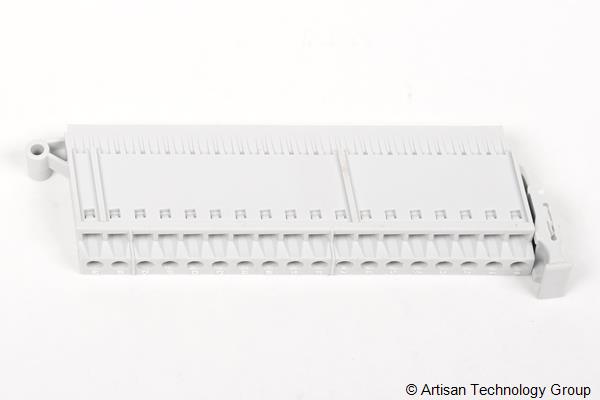

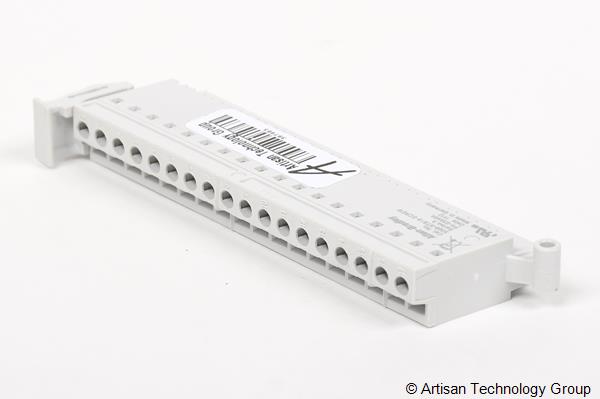

Allen-Bradley 5069-RTB18-SCREW Removable Terminal Block Specs
| General |
| Manufacturer | Rockwell / Allen-Bradley |
| Model | 5069-RTB18-SCREW |
| Condition | Used and in Excellent Condition |

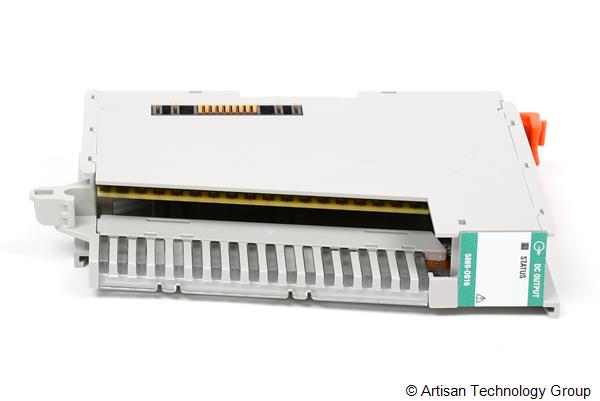

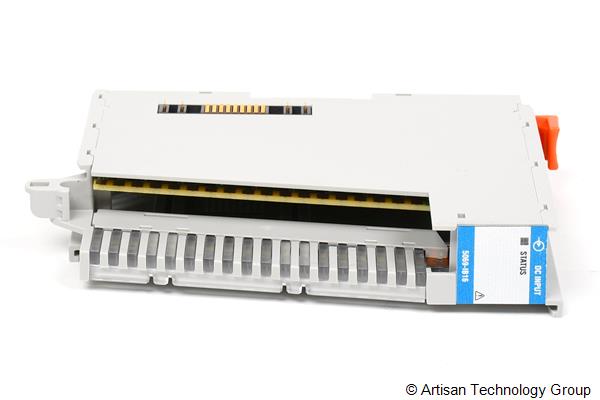

| Product Family | Compact 5000, 5069-IB16, 5069-OB16, 5069-RTB18-SCREW |
