Features:
- 28 VDC Voltage
- (12) Connector Pins
- (11) SMA Connectors
- Mountable

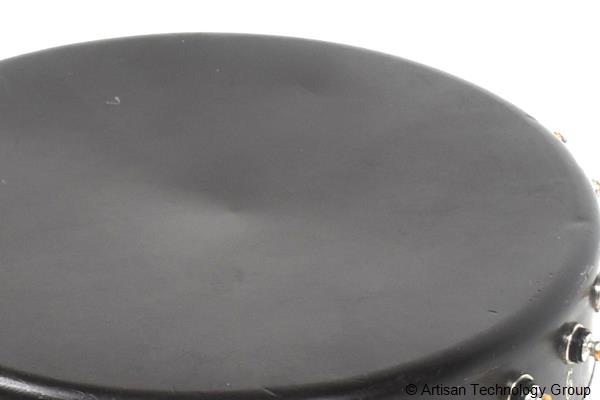

The Dynatech/U-Z N10-413J201LT RF Coaxial Switch features a 28 VDC voltage, (12) connector pins, (11) SMA connectors and the ability to be mounted.
The N10-413J201LT Dynatech/U-Z RF Coaxial Switch may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Functions
Switches radio frequency signals between different channels or paths. Operates in RF systems to route signals while minimizing loss. Connects via coaxial cables to other RF components. Common in telecommunications, radar, and broadcasting applications.
Platforms
Electromechanical RF switch; DC-4 GHz; SPDT configuration; SMA connectors; 50 Ohm impedance; 20 ms switching time; 0.2 dB insertion loss; +28 VDC coil voltage; latching, failsafe actuator; Designed for signal routing in communication systems, test equipment, and aerospace applications.
Specifications
Low-insertion-loss, high-isolation RF coaxial switch designed for signal routing in radio frequency applications. Operates within microwave frequency bands with minimal signal degradation. Features rapid switching time, excellent VSWR characteristics, and high power handling capability. Employs latching technology for maintaining switch position without continuous power. Suitable for automated test equipment, telecommunications infrastructure, radar systems, and satellite communications. Compatible with standard coaxial connectors and control interfaces. Engineered for reliability in continuous duty applications with extended operational lifecycle. Provides consistent RF performance across specified temperature and environmental ranges.
This section includes content generated with the assistance of artificial intelligence (AI) tools. AI is used to increase efficiency and provide timely information. Please note that the content may not have been reviewed for accuracy or completeness. Use this information at your own discretion, and verify details independently as needed.
Dynatech/U-Z N10-413J201LT RF Coaxial Switch Specs
| General |
| Manufacturers | Dynatech/U-Z |
| Model | N10-413J201LT |
| Condition | Used and in Good Condition |
| Product Family | N10-413J201LT |
