Features:
- Dual Core i7 or i5 Processor up to 2.53GHz
- Up to 8 GB (1066MHz) of Soldered DDR3 Memory with ECC
- Up to 16GB Soldered NAND Flash
The CT12 Series High Performance Dual Core 6U Single Board Computer is a single slot 6U Compact PCI SBC with up to an Intel Core i7 plus QM57 peripheral controller hub. The assembly is fully compliant to the PICMG specifications.
The CT12 is able to host one Dual Core processor with a core clock of up to 2.53 GHz. The assembly can accept higher performance processor variants.
Four banks of DDR3 SDRAM components are provided on the CT12 for a maximum of 8 GBs of main memory with ECC. The module also hosts up to 16 GB soldered NAND Flash through an IDE interface and may be provisioned with higher Flash capacities when required for specific applications. The onboard NAND flash is an ideal storage media to keep application specific data.
The BIOS Flash is optionally backed with a second Flash device in order to recover the BIOS in the event the primary BIOS is corrupted. The Flash device is large enough to optionally host additional pre-boot applications, for example Built-In Test (BIT).
For telecom applications, the CT12 is equipped with IPMI 2.0 functionality.
Supported operating systems for the CT12 include Linux and Microsoft Windows as well as VxWorks.
The CT12 is manufactured in an extended operating temperature version (-40°C to +75°C). The upper limit of the temperature range depends on the selected processor version and the optional population with PMC, XMC mezzanines or a SATA hard drive.
The CT12 is designed for use in a broad range of applications such as telecom/communications, industrial control and automation, test, and measurement systems, as well as server blade applications. This, combined with a customer specific assembly service, provides optimized price and performance levels.

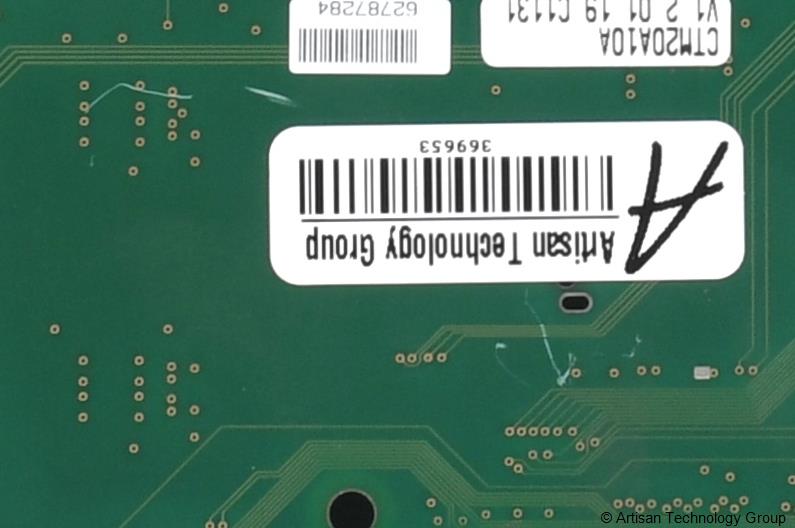

The GE CTM20A10A 6U I/O Transition Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for GE. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
