Asus PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip
Write a reviewStock # 87659-1
Currently out of stock
Looking for one or multiple units? We'll check our supplier network for availability, condition, price and lead time for you.
Not in Stock
Get Your Personalized Quote Today!
Send us your information to receive a customized quote from our dedicated customer service team.
Item details
| Part Number | PFM-540I |
|---|---|
| Availability | Not in Stock |
| Location | Champaign, IL USAships worldwide |
| Stock # | 87659-1 |
| Ship Weight | 1 lbs /ea |
| Condition | Used and in Excellent Condition |
| Inspection | Before every shipment |
| Warranty | 1-Year Warranty with 30-Day Return Guarantee |
Description
Configuration:
• Processor: 500 MHz AMD Geode LX800
• Memory: 256 MB DDR333 SODIMM

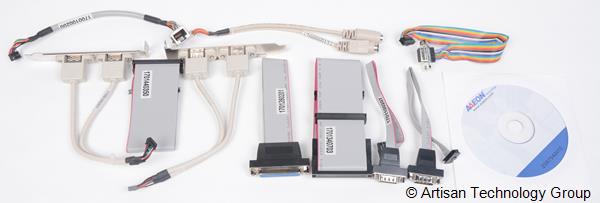

Included Accessories:
• (1) 1701440350 44-Pin IDE Cable
• (2) 1701100207 RS-232 Cables
• (1) 1700100200 Ethernet Cable
• (1) 1701260201 Parallel Port Cable
• (1) 1700060152 Keyboard/Mouse Cable
• (2) 1709100201 USB Cables
• (1) 1701340703 Floppy Disk Drive Cable
• (1) 2087540I10 Drivers Disk
View Photo of included accessories.
• Processor: 500 MHz AMD Geode LX800
• Memory: 256 MB DDR333 SODIMM
Included Accessories:
• (1) 1701440350 44-Pin IDE Cable
• (2) 1701100207 RS-232 Cables
• (1) 1700100200 Ethernet Cable
• (1) 1701260201 Parallel Port Cable
• (1) 1700060152 Keyboard/Mouse Cable
• (2) 1709100201 USB Cables
• (1) 1701340703 Floppy Disk Drive Cable
• (1) 2087540I10 Drivers Disk
View Photo of included accessories.
Stacey Z.Artisan product specialist
Click anywhere or press Esc to close
1 / 52 / 53 / 54 / 55 / 5Did you know?
Sell your EquipmentThat idle equipment in your warehouse could be cash.
Government & Enterprise Buyers: volume pricing, POs and government purchasing.
Government SalesWrite a Review
Share your experience with this item to help other buyers.
Request More Information
Have a question about this item? Send us a message and a specialist will follow up.
Thank You!
We have received your InstraView Request and will be contacting you shortly.
More Information
Asus / Aaeon PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip Overview
Features:
- On-Board AMD Geode LX Processor
- 10/100Base-TX Ethernet
- 18/24-Bit TTL LCD Support
- Low Power Consumption
The Asus / Aaeon PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip adopts an AMD Geode LX 800 processor that is more cost effective compared to other PC/104 CPU modules on the market. This model supports DDR 333 SODIMM Memory up to 1GB (DDR 400 optional). Although PFM-540I Rev.B is a small board, it offers the full functions customers demand. The chipset of PFM-540I Rev.B deploys AMD LX 800 and CS5536 that makes this board achieve high performance. It features one 10/100Base-TX Ethernet port, four USB 2.0 ports, four serial ports, one parallel port, watchdog timer and includes PC/104 expansion. PFM-540I Rev.B is a RoHS compliant product that is fanless and fully supports ISA and CFD.
The Asus PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
PC/104 Module with AMD Geode LX Processor with Intel LAN Chip Price & Specs
Asus / Aaeon PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip Manuals, Datasheets, Drivers, Links
Asus / Aaeon PFM-540I PC/104 Module with AMD Geode LX Processor with Intel LAN Chip Specs
| General | |
|---|---|
| Manufacturer | Asus |
| Model | PFM-540I |
| Condition | Used and in Excellent Condition |
| Product Family | PFM-540I, PFM 540I |
