Features:
- 50 MHz, 5 ns, 16 V p-p (into 50 Ohm)
- Full Pulse Capability
- Small Size
- Programmable-IB Keys
The Keysight 8112A Pulse Generator is a fully programmable 50 MHz pulse generator with 5 ns transitions and 32 Vpp (into open circuit) max output amplitude. All pulse parameters are variable including delay and double pulse spacing.
Besides the comprehensive trigger modes, external modulation capabilities extend applicability. 3-level signals and upper level, width, period and delay-modulated signals are available. These can be combined with the trigger modes so that complex real-life signals like modulated bursts are simulated easily.
Step response and trigger hysteresis measurements require fast transitions or saw tooth signals as obtained in the 8112A's linear transition mode-either fixed 5 ns or variable from 6.5 ns. The new cosine transitions, also variable from 6.5 ns, mean that band-filtered signals are now just as simple to obtain.
Sensitive devices are protected by programming output limits and the upper level can be controlled by the device supply. Also, constant energy or constant width can be programmed.
Dual channel operation is feasible by operating the 8112A in a master /slave combination.
For really easy operation a green button gives error-free settings. A new softkey operating concept plus detailed error recognition makes the 8112A powerful versatility easy to handle.
The 8112A Keysight Pulse Generator may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Keysight 8112A Pulse Generator Specs
| General |
| Manufacturer | Keysight / Agilent / HP |
| Model | 8112A |

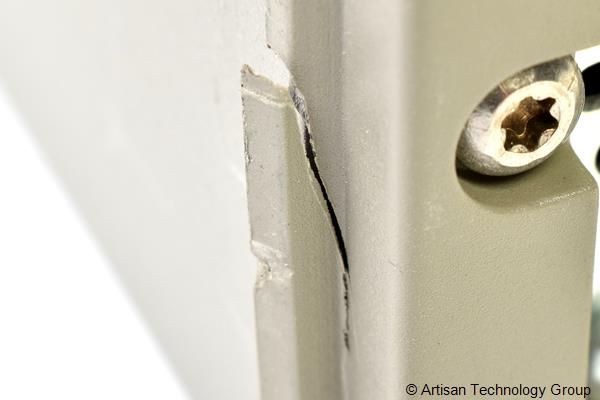

| Condition | Used and in Good Condition |
| Product Family | 8112A, 8112, 8112_A, 8112-A, 8112 A |
