Features:
- Ideally Suited for Many Clean Fluids
- Self-Priming
- Quiet and Low Vibration and Pulsation Characteristics
- Flow Remains Constant Over the Entire Pressure Range
The Procon Series 1 pumps have the protection of an integral inlet strainer. The standard strainer is a 100 mesh wire screen. It traps particles that can cause serious damage to the pump. The strainer is equipped with a removable cap to allow periodic cleaning, every 4 months under normal conditions (more frequently with hard or turbid water). The clamp-on mounting style is shown in the photo; bolt-on mounting is also available.
PROCON's Series 2 pumps have the same features as the Series 1 except they do not have the integral strainer. Series 1, 2 and 3 are available in 11 flow rates: 15, 25, 35, 50, 60, 70, 80, 100, 110, 125 and 140 gallons per hour at up to 250 psi. Clamp-on mounting style is shown in the photo; bolt-on mounting is also available.

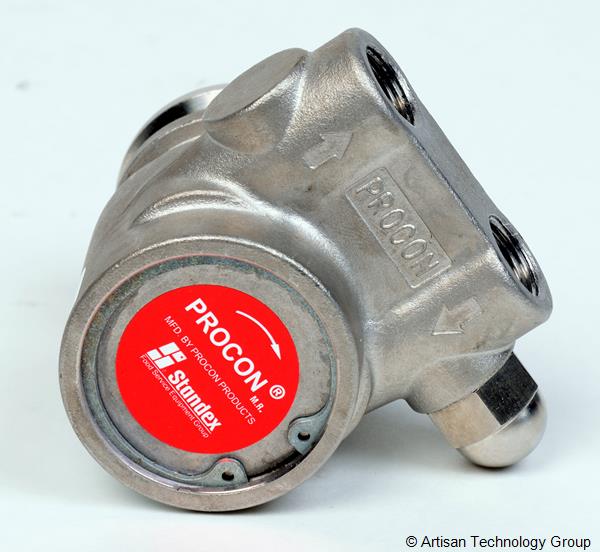

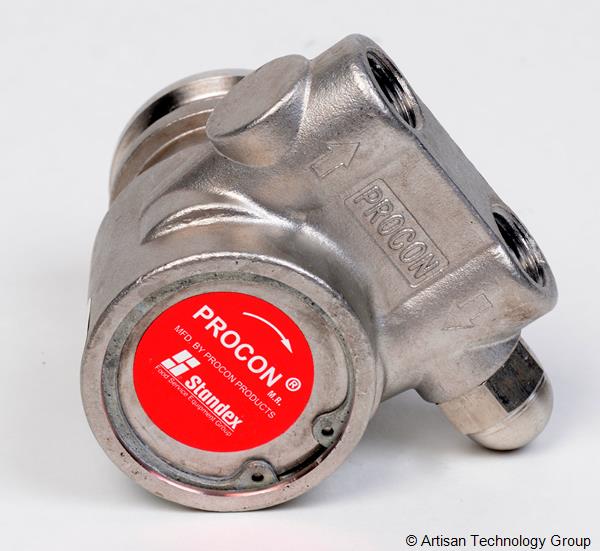

PROCON's Series 3 pumps boast all the unique design features of other PROCON pumps. Because the pump body and all the internal metal parts are made from stainless steel, the Series 3 is well suited for pumping a variety of fluids not suitable with brass. Clamp-on mounting style is shown in the photo; bolt-on mounting is also available.
The Series 1 Procon Rotary Vane Pump may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
Procon Series 1 Rotary Vane Pump Specs
|
| Body Material | Type 303 Brass
|
| Capacity | 15-140 GPH
|
| Nominal Speed | 1725 RPM
|
| Max. Discharge Pressure | 250 psi
|
| Typical Horsepower Required | .25 to .50 HP
|
| Maximum Discharge Pressure | 250 PSI
|
| Rotation (Viewed from Nameplate End) | Clockwise
|
| Port Size | 3/8 NPT Inlet and Outlet
|
| Self-Priming (Water) | 6 ft Maximum Lift
|
| General |
| Manufacturer | Procon |
| Model | Series 1 |
| Condition | Used and in Excellent Condition |
| Product Family | Series 1, Series1, Series One, Brass Rotary Vane Pump, 101R100R12BC099, Series 2, Series 3, Series2, Series3, Series-2, Series-3 |
