Features:
- Single Slot, C-Size, VXI Module
- 8-Channel 16-Bit A/D Card
- Simultaneous Sample & Hold
- 3x Oversampling
- Anti-Alias Circuitry

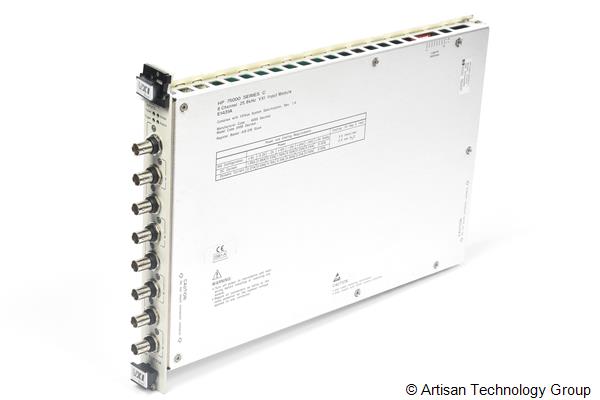

The E1431A simplifies system integration by implementing the entire measurement front end - all in a single-slot C-sized VXI module. It's smaller, more reliable, and less expensive than multi-module solutions.
Features:
•Individually Programmable Gains
•Input Frequency Range: dc to 25.6 kHz
•FIFO Memory Size: 8 x 16kSamples
•Differential or Grounded Amplifier Inputs
•AC or DC Coupling
•Offset DAQ for each Channel
•Sample and Hold w/3x Oversampling A/D Conversion
•Analog Anti-Alias Filters
•Programmable Digital Filters and Decimation
The E1431A ensures data integrity. With full-scale ranges from 5 mVolts to 10 Volts in 1, 2, 5 steps, you can look at a wide variety of signals. Each range has 2dB of headroom to help prevent overloads. If an overload does occur, built-in overload detection notifies you, to prevent bad data from contaminating your measurement.
Input channels can either be grounded, or differential to remove contaminating common-mode signals from power lines. Tight cross-channel phase and time-delay accuracy is maintained with simultaneous sample and hold amplifiers.
Complicated calibration with an external source is not required to achieve specified performance. The E1431A has an internal calibrator that guarantees measurement accuracy.
The HP E1431A 8-Channel A/D VXI Module may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
