HP E1432-61602

8-Channel Voltage Breakout Box
Write review Stock #: 52693-22
Price Contact Us
Part Number E1432-61602
In Stock 1
Location Illinois, USA
Ship Weight 15 lbs /ea
Condition Used and in Good Condition

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

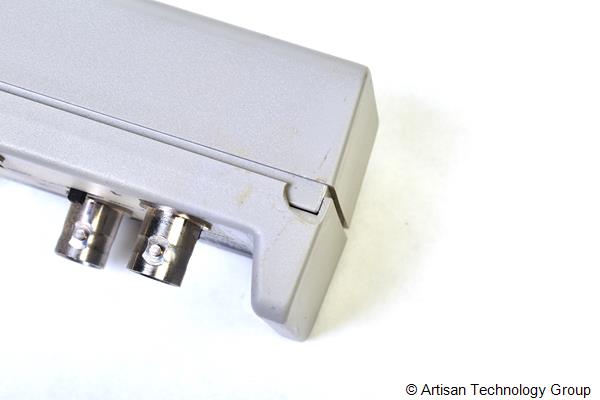

The breakout box cover is chipped; however, this will not prevent it from functioning properly.

View Representative Photo of chipped breakout box.

HP E1432-61602 Voltage-type Break Out Box
In this type of Break Out Box the signal is sent straight through to the sub-miniature "D" connectors on the HP E1432A/33A.

Break Out Box Grounding
Each connector on the HP E1432-61600 and HP E1432-61602 Break Out Box has a small manual switch next to it. When this switch is in the "GND" position the outer shell of the connector is grounded to the chassis ground of the VXI mainframe. When it is in the "DIFF" position it is not grounded to the mainframe and will float if not grounded elsewhere in the system (such as at the sensor). The connector shell should not be allowed to float: if the switch is in the "DIFF" position the shell should be grounded elsewhere in the system.

Expedited Shipping Available

Expedited
Shipping Available

Expert Artisan Support

Expert
Artisan Support

1-Year Artisan Limited Warranty

1-year
Artisan Limited Warranty

Sell your equipment
Close ×
More Information
Features:
  • 1-Slot, C-Size VXI Card
  • 4-16 Channel 51.2 kSa/s A/D
  • Onboard Digital Signal Processing
The E1432A 16 Channel 51.2 kSa/s Digitizer plus DSP is a C-size VXI module. "51.2 kSa/s" refers to the maximum sample rate of 51,200 samples per second, per channel.

The E1432A may contain up to four 4-channel input assemblies so that the module may have a total of up to 16 inputs.

This module integrates transducer signal conditions, anti-alias protection, digitization and high speed measurement computation in a single slot VXI card. Onboard digital signal processing and up to 32 MB of RAM maximizes total system performance and flexibility.
The HP E1432-61602 8-Channel Voltage Breakout Box may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

HP E1432-61602 8-Channel Voltage Breakout Box Manuals, Datasheets, Drivers, Links

HP E1432-61602 8-Channel Voltage Breakout Box Specs

General
ManufacturerKeysight / Agilent / HP
ModelE1432-61602
ConditionUsed and in Good Condition
Product FamilyE1432A, E1432-A, E-1432-A, E-1432A
