Features:
- 1-Slot, VMEbus Compatible Module
- 3.5" Floppy Disk Module
RadiSys EXP-FDM
The RadiSys EXP-FDM is a single-slot VME floppy disk module. The 3.5" drive is intended for use in a single VMEbus card slot. The 3.5" EXP-FDM is driven by connecting a data cable to the unit by way of a 34 pin header on the product's front panel. The intent is to get data from an adjacent EXM-MX unit. Power for the unit comes through this same 34 pin header. The disk drive itself is cabled to the main board through a 26 pin flex circuit cable. The main board contains no P1 or P2 connector and is shorter than standard VME board products. This is to ensure use in a VME card slot that contains a RadiSys subplane, ie. BP-6 product, which would cause mechanical interference. EPC4, EPC5, EPC8, or EXP-MC will take the EXM-MX card to interface with the EXP-FDM.
RadiSys EXP-MS/MX

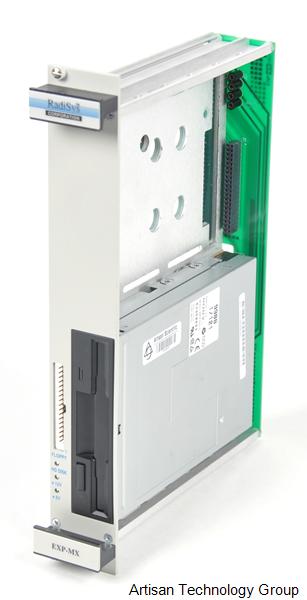

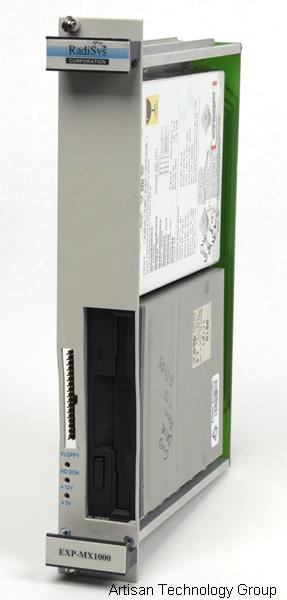

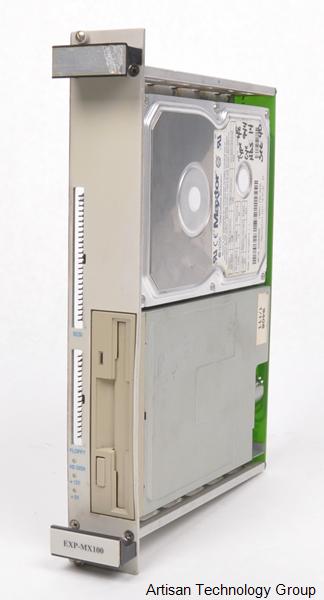

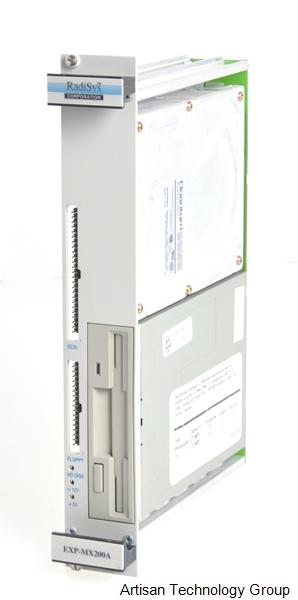

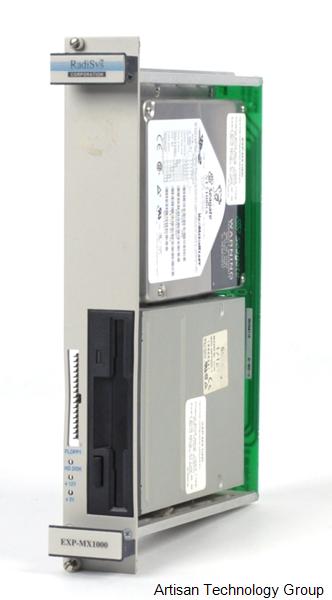

The EXP-MS/MX mass storage modules are 6U (VMEbus-size) modules that plug into the EXM expansion interface of a RadiSys VMEbus embedded PC. The EXPMS/MX mass storage module contains a disk controller board, a hard disk, and a 1.44 MB floppy diskette drive. Depending on the capacity and physical size of the internal hard disk, an EXP-MS/MX module occupies either two or three VMEbus slots. Front-panel connectors are provided for adding an external SCSI hard disk and either a 3.5" or a 5.25" external floppy drive. There are also three indicator LEDs. Two indicate that the VMEbus +5V and +12V supplies are available (the +12V supply is needed for the hard disk drive). The third LED is lit whenever a hard disk access is underway.
All EXP-MS/MX models are fully MS-DOS compatible, as is the external SCSI port. The internal hard disk in an EXP-MS40 uses a SCSI interface. The EXP-MX series uses a faster IDE (Integrated Device Electronics) interface.
The EXP-MC RadiSys EXM Carrier may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc
RadiSys EXP-MC EXM Carrier Specs
| General |
| Manufacturer | RadiSys |
| Model | EXP-MC |
| Condition | Used and in Excellent Condition |
| Product Family | EXP-MX250, EXP-MX200A, EXP-MX100, EXP-AM, EXP-FDM, EXP MX250, EXP MX200A, EXP MX100, EXP AM, EXP FDM, EXPMX250, EXPMX200A, EXPMX100, EXPAM, EXPFDM, EXP-BP6, EXPBP6, EXP BP6, EXP-MX1000, EXP MX1000, EXPMX1000 |
