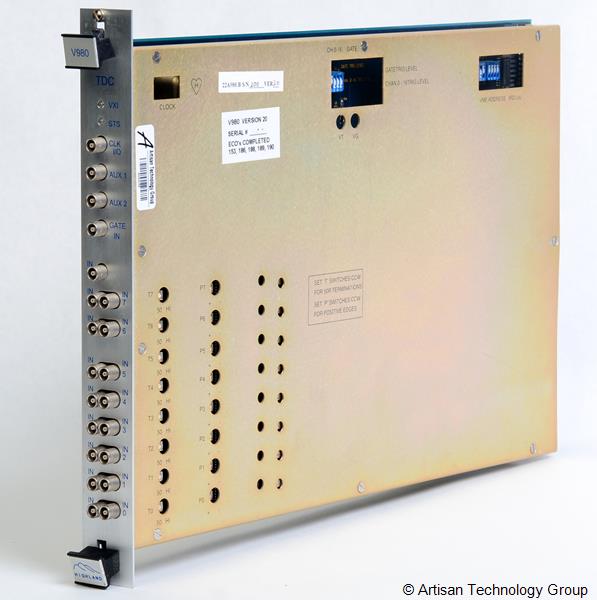

V980 Highland Technology 16-Channel Time-to-Digital Converter
Write a reviewStock # 62423-1
1 In StockAvailable today · ships from Champaign, IL
Contact Us for pricing
Get Your Personalized Quote Today!
Send us your information to receive a customized quote from our dedicated customer service team.
Item details
| Part Number | V980 |
|---|---|
| In Stock | 1 |
| Available | Today |
| Location | Champaign, IL USAships worldwide |
| Stock # | 62423-1 |
| Ship Weight | 15 lbs /ea |
| Condition | Used and in Excellent Condition |
| Inspection | Before every shipment |
| Warranty | 1-Year Warranty with 30-Day Return Guarantee |
Description
Front Panel Connectors: SMB
Stacey Z.Artisan product specialist
Click anywhere or press Esc to close
Brands:
Did you know?
Sell your EquipmentThat idle equipment in your warehouse could be cash.
Government & Enterprise Buyers: volume pricing, POs and government purchasing.
Government SalesWrite a Review
Share your experience with this item to help other buyers.
Make an Offer
Submit Your Offer, We’re Here to Assist! If we find your offer reasonable our dedicated customer service team will get back to you.
Request More Information
Have a question about this item? Send us a message and a specialist will follow up.
Thank You!
We have received your InstraView Request and will be contacting you shortly.
More Information
Highland Technology V980 16-Channel Time-to-Digital Converter Overview
Features:
- 16-Channel, 48-Bit, 48-Picosecond Resolution TDC
- Adjustable Trigger Levels and Edge Polarity
- Fast Readout Available 200 ns After Events
- Jitter Typically Below 40ps RMS
- Ultrastable, Ovenized Quartz Crystal Timebase
- Optional Custom Internal Microengine
The V980 is a 16-channel time-to-digital converter used to record the time of occurrence of sixteen independent electrical pulse inputs, each measured relative to a single, common reference input. Each TDC input channel can time its event "hit" with 48.82-picosecond resolution and 48-bit dynamic range.
The module has provisions for adjustable input logic levels and selectable input edge polarity.
The V980 employs a highly linear interpolation technique, which requires a minimum of adjustments. Data is available within 200 ns of the completion of the measured time intervals, and the modules may be cleared and rearmed in less than one microsecond. All features are switch selectable.
The module has provisions for adjustable input logic levels and selectable input edge polarity.
The V980 employs a highly linear interpolation technique, which requires a minimum of adjustments. Data is available within 200 ns of the completion of the measured time intervals, and the modules may be cleared and rearmed in less than one microsecond. All features are switch selectable.
The Highland Technology V980 16-Channel Time-to-Digital Converter may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
16-Channel Time-to-Digital Converter Price & Specs
Highland Technology V980 16-Channel Time-to-Digital Converter Manuals, Datasheets, Drivers, Links
Highland Technology V980 16-Channel Time-to-Digital Converter Specs
| Specifications | |
|---|---|
| Conformance | ANSI/IEEE 1014-1987 VMEbus specification |
| Device Type | Register-based slave: A16:D16:D08(EO) |
| Packaging | Single-width, C-size VXI module |
| Outputs | AUX1 normally indicates module armed and ready to accept an event |
| Resolution | 48.828125ps, equivalent to 20.48 GHz clock |
| Range | 48 bits (+-6871 seconds) for bipolar mode |
| Timebase | Internal ovenized oscillator. Accuracy is 0.01ppm/deg C; aging less than 1ppm/year. Internal phase-lock loop allows utilization of an external 10 MHz timebase |
| Indicators | LEDs indicate VME access and acquisition/readout mode status. |
| Connectors | Standard: SMB; Optional: LEMO. |
| General | |
| Manufacturer | Highland Technology |
| Model | V980 |
| Condition | Used and in Excellent Condition |
| Product Family | V980, V 980, V-980, Highland V980, Highland V 980, Highland V-980 |
