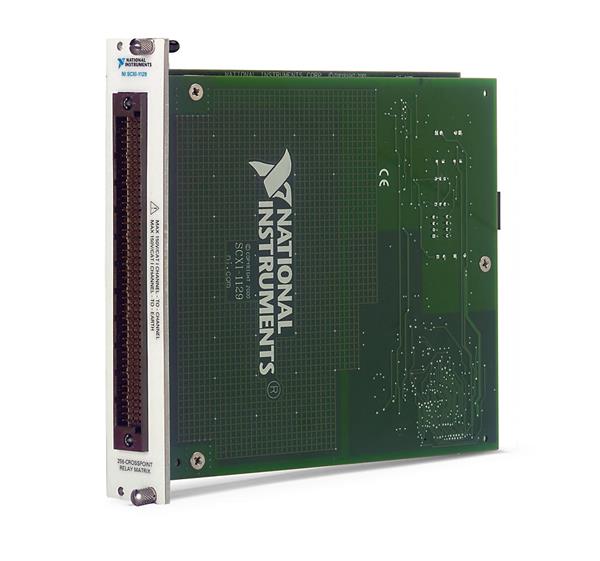

NI SCXI-1129

High-Density Multiconfiguration Matrix

Write your review Stock #: 62813-1

Price	Contact Us
Part Number	SCXI-1129
In Stock	11
Available	Today
Location	Illinois, USA
Ship Weight	3 lbs /ea
Condition	Used and in Excellent Condition
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

Part Number: 186970C-01

Brands:
NI

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

Close ×

More Information

Features:

256 Crosspoint High-Density Matrix Module
Provides Up to a 4×64, 2-Wire Switch Matrix Configuration
Operates as Four 4×16, Two 4×32, Two 8×1 6, 2-Wire Matrixes

The National Instruments SCXI-1129 is a 256 crosspoint high-density matrix module. It provides up to a 4 ×64, 2-wire switch matrix configuration on an SCXI platform. The SCXI-1129 can also operate as four 4 ×16, 2-wire matrixes; two 4 ×32, 2-wire matrixes; or two 8 ×1 6, 2-wire matrixes.

The NI SCXI-1129 High-Density Multiconfiguration Matrix may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

National Instruments SCXI-1129 High-Density Multiconfiguration Matrix Manuals, Datasheets, Drivers, Links

National Instruments SCXI-1129 High-Density Multiconfiguration Matrix Specs

Input Characteristics
Number of 2-wire crosspoints	256
Matrix type	Quad 4 × 16
Common-mode voltage
Channel to channel	150 Vrms or DC
Channel to earth	150 Vrms or DC
Maximum allowed voltage
AC	150 Vrms
DC	150 VDC
Maximum switching capacity
DC	1 A at 30 V
AC	0.25 A at 150 V
Maximum switching power
per crosspoint	37.5 VA, 30 W
Maximum path	< 1 Ω
Transfer Characteristics
Thermal EMF (differential	< 9 µV
Maximum frequency bandwidth	(50 Ω termination)
Worst-case path	10 MHz
Channel to channel crosstalk (50 Ω termination)
10 kHz	<–80 dB
100 kHz	< –68 dB
1 MHz	< –53 dB
Dynamic Characteristics
Maximum operating speed	125 cycles/s
Relay operate time (at 20 °C)	4 ms max
Relay release time (at 20 °C)	4 ms max
Expected life
Mechanical (at 180 cpm)	5 × 107 operations
Electrical at maximum load	1 × 105 operations
Trigger Characteristics
Scanner advanced pulsewidth	1 µs to 64 µs
6-bit programmable
Scanner advanced delay	1 µs to 64 µs
6-bit programmable
External trigger input pulsewidth	200 ns
General
Manufacturer	NI
Model	SCXI-1129
Condition	Used and in Excellent Condition
Product Family	SCXI-1129, SCXI 1129, SCXI1129, 776572-29
