Item: Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load · Stock # 92894-2

Item details
Part Number2681
AvailabilityNot in Stock
LocationChampaign, IL USAships worldwide
Stock #92894-2
Ship Weight15 lbs /ea
ConditionUsed and in Good Condition
Warranty1-Year Warranty with 30-Day Return Guarantee
Description

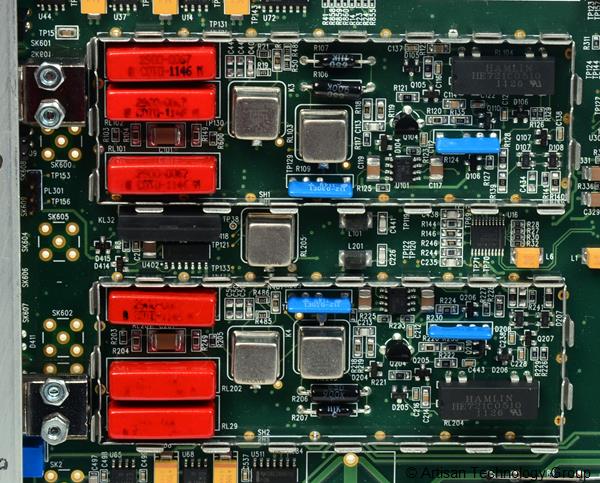

This unit is missing the outer case and RFI Shields.

View Photo of missing RFI Shields.

Part Number: 405403
Jonathan L.Artisan product specialist

Get questions answered fast

Expert help|Tested equipment|Champaign, IL

(217) 352-9330Ask a question

Write a Review

Share your experience with this item to help other buyers.

Rating
By submitting, you agree to our
Customer Review Guidelines

We welcome you to share reviews of products you've purchased.

Please ensure your comments are informative to others by providing specific details about what you liked or disliked.

Kindly refrain from using profanity, obscenities, or making personal attacks. Do not include URLs, phone numbers, or addresses in your review.

Please note that all customer reviews are subject to evaluation before being published on our website. This process typically takes one to five business days.

We reserve the right to decline any review that does not comply with these guidelines.

Request More Information

Have a question about this item? Send us a message and a specialist will follow up.

Item to Inspect: 92894-2 - Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load

More Information

Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load Overview

Features:

  • Meets Requirements for Joint Services Military ATE Programs
  • Perform Precision Timing Measurements with Unsurpassed Resolution
  • Programmable Load
The Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load is a higher-performance, 2-channel, universal 200 MHz timer/counter. The 2681 includes a high-performance universal counter offering five automatic measurement functions: Frequency, Period, Time Interval, Time Interval Delay, and Totalize.

The 2681 counter offers 200 MHz frequency measurements with up to 9 digits of resolution per second. In Time Interval mode, the resolution is 1 ns in single shot and 100 ps in average mode.

By using Time Error Correction (TEC) in combination with traditional recipromatic techniques, measurement time is minimized without any performance compromise.

Programmable measurement Timeout enables system performance to be optimized where input signals are missing.

The trigger level is programmable from -5.1 V to +5.1 V (-51 V to +51 V in x10 mode) with a resolution of 2.5 mV (25 mV in x10 mode).

The 2681 counter offers independent 50 kHz low pass filters on each channel to allow measurements in noisy environments.

The sensitivity of the counter can be reduced to optimize the front end for low-level or low slew rate signals with noise. This feature is also very important for system applications, where noisy signals are encountered. Four standard sensitivity settings are provided.

Nine different modes are provided with the ability to select the arming source between the external arming input and the VXI TTL trigger lines.

The 2681 counter includes a five-watt programmable resistive load. The load is programmable from 1 Ω to 100 k Ω with 0.1 Ω resolution and provides a stable resistance value under all operating conditions. The load has built-in overcurrent, over-voltage, over-power, and over-temperature protection, which opens the load terminals under any fault condition making it difficult to damage the 2461-LWC2 load.

The 2681 load uses software calibration factors stored in non-volatile memory to maintain its accuracy. Softcal is automated and can be performed by connecting the load terminals to a DMM, but it can also be performed manually

The Racal 2681 Frequency/Time Interval Counter + Load may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

Frequency/Time Interval Counter + Load Price & Specs

Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load Manuals, Datasheets, Drivers, Links

Astronics / EADS / Racal 2681 Frequency/Time Interval Counter + Load Specs

General
ManufacturerRacal
Model2681
ConditionUsed and in Good Condition
Product Family2681
