81002FF Keysight

Integrating Sphere

Write your review Stock #: 50503-25

Price	Contact Us
Part Number	81002FF
In Stock	Limited Availability
Location	Illinois, USA
Ship Weight	1 lbs /ea
Condition	Used and in Excellent Condition
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

This 81002FF Integrating Sphere is used and in excellent condition.

The 81002FF Integrating Sphere has an outside diameter of 80mm and is lined with a highly diffusive material. The basic idea of an integrating sphere is that light enters the sphere and is diffused to uniform power density over the interior surface. A small portion of the total power exits the sphere through a small aperture to the detector in the optical head. The sphere is used for several applications:

High power - the sphere creates an attenuation of approximately 41 dB and has a maximum power specification of + 40 dBm (10 W), providing the highest power handling capability available. The size of the sphere allows this high power to be diffused and dissipated very easily.

Brands:
Agilent HP Keysight

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

We typically stock RoHS compliant / CE marked equipment for this Keysight 81002FF

Close ×

More Information

Features:

Interfaces to 815xxx and 816xxx Optical Heads

The 81000 Series Optical Head Connector Adapters are compatible with the 815xxx and 816xxx optical heads.

All 81001xx series connector adpaters with integral D-shape are suitable for 5mm and 3mm heads.

Available connector adapters for the 8162x optical heads are: (Can be used only with 5mm heads)
81003TD - MTP
81003PD - MPX
81003JD - MT-RJ

Available optical head adapters are: (81000xx series are connector adapters (threated) for 5mm heads)

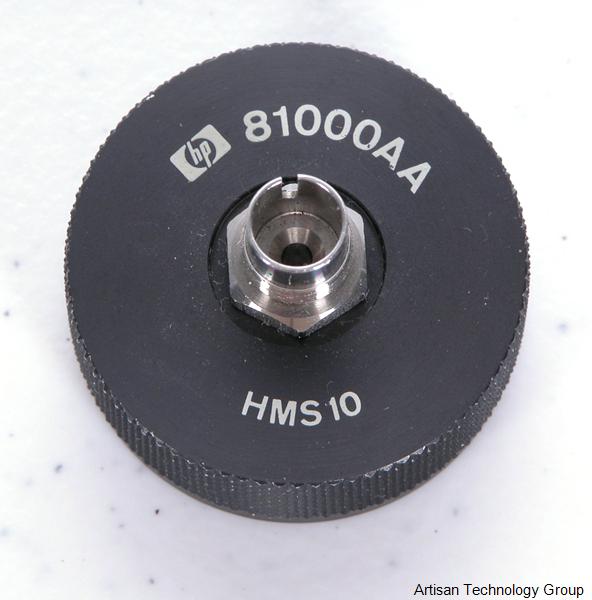

81000AA - Diamond HMS-10
81000FA - FC/PC/SPC/APC
81000GA - NEC D4
81000KA - SC/PC/APC

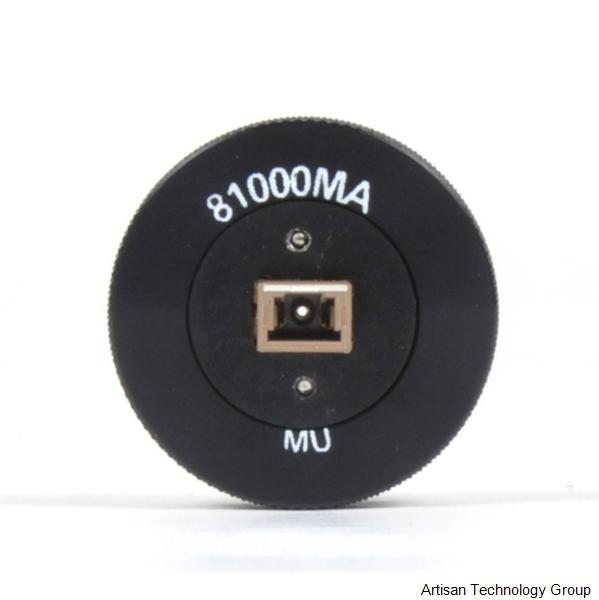

81000MA
81000PA - E-2000

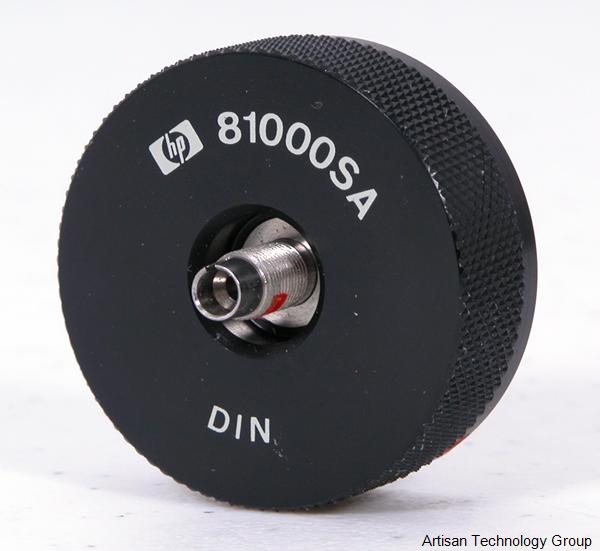

81000SA - DIN 47256/4108

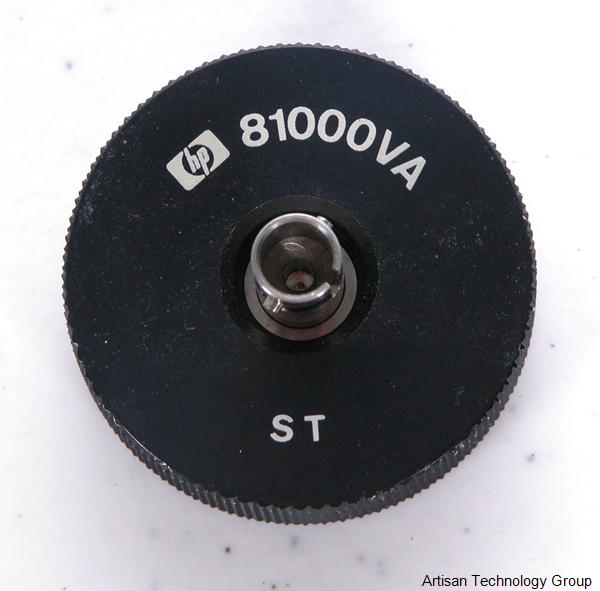

81000VA - ST
81003LA - LC
Agilent Technologies also offers a bare fiber adapter to use with either the 8152x or the 8162x optical heads. The model number is 81000BA. This bare fiber adapter is for fibers with a cladding of 125 micrometer.

There are several optional accessories, which can be ordered depending on your specific needs. Please note that these accessories will work with the 81003xD adapters only if an additional magnetic D ring is used:

81002FF - integrating sphere
81000AF - 1 inch filter holder
81000DF - depolarizing filter

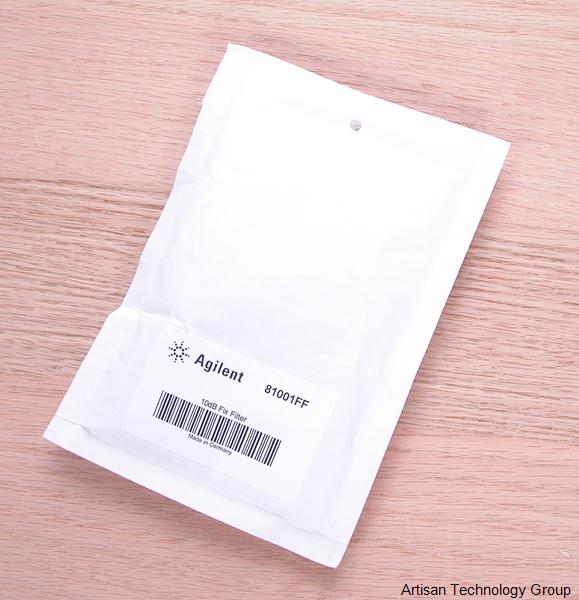

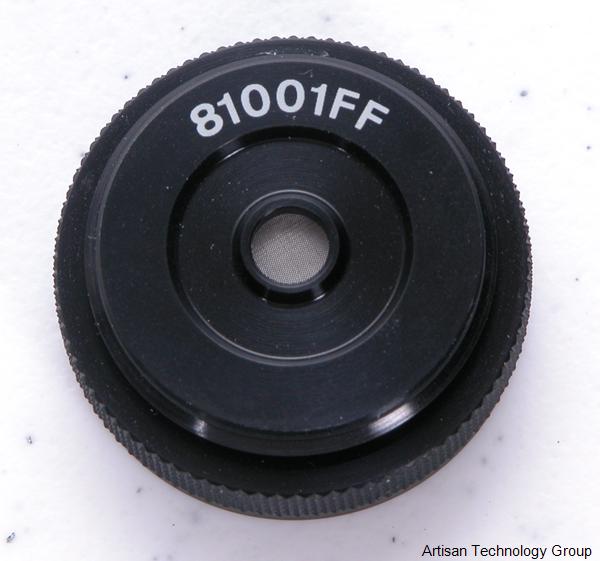

81001FF - 10 dB diffraction filter
81010BL - single mode fiber lens

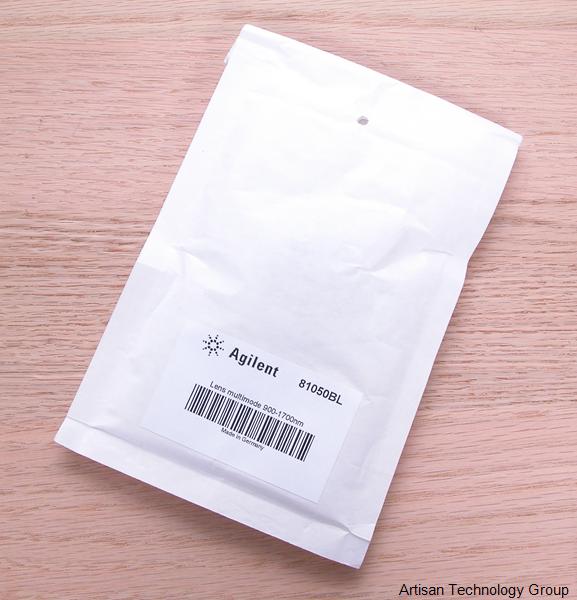

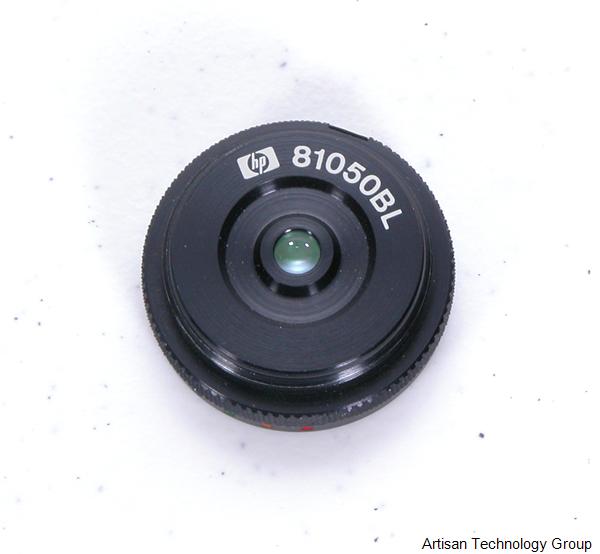

81050BL - multi mode fiber lens

The 81002FF Keysight Integrating Sphere may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

Keysight 81002FF Integrating Sphere Manuals, Datasheets, Drivers, Links

Keysight 81002FF Integrating Sphere Specs

General
Manufacturer	Keysight / Agilent / HP
Model	81002FF
Condition	Used and in Excellent Condition

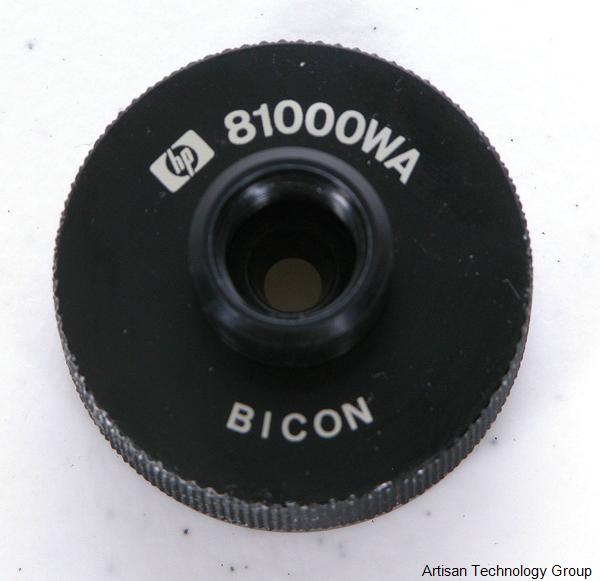

Product Family	81000FA, 81000KA, 81000MA, 81000PA, 81000VA, 81003VA, 81000SA, 81000WA, 81000AA, 81010BL, 81050BL, 81001FA, 81001KA, 81001LA, 81001MA, 81001PA, 81003TD, 81000BT, 81000AF, 81003LA, 81000RA, 81002FF
