16500B Keysight

Logic Analyzer Mainframe

Write your review Stock #: 54037-48

Price	Contact Us
Part Number	16500B
In Stock	5
Available	Today
Location	Illinois, USA
Ship Weight	50 lbs /ea
Condition	Used and in Excellent Condition
Functionality	Tested
Warranty	1-Year Warranty with 30-Day Return Guarantee

Get Your Personalized Quote Today! Send us your information to receive a customized quote from our dedicated customer service team.

	✗

This unit has the 16500L LAN Interface option.

The 16500B is the mainframe of the Hewlett-Packard Logic Analysis System. It offers a modular structure for plug-in cards with a wide range of state, timing, oscilloscope, and pattern generator capabilities. This allows you to configure the 16500B using only the modules you need in order to perform a desired measurement or set of measurements, while giving you the flexibility to change or update them later.

Interfaces:
RS-232-C
In and Out BNC Connections
HP-IB
16501A Connector
LAN-10 Base T Network Connection
High Speed Port

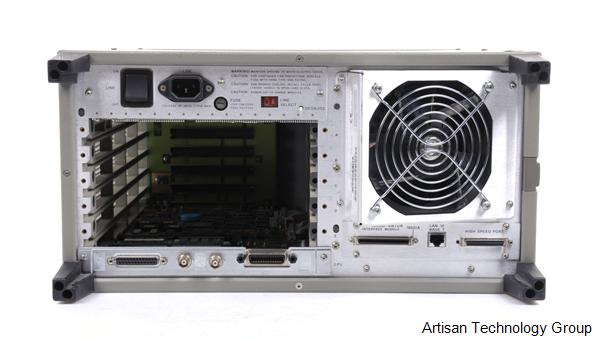

View Photo of rear of unit with the LAN Interface installed.

16500B Datasheet (pdf)
16500B User Guide (pdf)
16500B Users Reference (pdf)
16500B Programmer Guide (pdf)
16500L Datasheet (pdf)
16500 Interface Modules User Guide (pdf)

LAN Interface Part Number: 16500-68724

Brands:
Agilent HP Keysight

Expedited
Shipping Available

Expert
Artisan Support

1-year
Artisan Limited Warranty

Sell your equipment

We typically stock RoHS compliant / CE marked equipment for this Keysight 16500B

Close ×

More Information

Features:

Supports a Wide Range of Measurement Modules
Color Touchscreen
HPIB/GPIB Interface

The Keysight 16500 Series Logic Analyzers can be configured for your debug, characterization, or pass/fail testing applications. Start with this focused system, then expand it as your group's needs grow and evolve. The 16500's five card slots hold state/timing cards, timing cards, pattern generator cards, and digitizing oscilloscope cards . With the use of these cards together, measurements that could not be made with separate instruments are now possible. Other features include 9" Color touch-screen, pop up windows, and optional mouse , also includes two built-in floppy disc drives.

The 16500B Keysight Logic Analyzer Mainframe may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).

no_ai_desc

Keysight 16500B Logic Analyzer Mainframe Manuals, Datasheets, Drivers, Links

Keysight 16500B Logic Analyzer Mainframe Specs

General
Manufacturer	Keysight / Agilent / HP
Model	16500B
Condition	Used and in Excellent Condition
Product Family	16500, 16517-68701, 16500A, 16500B, 16500C, 16510, 16510A, 16510B, 16515A, 16515B, 16516A, 16517A, 16518A, 16520A, 16521A, 16522A, 16530A, 16531A, 16532A, 16533A, 16534A, 16541A, 16540A, 16542A, 16550A, 16555A, 16555D, 16556A, 16555-61606, 16522-61601, 16500-40502, 16500-68750, 16500-68753, 16517-63201, 16517-68701, 16542-61607, 16555-68701, 16555-68705, 16532-61601

We know that questions arise, and that sometimes you need more details or a closer look to make the right decision. That’s why we make it easy for you to reach out directly—so you’re never left wondering.

With our team, you’re just a message away from clarity and confidence. Whether you have a specific question, need a particular image, or want more details, the request form puts you in control. Let us know what you need, and we’ll bring the answers straight to you—no guesswork required!

Request Form

Item to Inspect: 54037-48 - Keysight 16500B Logic Analyzer Mainframe

Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

Artisan Scientific Corporation dba Artisan Technology Group is not affiliated with or a distributor for Keysight. The depiction, description, or sale of products featuring names, trademarks, brands, and logos is for identification and/or reference purposes only and does not indicate any affiliation with or authorization by any rights holder.
