Features:
- Buffered Interface Supplies Drive for a Full Capacity VMEbus Load Configuration
- VMEbus A24,D16 Compatible Master/Slave On Both Sides of the Interface
- Seven-Level Interrupt Support
The PT-VME 901 supplies the electrical and physical means for interconnecting two VMEbus compatible subsystems, designated as Host and Non-Host, together. The Non-Host subsystem
becomes an extension of the Host subsystem under the following guidelines:
1. A device in the Non-Host card-cage can interrupt a device in the Host card-cage or Non-Host card-cage. However, a device in the Host card-cage can only interrupt a device in the Host card-cage.
2. The System Controller Board (bus arbiter) must be located in the Host card-cage and provides the bus arbitration for the Host and Non-Host.
3. The direction of the "Power Fail" (ACFAIL) signal and "System Reset" (SYSRESET) signal is from the Host to the Non-Host, and the direction of the "System Fail" (SYSFAIL) signal is from the Non-Host to the Host.
The PT-VME 901 provides the ability to readily expand a VMEbus based system that may be limited in its card slot or bus drive capacity.
The PT-VME 901 Ribbon VMEbus Expansion Interface Card may still be available for purchase and support from Artisan Technology Group beyond End-Of-Life (EOL) by the manufacturer (OEM).
no_ai_desc

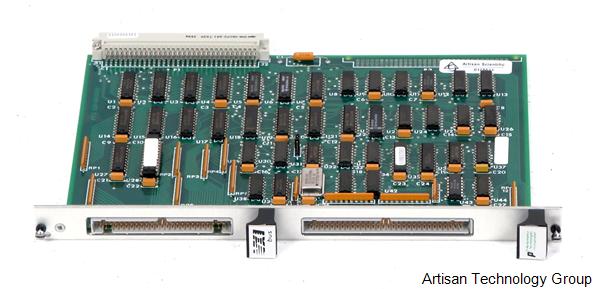

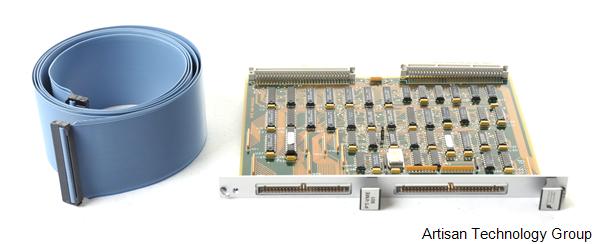

Ribbon PT-VME 901 VMEbus Expansion Interface Card Specs
| General |
| Manufacturer | Ribbon / Performance Technologies |
| Model | PT-VME 901 |
| Condition | Used and in Excellent Condition |
| Product Family | PT-VME 901, PT-VME-901, PT-VME901, PTVME-901, PTVME-901, PTVME901 |
